3

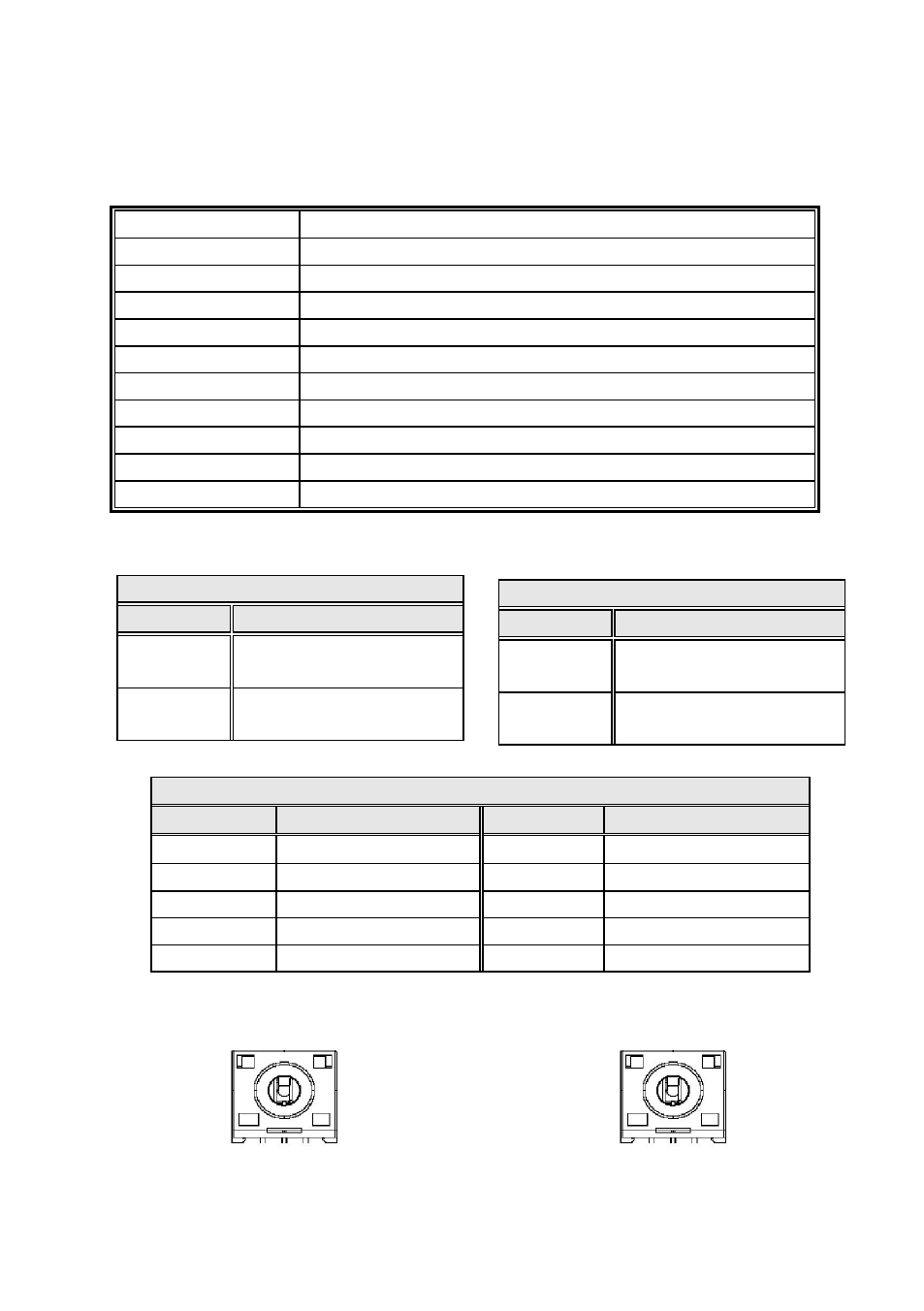

Jumpers setting and Connectors:
LABEL FUNCTION
J1 AVDD Power setting
J2 DVDD Power setting
HDA-1 HDA Connector
MIC Mic in Connector
IN Line in Connector
OUT Front out Connector
REAR Rear out Connector
C-SUB Center / Subwoofer Connector
CDIN1 CD in Connector
FRONT-PANEL Front-Panel Connector
 MIC: Mic in Connector
Color : Pink
 IN: Line in Connector
Color : Blue
J1 : AVDD
PIN NO. DESCRIPTION
1-2
Select AVDD Power
by +5V
2-3
(Default)
Select AVDD Power
by +12V to +5V
J2 : DVDD
PIN NO. DESCRIPTION
1-2
Select DVDD Power
by +1.5V
2-3
(Default)
Select DVDD Power
by +3V
HDA-1: HDA Connector
PIN NO.
DESCRIPTION PIN NO. DESCRIPTION
1 HDA_SYNC 2 HDA_BITCLK
3 HDA_SDOUT 4 HDA_PCBEEP
5 HDA_SDIN 6 HDA_RST#
7 HDA_VCC 8 HDA_GND
9 HDA_+12V 10 HDA_GND
