3.3.6 USB Connectors

CN Label:

USB1, USB2

CN Type:

USB port

CN Location:

See

642H642H642H

Figure 3-20

CN Pinouts:

See

643H643H643H

Table 3-24

The USB connector can be connected to a USB device.

Pin Description

1 USBPWR1

2 USBP0/2-

3 USBP0/2+

4 GND

5 USBPWR1

6 USBP1/3-

7 USBP1/3+

8 GND

Table 3-24: USB Port Pinouts

3.3.7 VGA Connector

CN Label:

3IN1_DSUB1C

CN Type:

15-pin Female

CN Location:

See

644H644H644H

Figure 3-20

CN Pinouts:

See

645H645H645H

Figure 3-25 and

646H646H646H

Table 3-25

The VGA connector connects to a monitor that accepts a standard VGA input.

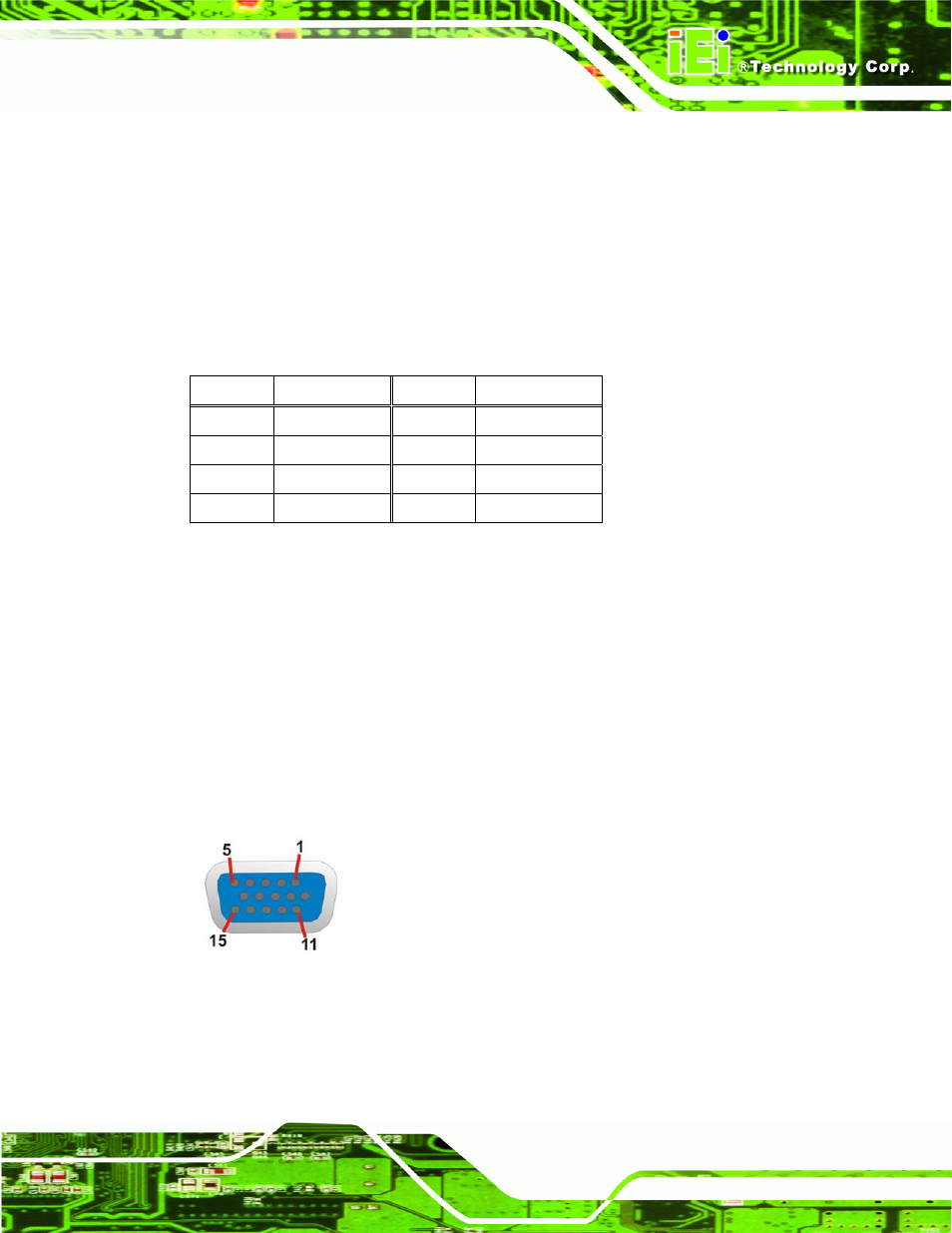

Figure 3-25: VGA Connector
