Page 77

background image

IMB-Q670 Micro-ATX Motherboard

Page 63

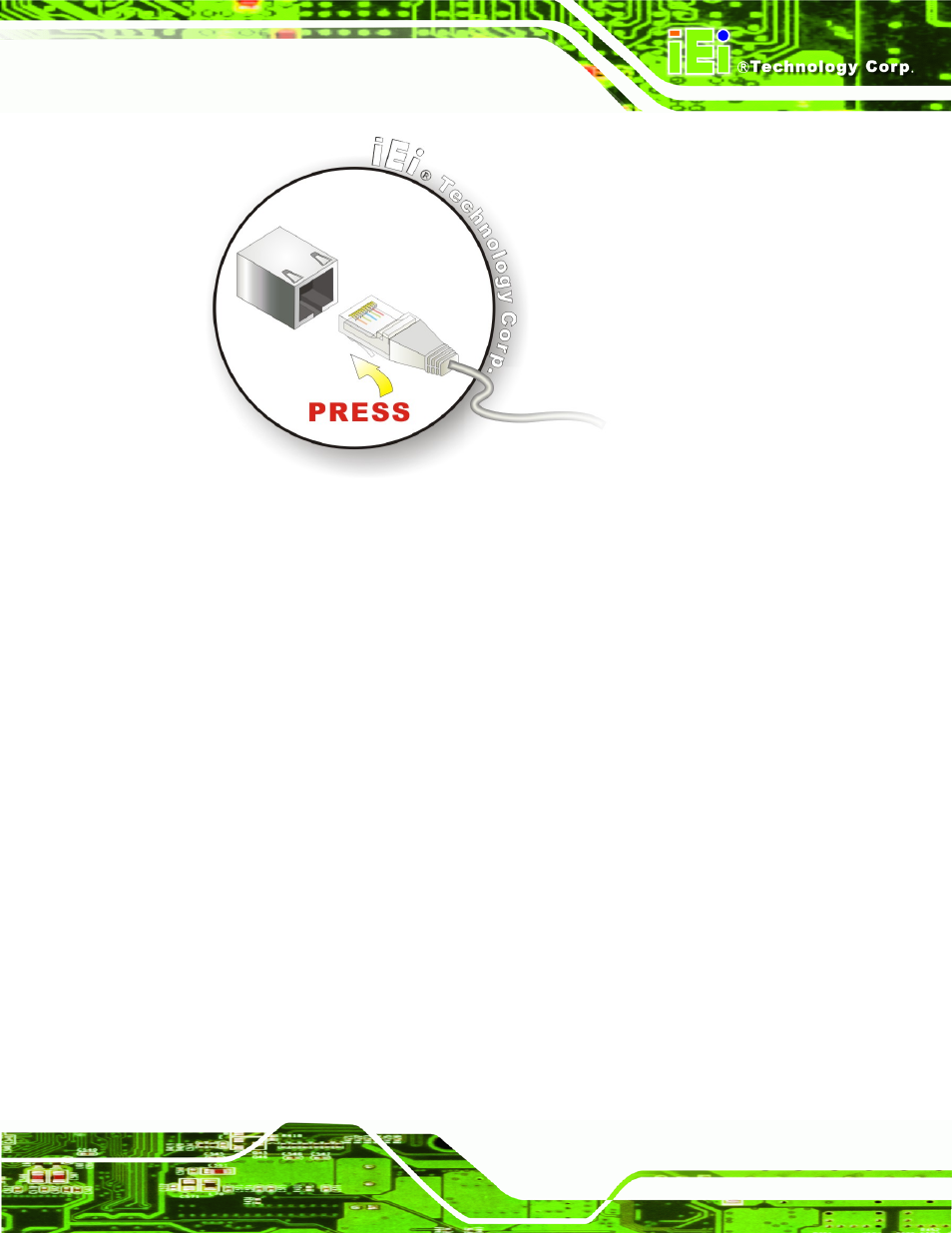

Figure 4-15: LAN Connection

Step 3:

Insert the LAN cable RJ-45 connector. Once aligned, gently insert the LAN

cable RJ-45 connector into the on-board RJ-45 connector.

Step 0:

4.5.3 Parallel Device Connection

The IMB-Q670 has a single female DB-25 connector on the external peripheral interface

panel for parallel devices. Follow the steps below to connect a parallel device to the

IMB-Q670.

Step 1:

Locate the DB-25 connector. The location of the DB-25 connector is shown in

Chapter 3.

Step 2:

Insert the DB-25 connector.

Insert the DB-25 connector of a parallel device

into the DB-25 connector on the external peripheral interface. See Figure 4-16.
