IMB-Q670 Micro-ATX Motherboard

Page 59

CN Type:

3-pin header

CN Location:

See Figure 4-12

CN Pinouts:

See Table 4-6

The Wake-on LAN connector allows the user to enable or disable the Wake-on LAN (WOL)

function.

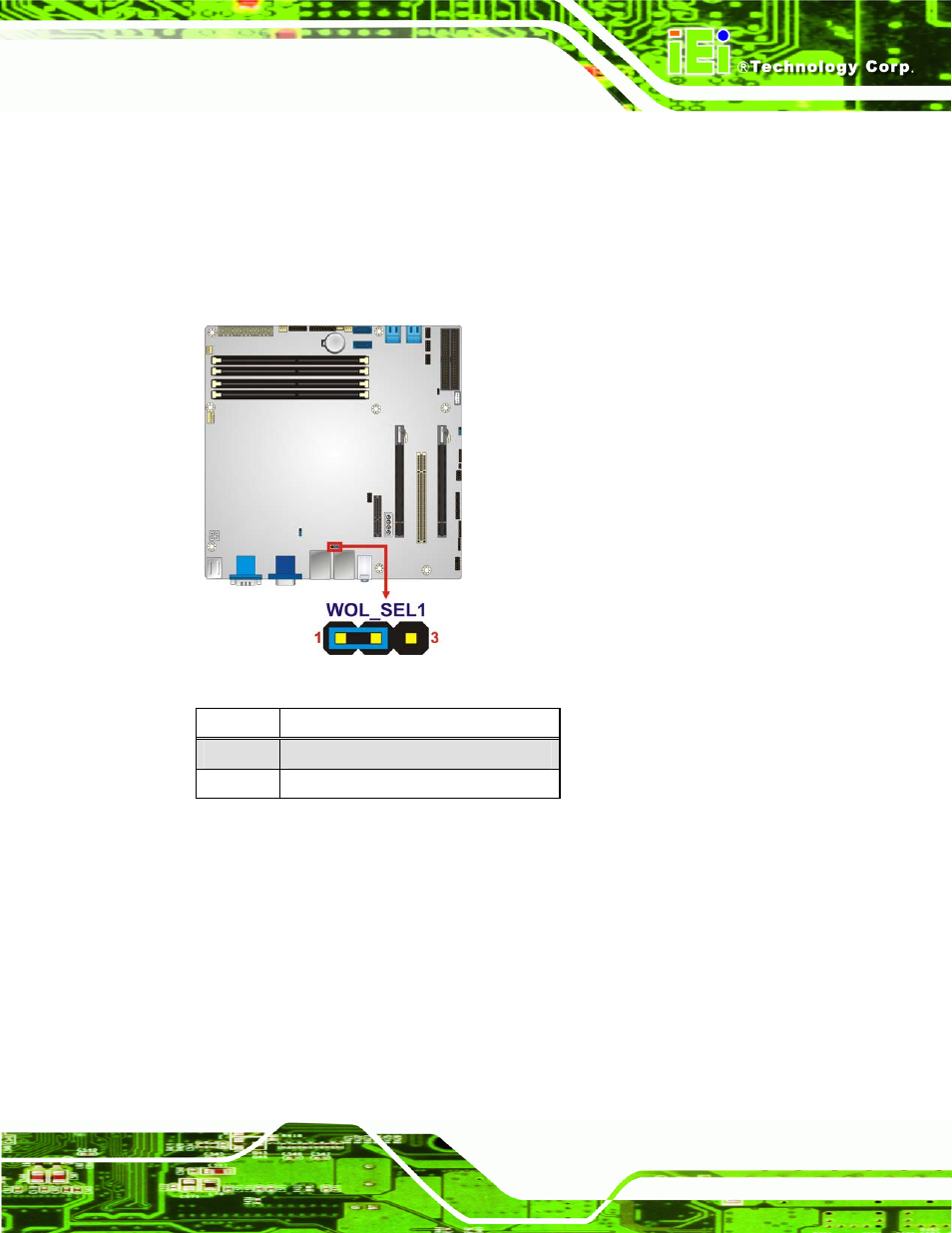

Figure 4-12: Wake-on LAN Connector Pinout Locations

PIN NO.

DESCRIPTION

Short 1-2

Wakeup Enable (Default)

Short 2-3

Disable

Table 4-6: Wake-on LAN Connector Pinouts

4.4 Internal Peripheral Device Connections

This section outlines the installation of peripheral devices to the onboard connectors.

4.4.1 SATA Drive Connection

The IMB-Q670 is shipped with four SATA drive cables. To connect the SATA drives to the

connectors, please follow the steps below.
