The KINO-9453 is equipped with two built-in GbE Ethernet controllers. The controllers can

connect to the LAN through two RJ-45 LAN connectors. There are two LEDs on the

connector indicating the status of LAN. The pin assignments are listed in the following

table:

PIN DESCRIPTION PIN

DESCRIPTION

1 MDX0+

5 MDX2-

2 MDX0-

6 MDX1-

3 MDX1+

7 MDX3+

4 MDX2+

8 MDX3-

Table 4-17: LAN1 and LAN2 Pinouts

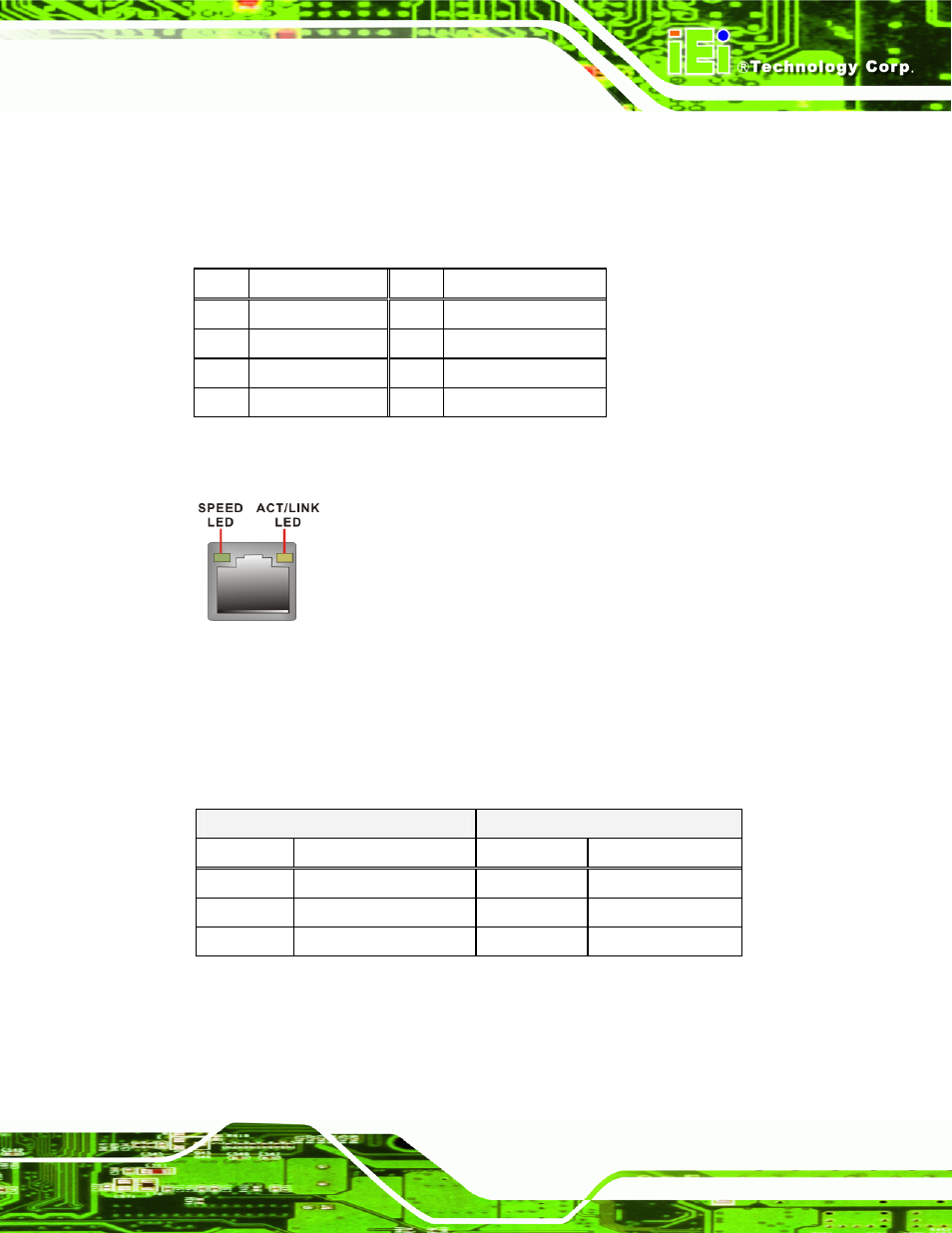

Figure 4-18: RJ-45 Ethernet Connector

The RJ-45 Ethernet connector has two status LEDs, one green and one yellow. The green

LED indicates activity on the port and the yellow LED indicates the port is linked. See

Table 4-18.

SPEED LED

ACT/LINK LED

STATUS DESCRIPTION STATUS DESCRIPTION

OFF

10Mbps connection

OFF

No link

ORANGE 100Mbps

connection YELLOW Linked

GREEN 1Gbps

connection BLINKING

Data

Activity

Table 4-18: RJ-45 Ethernet Connector LEDs
