KINO-9453 Mini-ITX Motherboard

Page 43

CN Location:

See Figure 4-11

CN Pinouts:

See Table 4-12

The two SATA drive connectors are connected to four SATA drives. SATA drives transfer

data at speeds as high as 1.5 Gb/s.

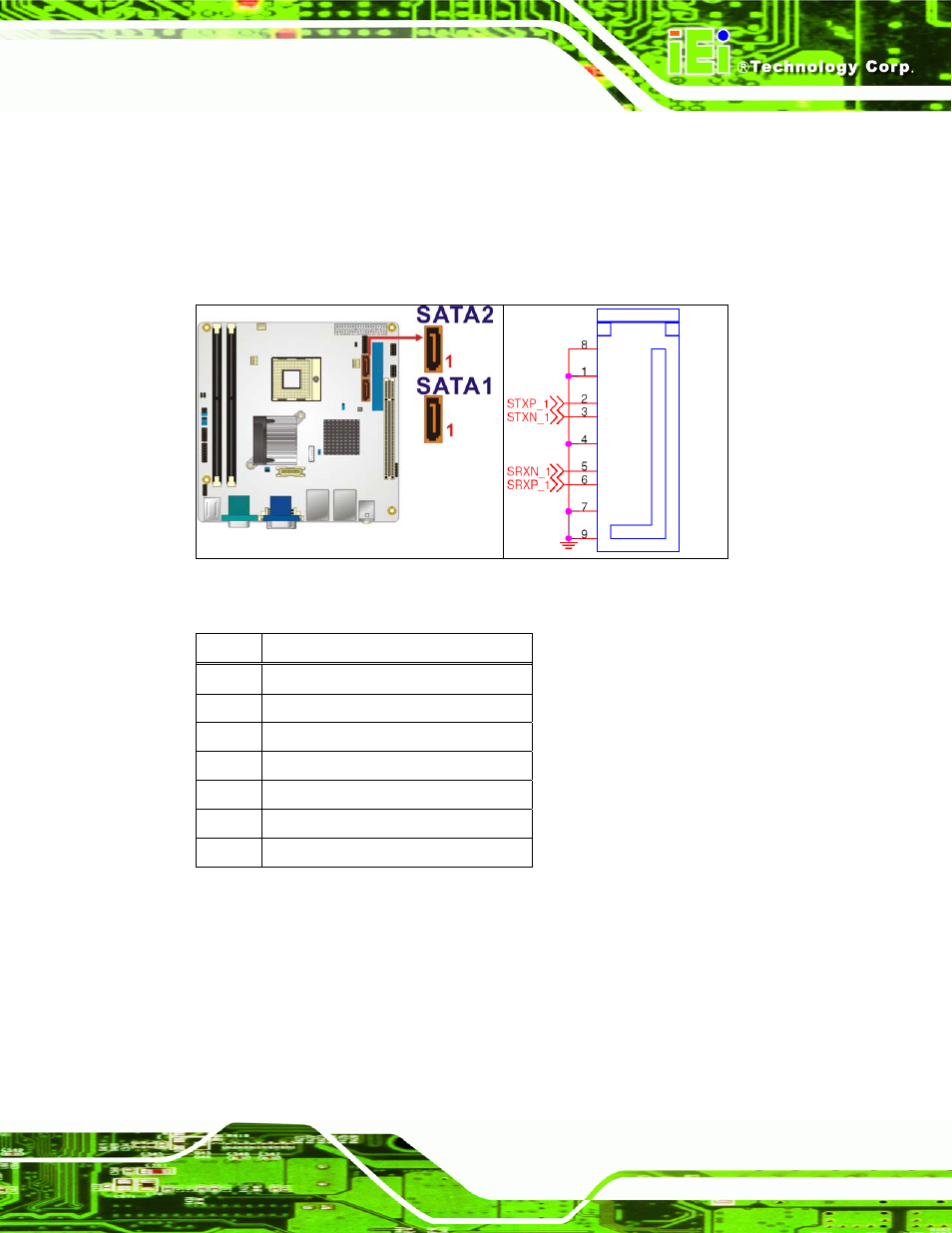

Figure 4-11: SATA Drive Connector Locations

PIN NO.

DESCRIPTION

1 GND

2 TXP

3 TXN

4 GND

5 RXN

6 RXP

7 GND

Table 4-12: SATA Drive Connector Pinouts

4.2.11 SPDIF Connector

CN Label:

SPDIF1

CN Type:

5-pin header (1x5)
