the onboard connectors. See Figure 5-16.

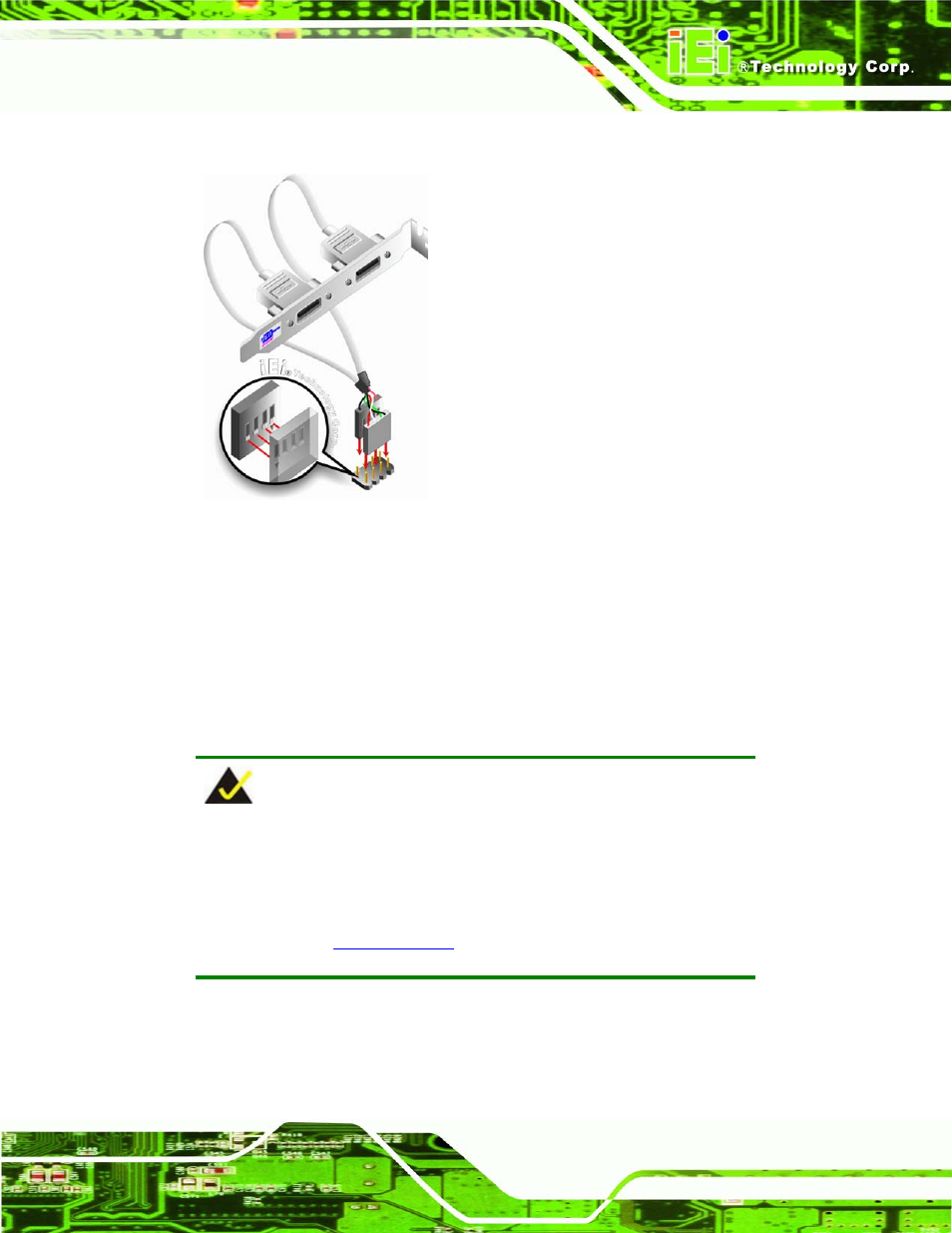

Figure 5-16: Dual USB Cable Connection
Step 4: Attach the bracket to the chassis. The USB 2.0 connectors are attached to a
bracket. To secure the bracket to the chassis please refer to the installation
instructions that came with the chassis. Step 0:
5.6.5 7.1 Channel Audio Kit Installation (Optional)
NOTE:
This is an optional item that must be ordered separately. For further
information please contact the nearest PCISA-9652 distributor, reseller
or vendor or contact an iEi sales representative directly. Send any
queries to [email protected] .
The optional 7.1 channel audio kit connects to the 10-pin audio connector on the
PCISA-9652. The audio kit consists of five audio jacks. One audio jack, Mic In, connects
to a microphone. The remaining four audio jacks, Line-In, Front-Out, Rear-Out, and
