PCIE-Q670 PICMG 1.3 CPU Card

Page 23

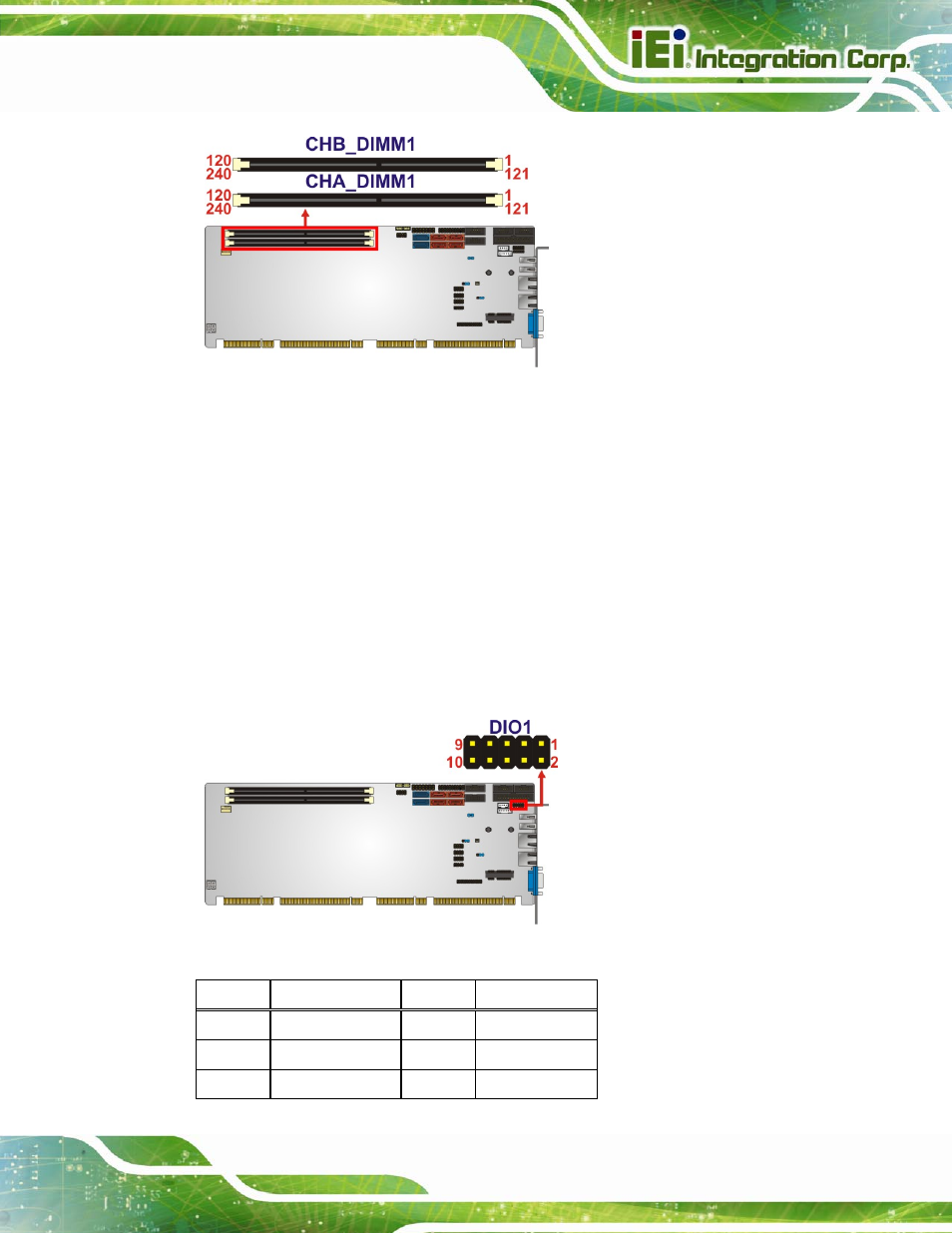

Figure 3-5: DDR3 DIMM Slot Locations

3.2.5 Digital I/O Connector

CN Label:

DIO1

CN Type:

10-pin header

CN Location:

See Figure 3-6

CN Pinouts:

See Table 3-6

The digital I/O connector provides programmable input and output for external devices.

The digital I/O provides 4-bit output and 4-bit input.

Figure 3-6: Digital I/O Connector Location

PIN NO. DESCRIPTION

PIN NO. DESCRIPTION

1

GND

2

VCC

3

Output 3

4

Output 2

5

Output 1

6

Output 0
