OVEN SERVICE PROCEDURES
Check High Bias Pressure:
 Loosen screw 1 full turn counter-clockwise (Figure 3)
 Connect Manometer to this test port
 Turn main switch to on position and wait for burner to light (up to 30 seconds)
Multi-Valve Adjustment Procedure

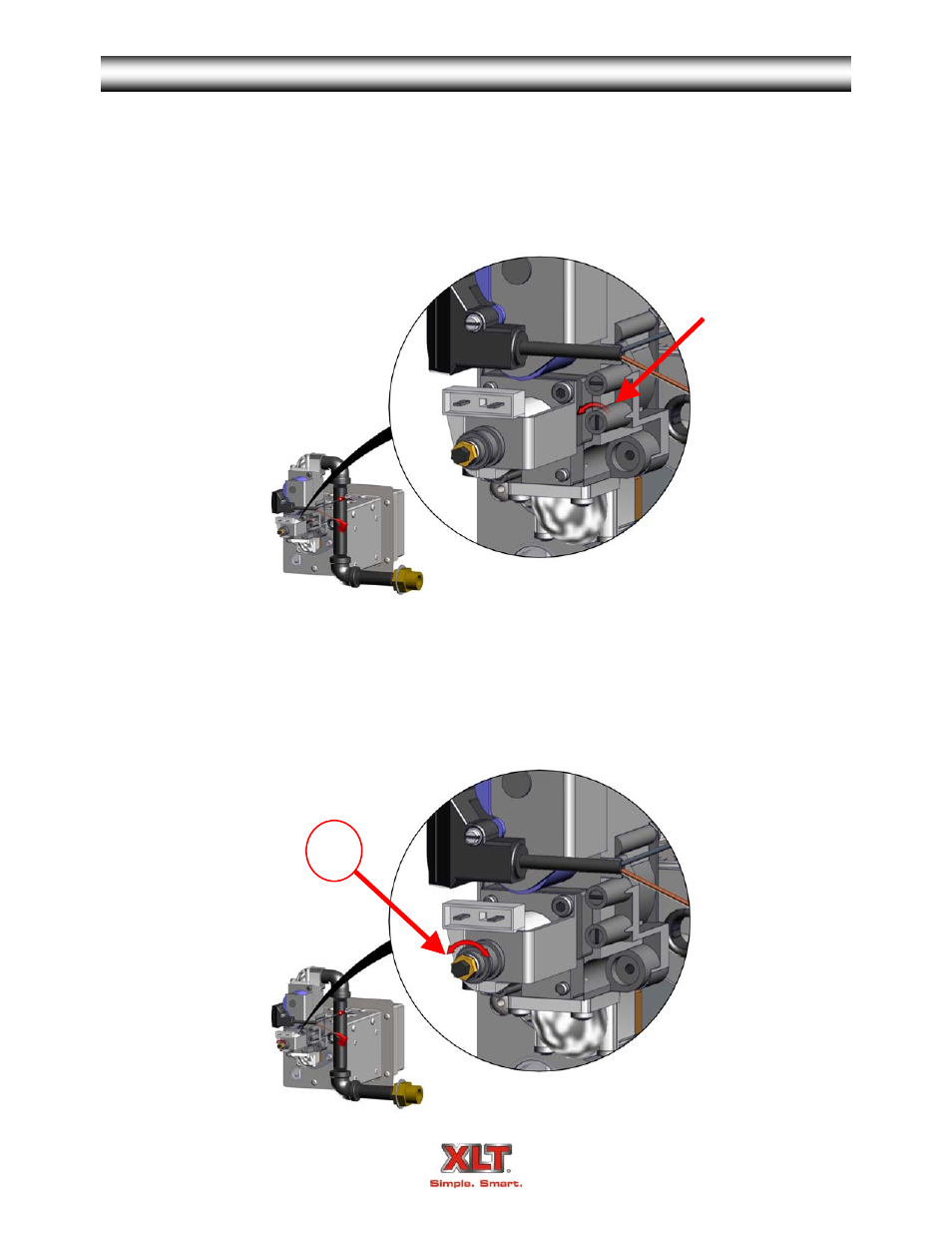

Figure 3
 Using an 8mm socket turn the High Flame Bias screw (Figure 4) until desired setting is
achieved. Use chart on next page (Figure 5) for correct valve settings.
Figure 4
8 mm
