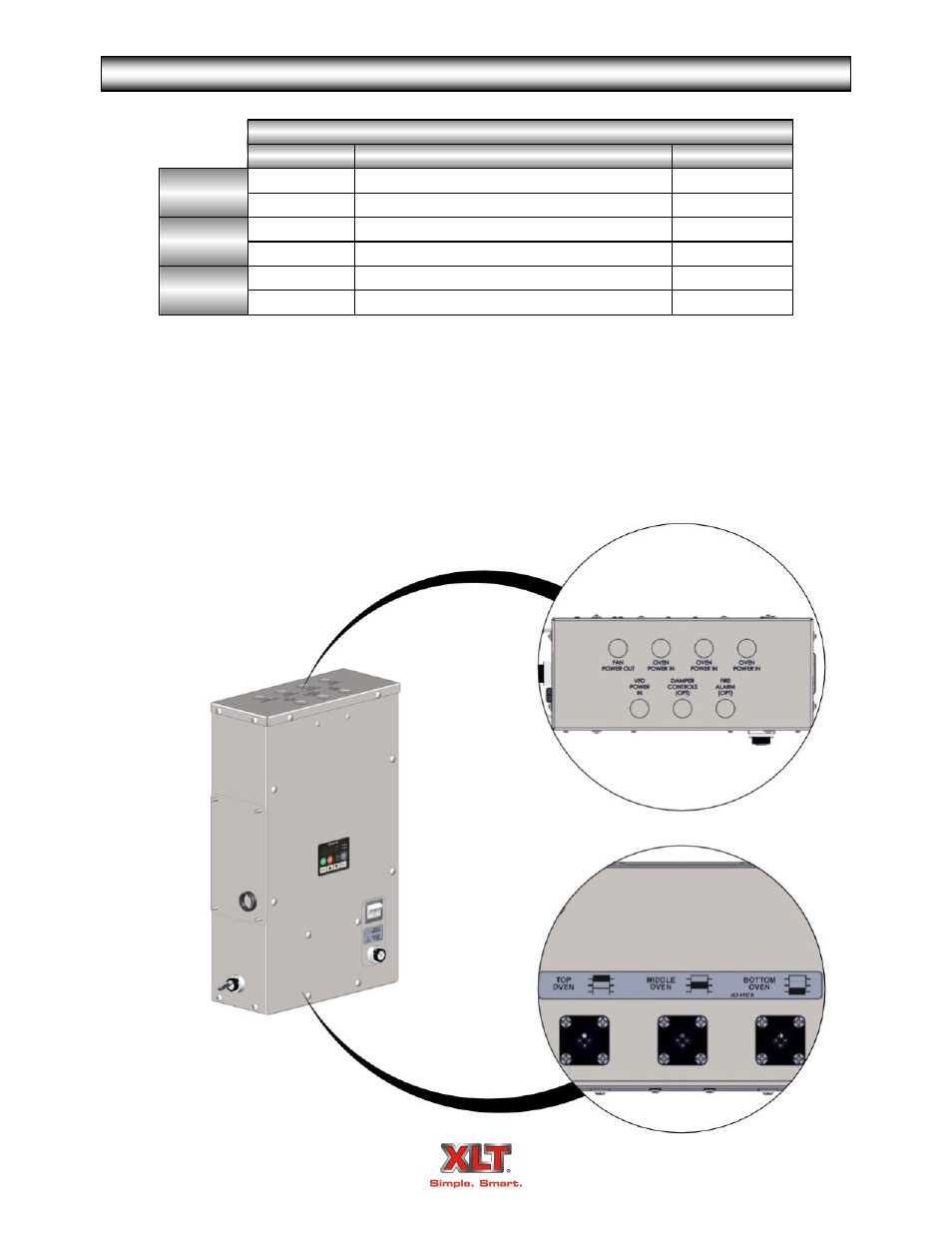

AVI HOOD ELECTRICAL REQUIREMENTS
Inputs into VFD Box
The AVI Hood system provides:

Three (3) switching outputs for HVAC dampers and dedicated units

One (1) 230 VAC, 10 Amp, variable frequency, three phase power output for the ventilation
exhaust fan.
Outputs from VFD Box
# of Circuits Rating Purpose
1 230 VAC, 1 Phase, 50 Hz, 3 Amp VFD Controller
1 230 VAC, 1 Phase, 50 Hz, 1 Amp Lights
1 208/240 VAC, 3 Phase, 60 Hz, 3 Amp VFD Controller
1 120 VAC, 1 Phase, 60 Hz, 1 Amp Lights
1 230 VAC, 1 Phase, 50 Hz, 3 Amp VFD Controller
1 230 VAC, 1 Phase, 50 Hz, 1 Amp Lights
Australian
Standard
World
AVI Hood Electric Utility Specifications
