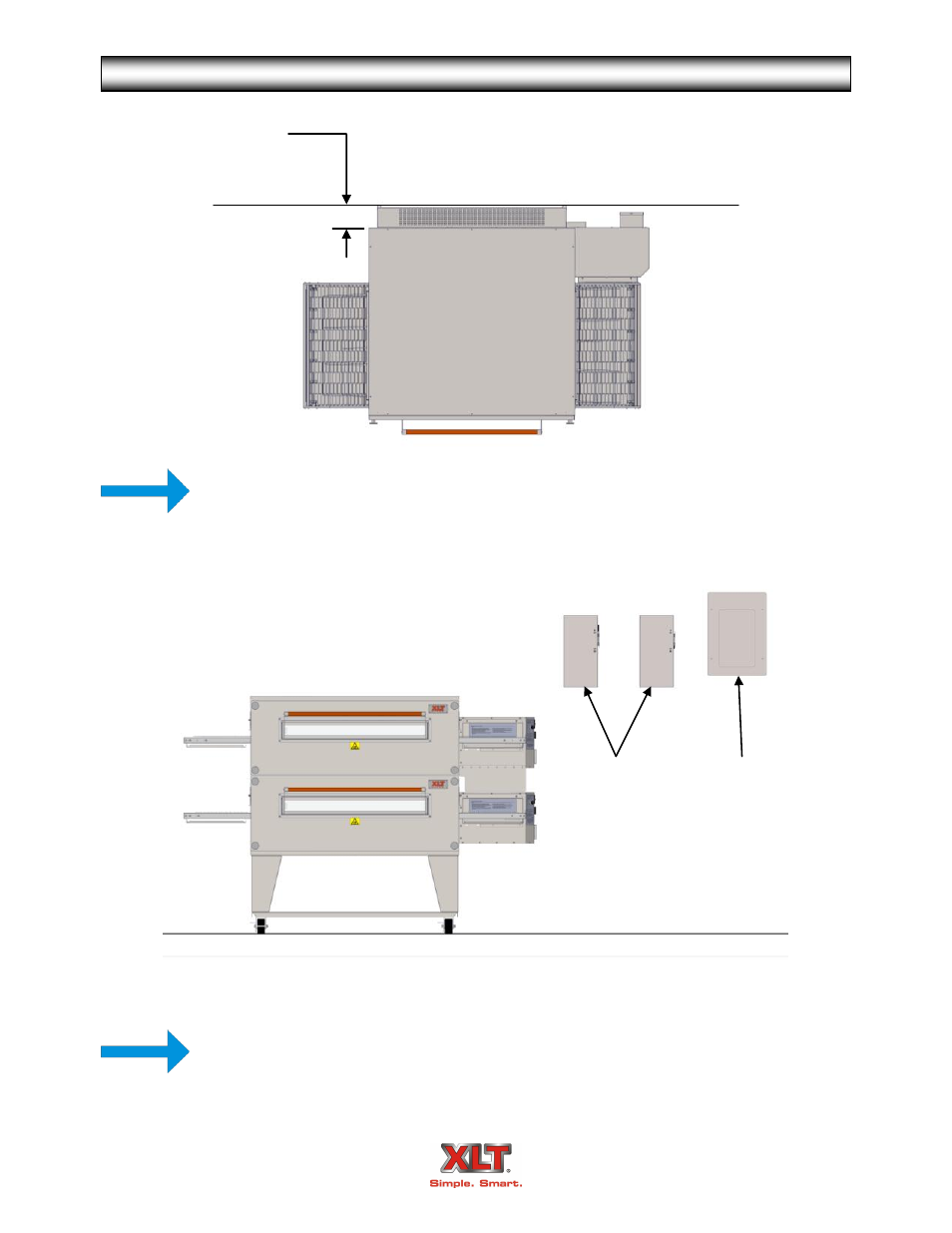

OVEN ONLY ROUGH-IN SPECIFICATIONS
6.00 [152]
From back of
oven to wall
Disconnect
Switch
NOTE
Utilities must be easily accessible when the ovens are in the installed position. Do not
install utilities behind the ovens.
NOTE
All installations must conform to local building and mechanical codes. It is required
that the ovens be placed under a ventilation hood to provide exhaust ventilation and
adequate air supply.
Breaker
Panel
(Shown for reference only)
