Changing the lamp of the
Visualizer:
1. Remove the power cord of
the Visualizer.
2. Remove lamp housing glass.
(1 Screw)
3. Remove the safety clip
4. Change the lamp.
CAUTION: Hot when used!
Lamp type: Osram Dulux S/E
9W/21 or equivalent
8
Pick-up element / video: VZ-7D VZ-5D / VZ-5F
Built-in camera system: 1 CCD unit – 1/3" interline transfer
Effective pixels: PAL models: 752x582 / N TSC models: 768x494
Horizontal resolution: > 470 TV lines
Iris: automatic and manual automatic
Autofocus: dynamic high speed, on/off switch
White balance: automatic and manual automatic
Optics
(5,4 – 64,8mm, f=1,8~2,7): 24x zoom
(12x optical + 2x digital)
VZ-5F: 12x optical zoom
VZ-5D: 24x zoom 12x opt. + 2x digital
Depth of focus
(depth of field): VZ-7D/5D: 14mm (0,6") on s mallest picture, size: 16x12mm (0,6"x0,5")
All: 18mm (0,7") on smal l picture, size: 42x 33mm (1,7"x1,3")
200mm (8") on largest pi cture, size: 360x270 mm (14,4"x10,8")
Operation:
Camera control panel:
functions: zoom in, zoom out, autofocus on/off
Infrared remote control: included (functions: zo om, iris,
manual focus, presets, i mage
on/off)
not available
Power and light control s: power on/off, light on/of f or light on lightbox
Power-on preset: autofocus on, autoiris on, pick -up size: 210x140mm
Special drawer for slide s: included not available
Lighting element:
Light source:
high frequency fluoresc ent lamp
Light system: light either on working surface or in front of the unit, no blinding of audience
or speaker, very low stra y light
Scanning area:
Objects on working surfac e
(length x width):
min.: 16x12mm (0,6"x0,5" ),
max:360x270mm (14,4"x 10,8")
VZ-5F: min.: 32x24mm (1,2"x0,9")
max.: 360x270mm (14,4"x 10,8")
VZ-5D: see measurement VZ-7D
Objects on working surfac e
(height):
up to 370mm (15") in wide position - 110mm (4,4") in tele position
Objects in a room: length, width, and height to infinity
Connections:
Y/C (S-video) output:
4-pin connector, Y -signal: 1 Vpp 75
W
, C-signal: 0,3 Vpp 75
W
Composite video output: RCA-connector, VBS 1,0 Vpp 75
W
Serial control input: Configuration: RS-232 not available
12 V DC output: for external lightbox or LCD -monitor
General specifications:
Power consumption:
max. 25 VA
Power source: 12 V DC
Made in: Austria (European Comm unity)
Weight: Visualizer: 4,6kg (10lbs), Power pack: 0,7kg (1,1lbs)
Accessories (Scope of s upply):
Mains power pack:
90 – 240 V AC / 12 V DC, 1,5 A
Carrying case (Soft case) with pocket f.projector included (standard edi tion)
Other supplied accessori es: Y/C (S-video) cable, instructi ons
Specifications and availability subject to change

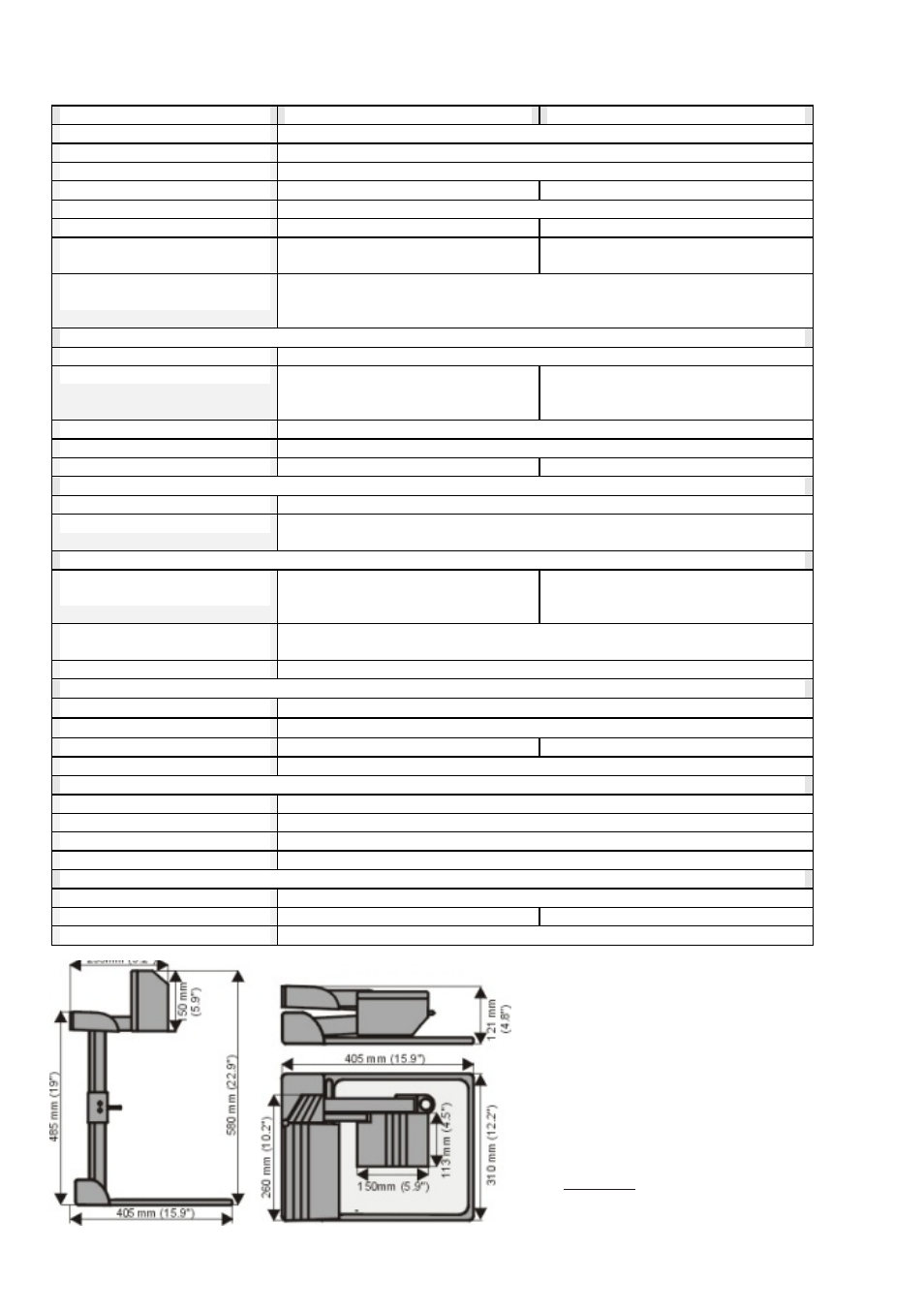

Technical data:
