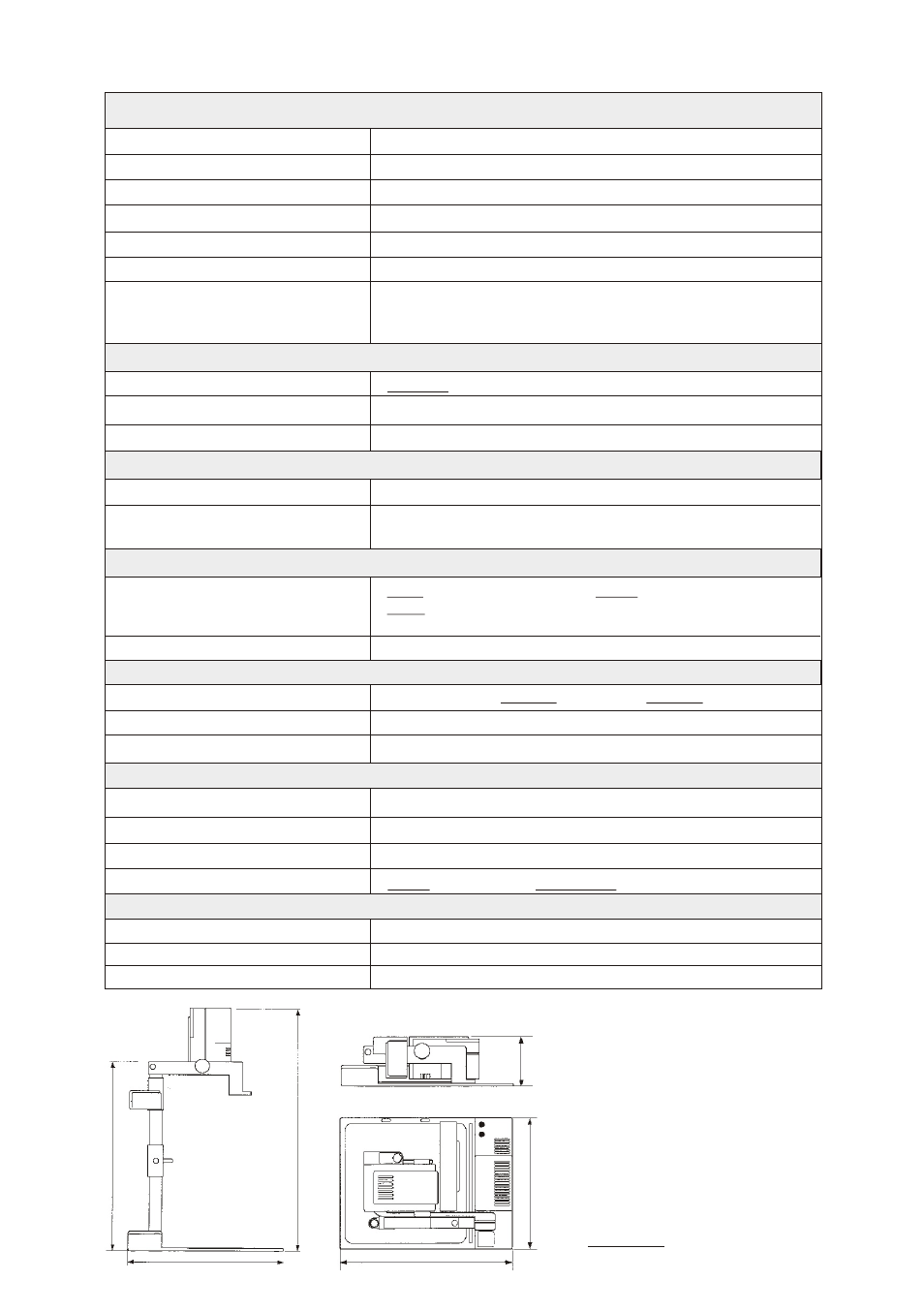

WolfVision VZ-5 - Manual (Page 5)

Pick-up element / video
VZ-5b
Built-in camera system 1 CCD unit - 1/3" interline transfer
Effective pixels: 752 x 582 = PAL (VZ-5b E), 768 x 494 = NTSC (VZ-5b U/UE/N)
Horizontal resolution: > 450 TV lines
White balance / Iris / Gain control: automatic
Optics: 12 x telezoom, 5.4 - 64.8mm, f =1.8~2.7, with wide macro
Depth of focus: 14mm (0.6") on smallest picture, size: 31 x 23mm (1,2" x 0.9")
18mm (0.7") on small picture, size: 42 x 33mm (1.7" x 1.3")
200mm (8") on largest picture, size: 360x270mm (14,4"x10.8")
Autofocus: continuously working with high speed, on/off switch
Operation
Camera control panel:
Power and Light controls: power on/off, light on / off or light on lightbox (external)
functions: zoom in, zoom out, autofocus on/off
autofocus on, Power-on preset:
Lighting element
Light source:
Light system:
high frequency neon light
light either on working surface or in front of the unit, back side
covered to avoid blinding of audience, low stray light
Scanning area
Objects on working surface:
width: 23-270mm (0.9"-10.8"), length: 31-360mm (1.2"-14.4"),
height: up to 110mm (4.4") in tele position (smallest picture)
up to 400mm (16") in wide position (largest picture)
Objects in a room: length, width and height to infinity
Connections
Y/C (S-VHS) output: 4-pin connector, Y-signal: 1 Vpp 75 C-signal: 0.3 Vpp 75
W, W,
Composite video output:
DC power plug dimensions: DC in (2,1mm/5,5mm), Lightbox (2,5mm/5,5mm)
RCA-connector, VBS 1.0 Vpp 75
W
Technical data:
General specifications
Standard accesories:
Power source: 12 V DC
Power consumption:
Mains power pack:
S-VHS (Y/C) cable: 4pin to 4pin
Carrying case (imitation leather): 450x350x132mm (17.7"x13.8"x5.2"), black, with side pocket
13 W
100 V, 110 V or 230 V AC / 12 V DC, 1.5 A
Weight:
Made in:
VZ-5b: 4.6kg (10lbs), Power pack: 0.7kg (1.5lbs)
European Community (Austria)
405mm (15.9") 405mm (15.9")
5
8
0
m
m
(
2
2
.8
")
4
6
6
m
m
(
1
8
.3
")
Specifications and availability subject to change.
3
0
8
m
m
(
1
2
.1
")
1
3
0
m
m
(5
.2
")
Changing the lamp of the VZ-5b:
1. Remove the power cord of
the VZ-5b
2. Remove the philips screw on the
bottom of the lamp housing glass
3. Loosen the philips screw on
the lamp holder
4. Change the lamp
CAUTION: Hot when used!
Lamp type: Osram Dulux S/E
9W/21 or equivalent
