Local keyboard, video monitor and mouse

A locally connected keyboard, video monitor and mouse are required during the
initial configuration. These are also useful during normal use to allow quick local
control of any connected host computers.

To connect a local keyboard, video monitor and mouse

1 Position a suitable keyboard, video monitor and mouse in the vicinity of the

AdderLink IP such that their cables will easily reach.

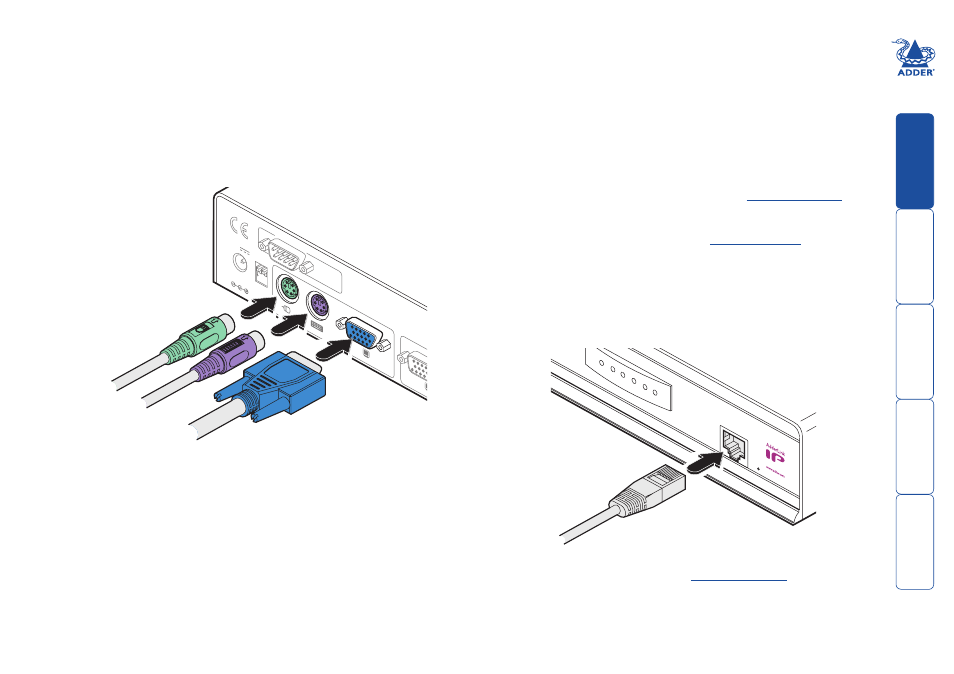

2 Connect the keyboard, video monitor and mouse plugs to the sockets,

collectively labelled as ‘KVM CONSOLE’, at the rear of the AdderLink IP.

COM1

MODE

M

COM2

POWER

CONTROL

INDOOR

USE

ONL

Y

KVM

CONSOLE

5V

1

2

ON

2A

COMPUTER

/ KVM

SWITCH

From mouse

From keyboard

From video monitor

IP network port

The AdderLink IP provides an autosensing Ethernet IP port that can operate at
10 or 100Mbps, according to the network speed. The AdderLink IP is designed
to reside quite easily at any part of your network:

• It can be placed within the local network, behind any firewall/router

connections to the Internet, or

• It can be placed externally to the local network, on a separate sub-network

or with an open Internet connection.

Wherever in the network the AdderLink IP is situated, you will need to
determine certain configuration issues such as address allocation and/or firewall
adjustment to allow correct operation. Please refer to

Networking issues

within

the Configuration chapter for more details.
IMPORTANT: When the AdderLink IP is accessible from the public Internet or dial
up connection, you must ensure that sufficient

security measures

are employed.

To connect the IP network port

1 Depending upon where in the network the AdderLink IP is being connected,

run a category 5e or 6 cable from the appropriate hub or router to the
AdderLink IP.

2 Connect the plug of the category 5e or 6 cable into the IP port on the front

panel of the AdderLink IP.

LOC

REM

VNC

100

LNK

PWR

3 Configure the network settings as appropriate to the position of the

AdderLink IP within the network - see

Networking issues

for details.
