Waterstone FILTRATION FAUCETS 1900HC - Manual (Page 3)

A
C
D
E
F
G
H
B
1.
COUNTER
OR SINK
2. 3. 4.
A
C
D
E
F
G
H
B
1.
COUNTER
OR SINK
2. 3. 4.
Slide washer (G) and thread
the nut (H) onto threaded
shroud. Hand tighten nut to
underside of sink or counter.
Slide washer (G) and thread
the nut (H) onto threaded
shroud. Hand tighten nut to
underside of sink or counter.
Turn faucet to the desired
handle position. Securely
tighten nut with adjustable
wrench.
Turn faucet to the desired
handle position. Securely
tighten nut with adjustable
wrench.

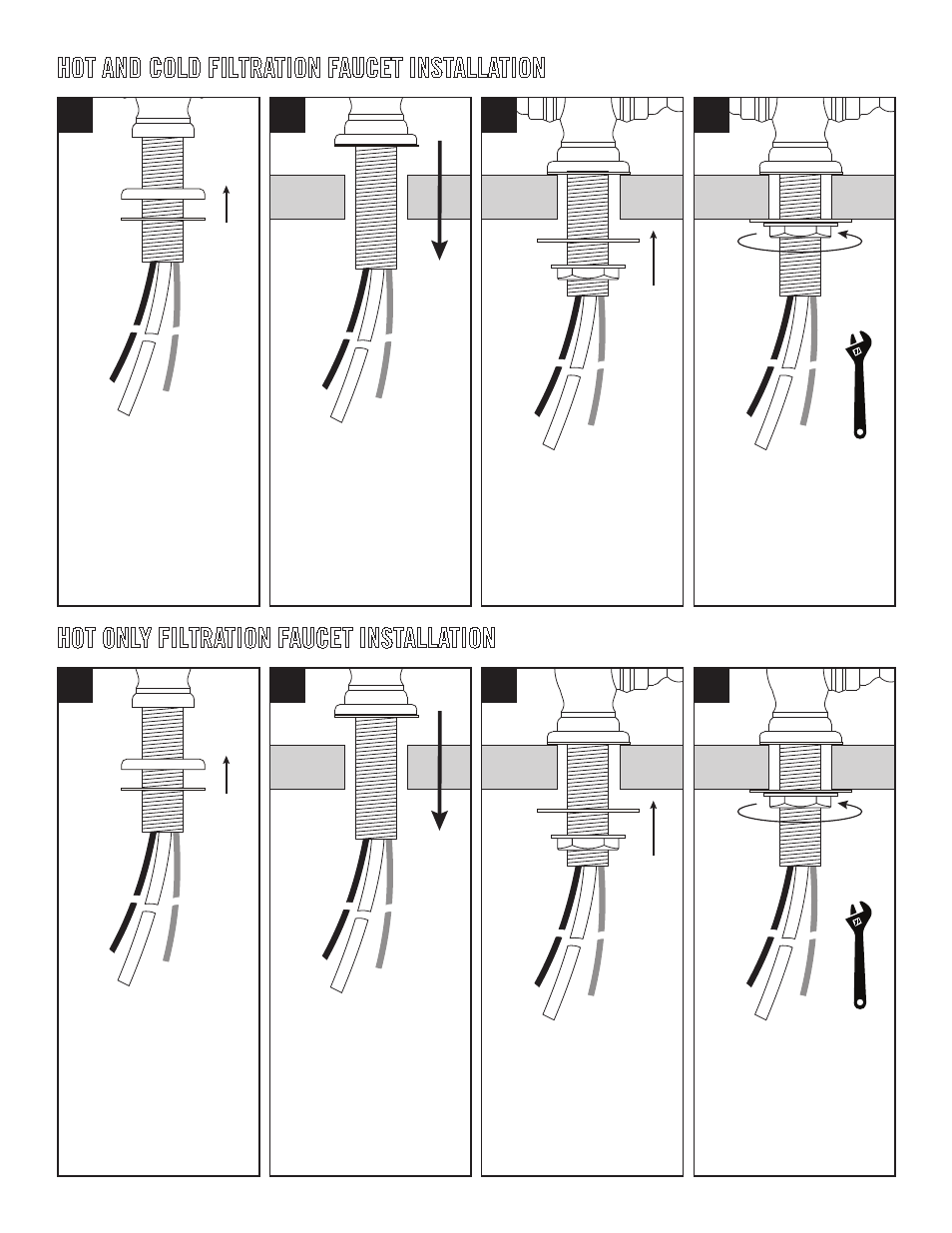

HOT AND COLD FILTRATION FAUCET INSTALLATION
HOT ONLY FILTRATION FAUCET INSTALLATION
Slide escutcheon plate (A) and
clear vinyl washer (B) onto
threaded shroud (C) and up to
base of faucet.
Install escutcheon (A) and clear
vinyl washer (B) onto faucet
shank (C).
Fit flexible hoses (D, E, F)
through hole on counter or
sink. (No plumbers putty is
required. Vinyl washer seals
base).
Fit flexible hoses (D, E, F)
through hole on counter or
sink. (No plumbers putty is
required. Vinyl washer seals
base).
