Waterstone PLP PULLDOWN FAUCET 5800 - Manual (Page 2)

F
COUNTER
OR SINK
1. 2. 3. 4.
A
B
C
D E
A
C
B

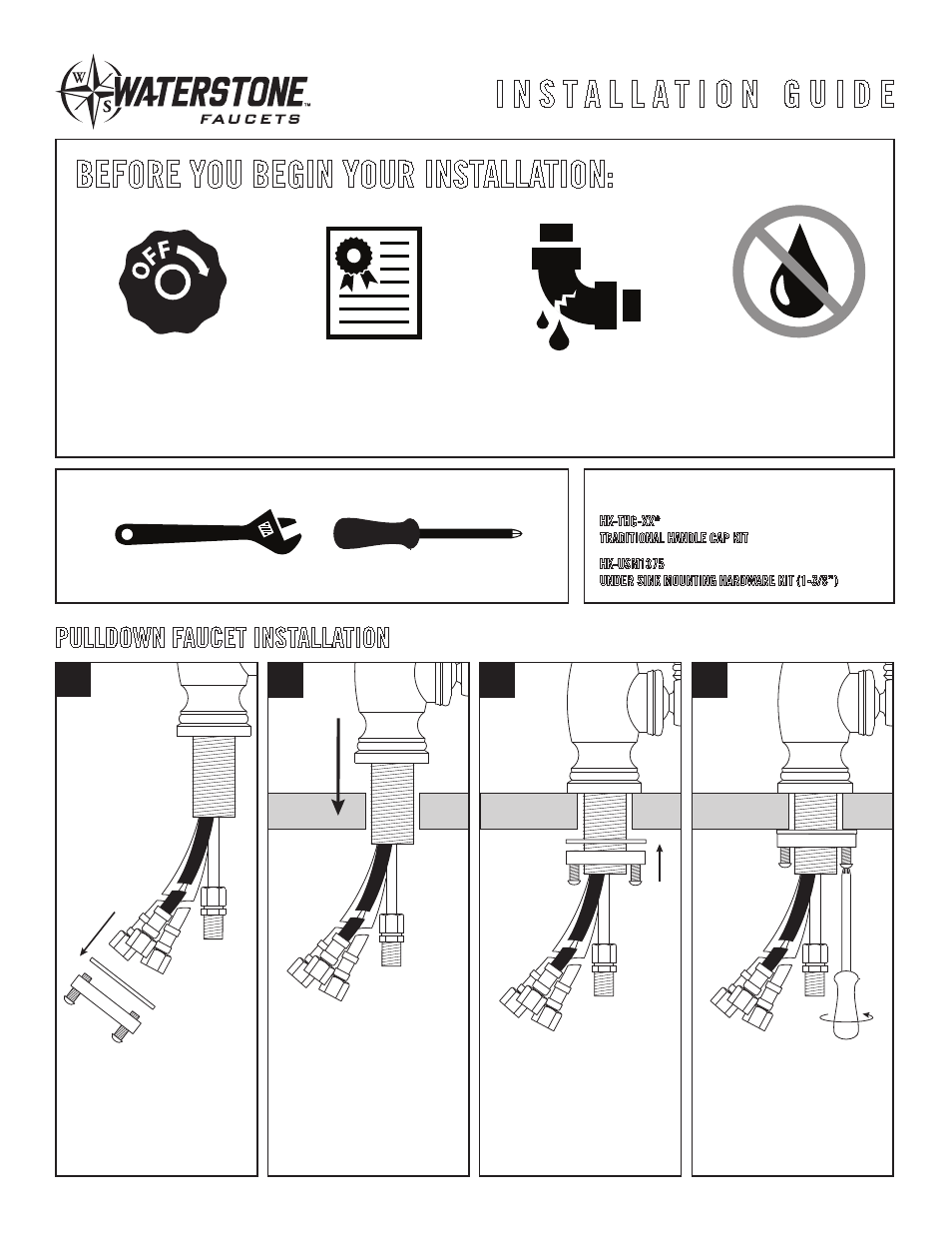

PULLDOWN FAUCET INSTALLATION
Remove the clamp nut (A) and
washer (B) from the threaded
shroud (C). Slide washer and thread the
clamp nut onto threaded
shroud. Tighten nut snug to
underside of sink or counter. Turn faucet to the desired
handle position. Securely
tighten clamp screws (F). Fit flexible hoses (D) and spray
connection tube (E) through
hole on counter or sink. (No
plumbers putty is required.
O-ring seals base).
1 2 3 4
Turn off water supply. Observe all local
plumbing codes.
Inspect waste and water
supplies for signs of damage.
Replace as necessary.
DO NOT use petroleum
based products on this
faucet.
REQUIRED TOOLS: PARTS INCLUDED:
2. Phillips Screwdriver 1. Adjustable Wrench
BEFORE YOU BEGIN YOUR INSTALLATION:
I N S T A L L A T I O N G U I D E
HK-THC-XX*
TRADITIONAL HANDLE CAP KIT
HK-USM1375
UNDER SINK MOUNTING HARDWARE KIT (1-3/8”)
*XX represents finish
