Z series IP camera user manual
5
Notice

Please check carefully if all listed items are included in the package, if anything
missing, please contact vendor in time.

The item number with letter M is Mega Pixel, 720P camera, otherwise it’s VGA
camera.

The label for device series # and verify code are put at the bottom of the device, it
is unique, please take care of it.
2. Install device

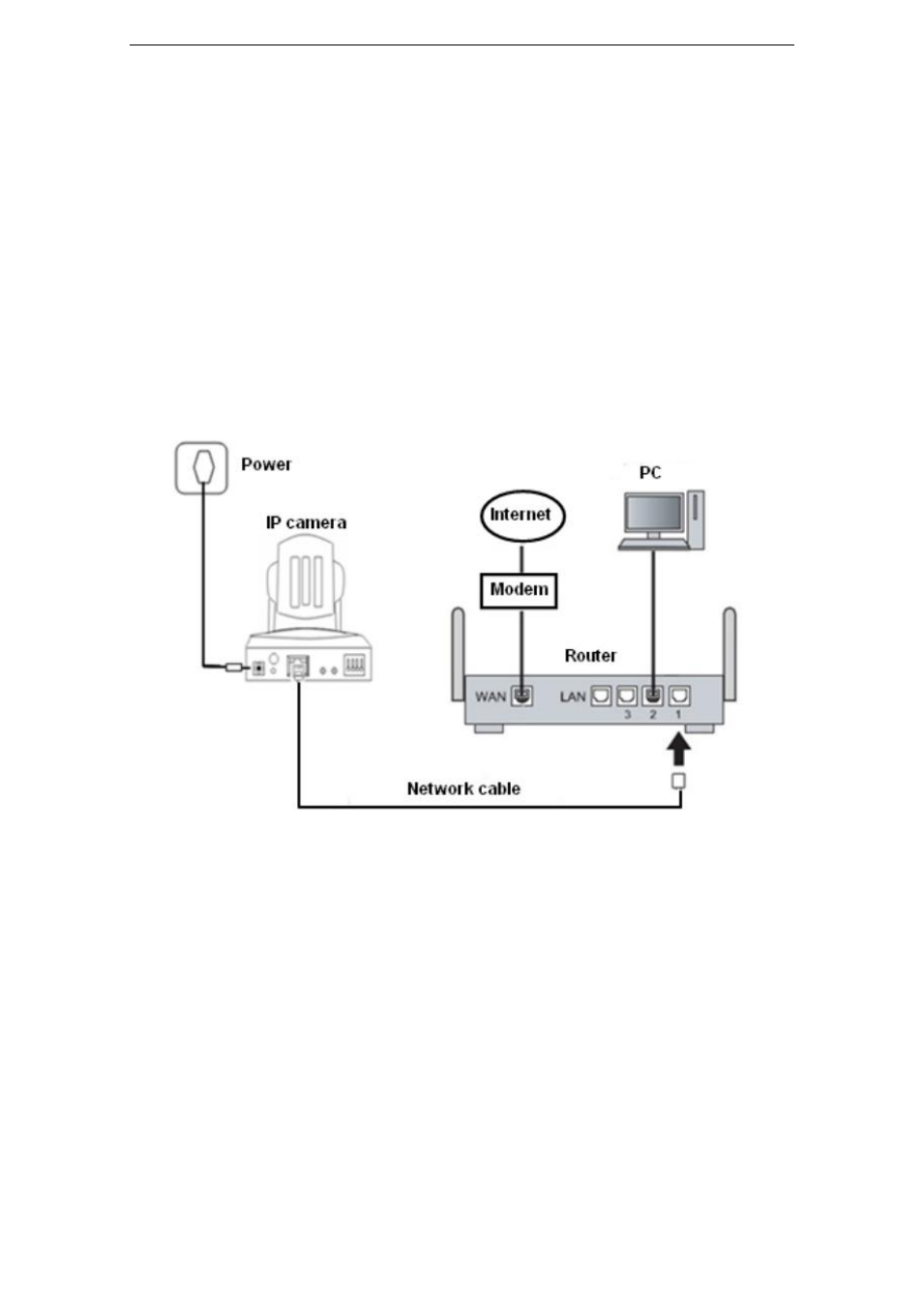

Typical home network connection as fig.1
Fig. 1
 Please check if the power supply voltage is 5V;
 Make sure you have a internet connection and can access the internet via the
connection;
 According to Fig. 1, connect the device and router by network cable ，powered up the
device; it will work after 2 minutes.
 Please check status for work indicator LED to see if the device is working normally.
Please refer to its definition of the products in Z series product family ( Chapter 6 ).
Tips: How to connect to the WIFI router
Because the camera supports WPS/QSS, so you can set wireless by simple way as below.
1) Please confirm if the router connected supports WPS/QSS (you can check user manual
of the router or get the support from router factory);
2) Press WPS/QSS button on the router, it will launch the function.
3) Press and hold on reset button for 5 seconds after it runs normally（about 2 minutes, not
need to connect cable）, it will launch the WPS/QSS function, then match the setting with
