Using IR8250SW
This tutorial illustrates how you may use the IR8250SW to download a firmware and change the config
settings.
Before reading this chapter you should:
Have installed the IR8250SW software, as described in the chapter Installation for ACT-IR8250SW.
Setup the
IR8250P evaluation kit
, as described in the IR8250P Specification.

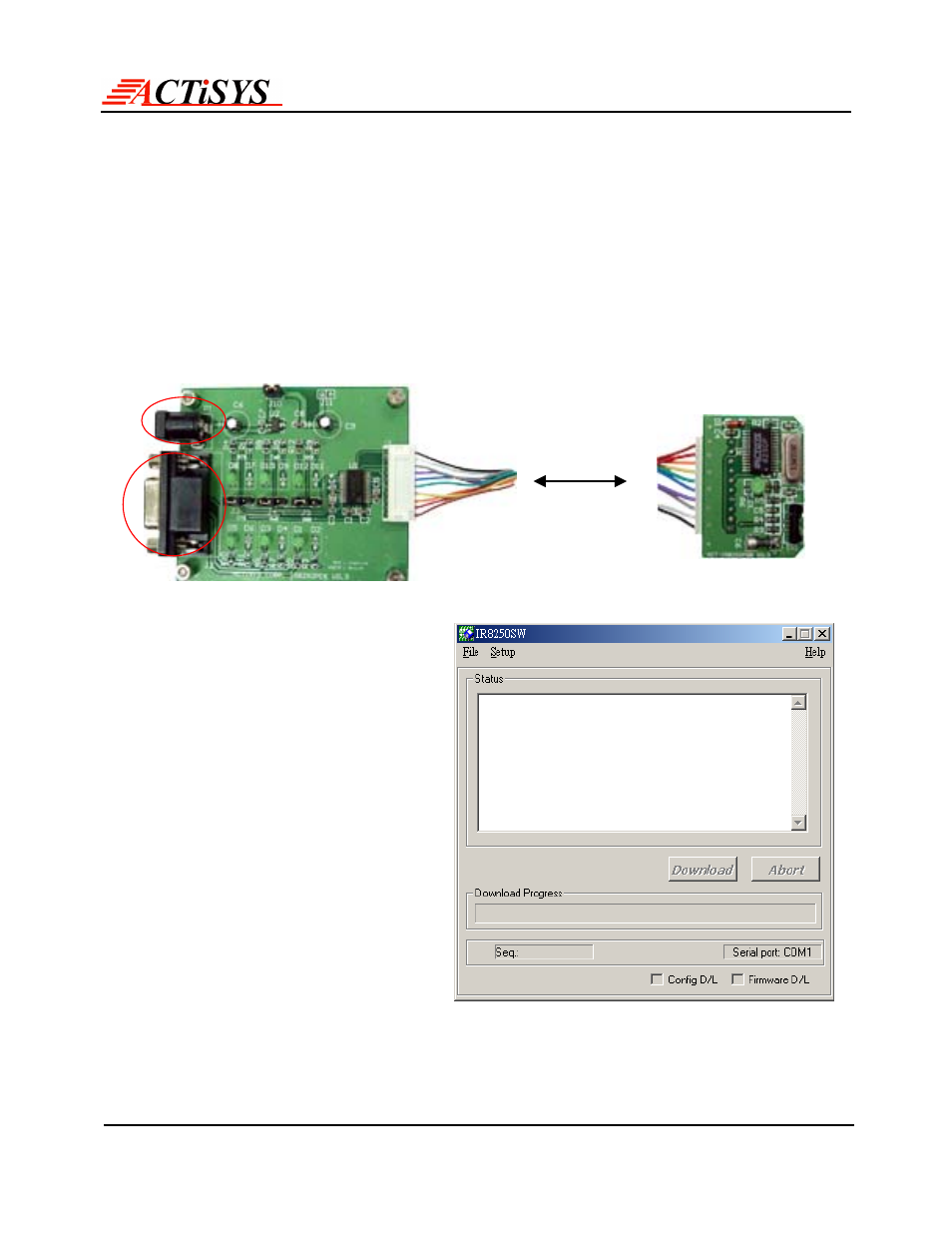

Make sure that the AC adaptor (P1) and RS-232 cable (J2) has been connected correctly.
J2
P1
1. Click
Starts Programs ACTiSYS IR8250SW
to run the IR8250SW software.
