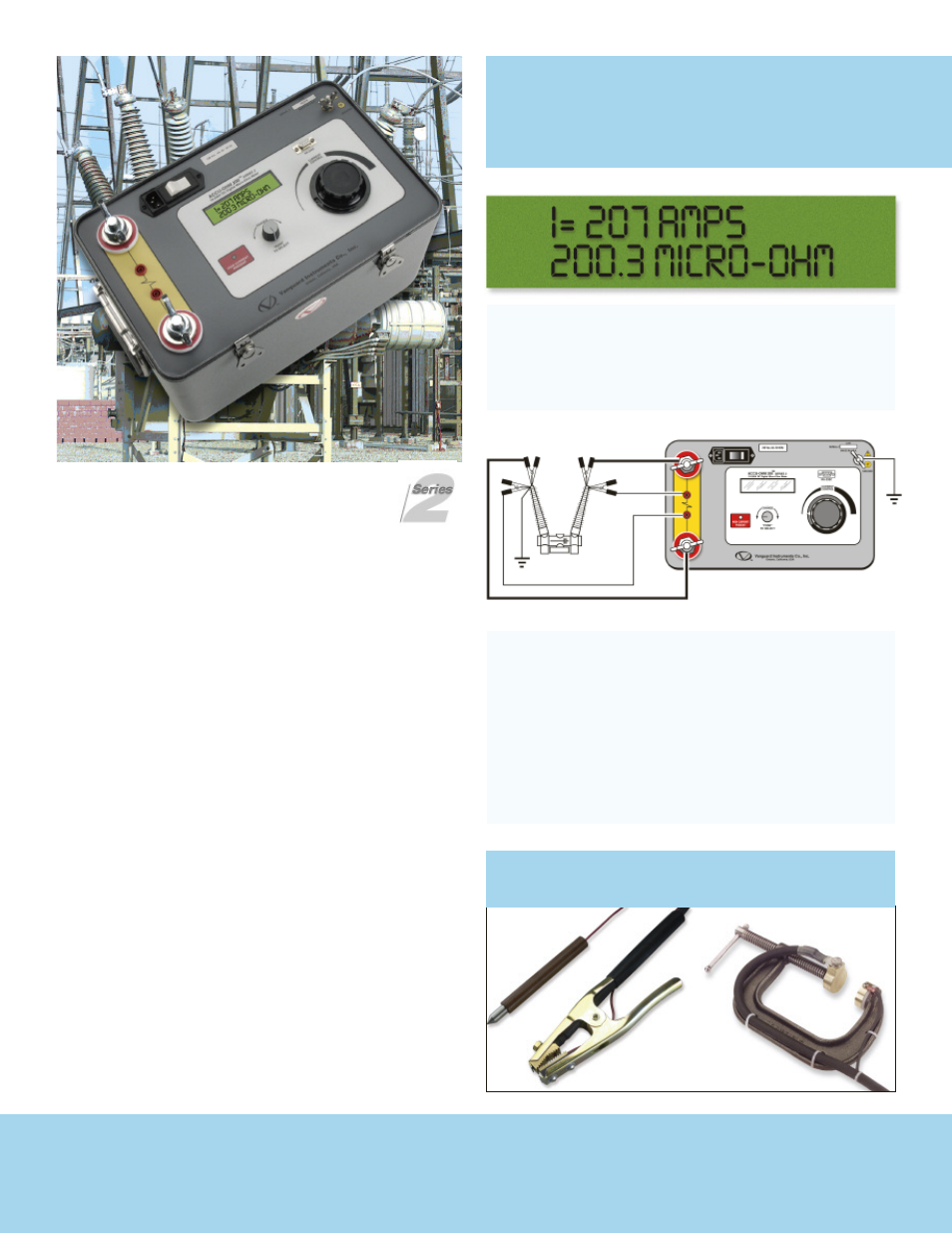

The Accu-Ohm 200 S2 is especially designed to accurately measure low
resistances from 1 micro-ohm to 300 milli-ohms. Using a microproces-
sor, the Accu-Ohm 200 S2 can accurately calculate and display a resist-
ance reading at any current from 10A to 200A. The Accu-Ohm 200 S2 is
designed for testing EHV circuit-breaker contact resistance, bushing con-
tact joints, or for any low-resistance measuring application.
The Accu-Ohm 200 S2 applies an un-filtered direct current from 10A to
200A to the resistance load being tested. Any test current setting can be
selected by using the current control dial on the front panel. The resist-
ance reading is displayed directly in micro-ohms or milli-ohms. No cal-
culations are required to compensate for lead resistances when using
the Accu-Ohm 200 S2.
The Accu-Ohm 200 S2 features a back-lit LCD screen (1-inch high, 16
characters by 2 lines) that is viewable in both bright sunlight and low-
light levels. The resistance reading is displayed on the screen until the
next test is initiated. The last three resistance measurements are stored
internally and can be displayed on the LCD screen. An RS-232C interface
port is also provided for diagnostic testing.
The Accu-Ohm 200 S2 is furnished with two 30-foot test cables. Fifteen-
foot test cables are also available as an option. Both cables are terminat-
ed with quick disconnect clips. Heavy-duty, welding-type, C-clamps are
available as an optional accessory. These can be used to connect the test
cable leads to a wide variety of bushing sizes, bus-bars and other con-
ductors requiring low-resistance test contacts.
The Accu-Ohm 200 S2’s power supply is thermally protected, and the
contact-sensing inputs are protected against static-discharge damage.
Accu-Ohm 200
Special-Purpose Micro-ohmmeter
Accurately
• Reliable, inexpensive, and easy to use
• 10 to 200 Amperes DC test current
• Digital resistance readings from 1 micro-ohm to 300 milli-ohms
• Stores and can display last 3 readings F
E
A
T
U
R
E
S
Accu-Ohm 200 S2 with 30-ft Test Cables Part No: Accu-Ohm 200 S2
Accu-Ohm 200 S2 Shipping Case Part No: Accu-Ohm 200 Case
15-foot Test Cable Part No: Accu-Ohm 200 Cable-15ft
30-foot Test Cable Part No: Accu-Ohm 200 Cable-30ft
C-Clamp Set (2 clamps) Part No: C-Clamps
Alligator Clamp Set (2 clamps) Part No: Alligator-Clamps
Hand Spike Set (2 probes) Part No: Handspike
Ordering Information
Accu-Ohm 200 Series 2
ACCESSORY CLAMPS and HANDSPIKE
