Audiovox PA-S450 - Manual (Page 11)

EXISTINGSCREWORBOLT
CLEANPAINT,RUST,DIRTOR
GREASE FROM AREA FOR
GOODCONNECTION
GROUNDEDMETAL
SECTIONOFVEHICLE
AUTO-ANTENNALEAD
-9-
USE THIS OUTPUTWIRING WITH
INPUT WIRING ON PAGE 8

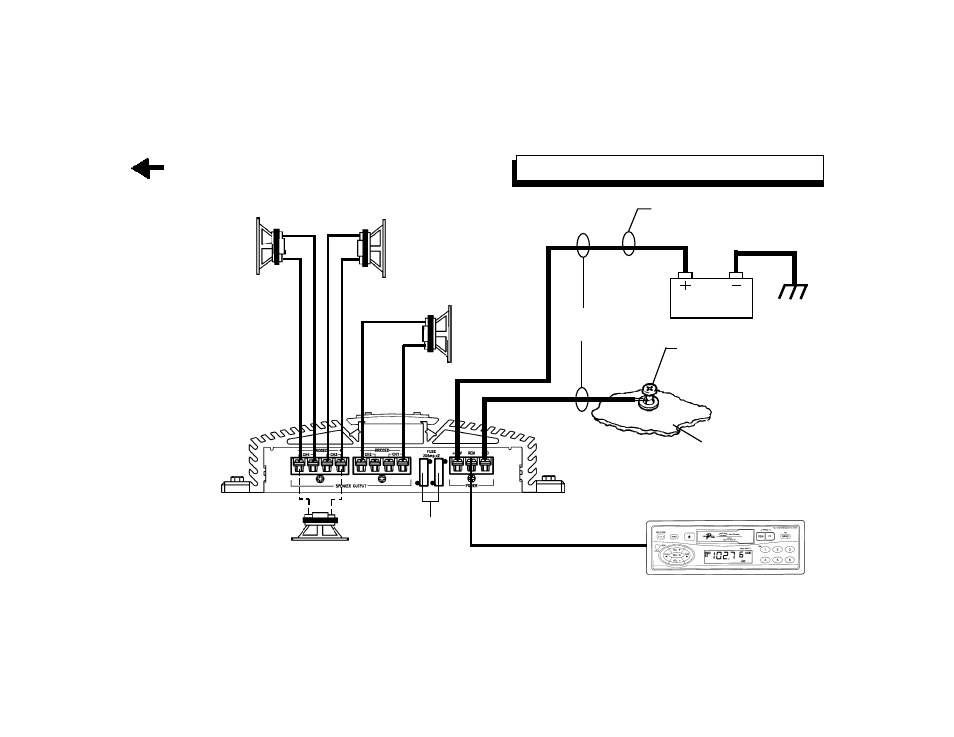

3-CHANNEL OUTPUT WIRING DIAGRAM
MONOSPEAKER
OR
SUB-WOOFER
4-8 OHMS
-
12 VOLT
VEHICLE
BATTERY
CHASSIS
GROUND USE#10GAUGE
WIRE (SEE TEXT)
+
CAR STEREO
RIGHT
SPEAKER
2-8 OHMS
(4-8 OHMS IN
MIXED-MONOMODE)
CONNECTTHIS
WIRE LAST
-
+
6
-
CH3 / CH4
MIXED-MONO SPEAKER OR
SUB-WOOFER WITH CROSSOVER
4-8 OHMS
LEFT
SPEAKER
2-8 OHMS
(4-8 OHMS IN
MIXED-MONOMODE)
+
+ -
