TIF VA500A Digital HVAC Analyzer - Manual (Page 11)

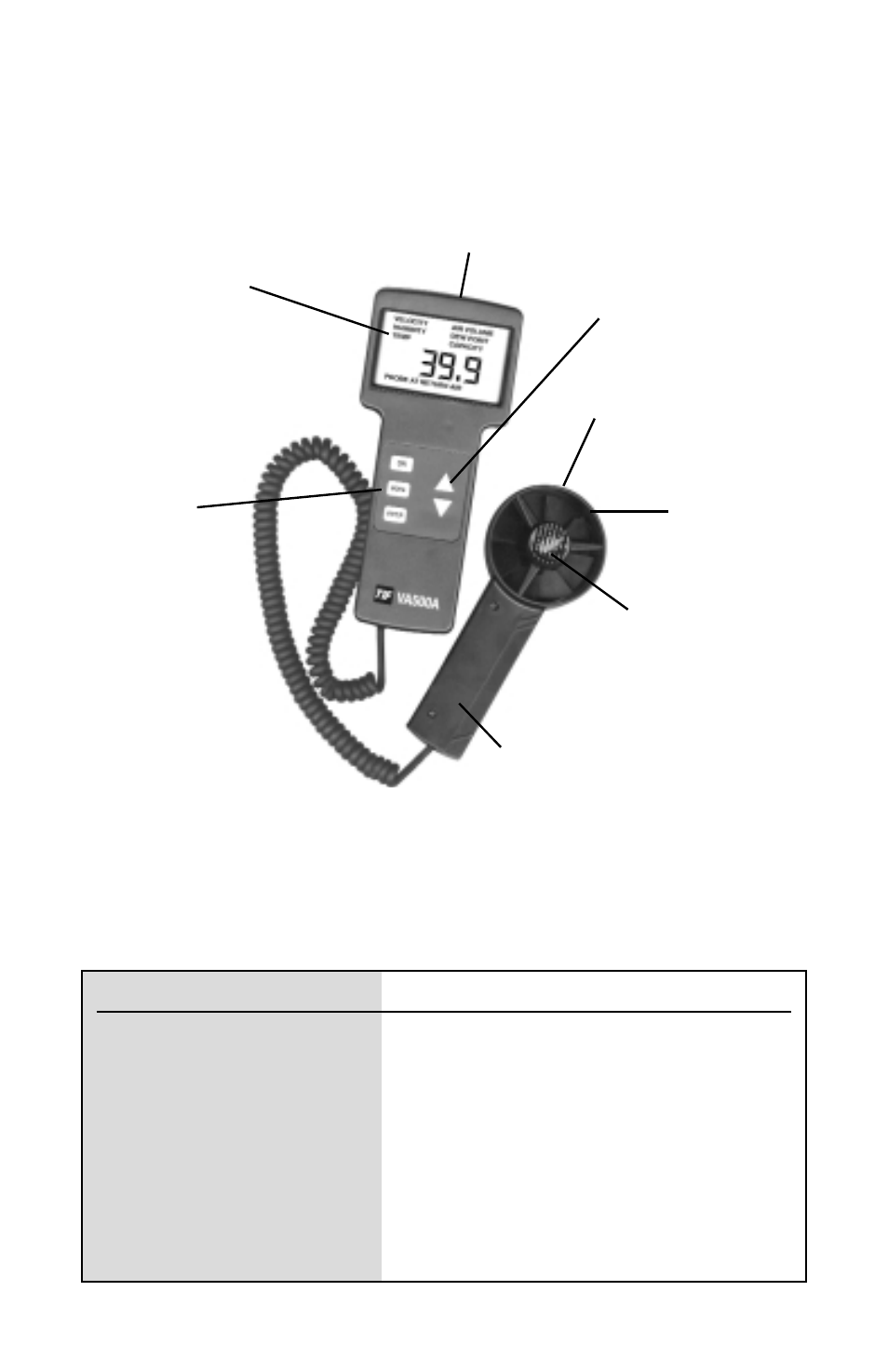

Liquid Crystal
Display (LCD)
Keypad
Controls
ON
MODE
ENTER
Battery Cover
(on back)
Keypad Controls
UP/DOWN
Velocity Fan
Sensor’s
Cover
Temperature,
Dew Point and
Humidity Sensor
Sensing Probe
PARAMETER UNITS OF MEASURE
Temperature °F
Humidity %RH
Air Velocity Ft/sec
Width / Length Inch (also accepts diameter)
Air volume CFM
Power BTU/H
Dew Point °F
Page 6
4. INSTRUMENT DESCRIPTION
5. OPERATING INSTRUCTIONS
Units of Measure
