Using your TERK
MS-WB616 Multiswitch
• FlexPorts can only be accessed with the APG (Advanced
Program Guide) satellite receiver or the A3/MPEG 4
capable HD receiver (i.e. model H20). The FlexPorts are
used to interface with the dish antennas of two
additional DIRECTV satellites, at locations such as 95°W,
72.5°W.
• Consult the APG satellite receiver or the A3/MPEG 4
capable HD receiver user's manuals for 6x16 setup
procedures. There are differences as only the APG
satellite receiver has the “Auto Configure” for detecting
dish setups.
• With the APG satellite receiver, if you do not have any
FlexPort connected, always use manual dish set option
instead of “Auto Configure” to speed up the installation
process.
• With the APG satellite receiver, if you have either 72.5°W
or 95°W or input, always use FlexPort 1. If you have
both 72.5°W and 95°W, use FlexPort 1 for 72.5°W and
FlexPort 2 for 95°W. In multi APG IRD environment, you
should run one auto-configure at a time; and before
auto-configuring is running make sure the other APG
IRDs are on 101°W (Channel 100 is suggested). This will
reduce system acquisition time and minimize error.
M
S
-W
B
6
1
6
4
Making Connections
(Continued)
M
S
-W
B
6
1
6
3
MS-WB616
132-7377 Made in China
6X16 Wide Band MULTISWITCH
RG-6 cables
max. 100 ft total each
Each of these 4 cables
can go into any one of
the 4 LNB connectors
E
72.5 o W.L.
OR
95
o W.L.
All outputs are identical
7
DISH
NOT
SHOWN
MS-WB616
132-7377 Made in China
6X16 Wide Band MULTISWITCH
Each of these 2 cables
can go into any one of
the 2 LNB connectors
DISH
NOT
SHOWN
7
72.5 o W.L.
OR
95
o W.L.
Dual LNBs only

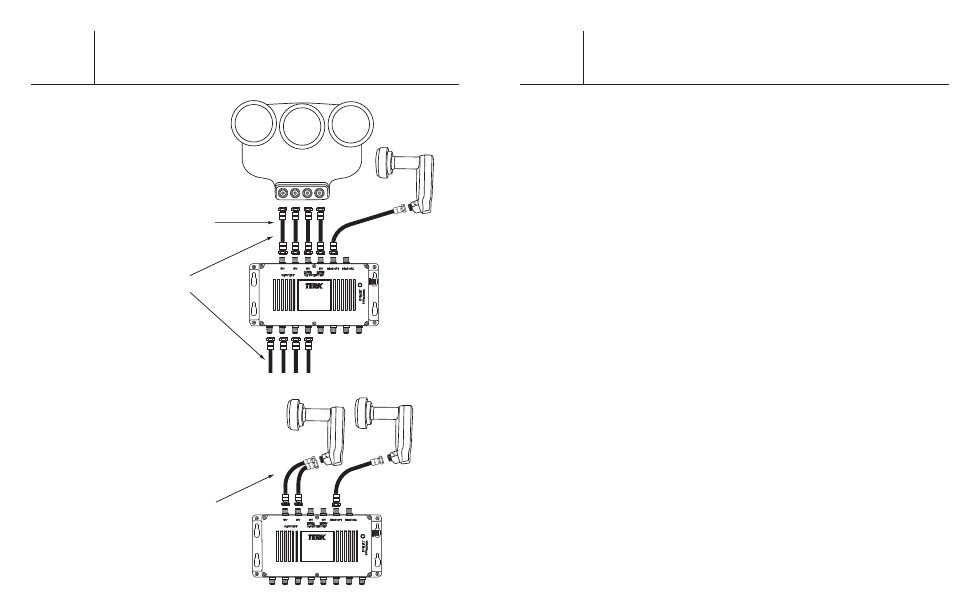

Connecting to the
TRK-S26 Phase III
18X20 Dish
Connecting to the
TRK-S2 18 inch
Round Dish
