About your TERK
MS-WB616 Multiswitch
Thank you for choosing the Terk MS-WB616 Wide Band
Multiswitch. Please read through this owner’s manual so
that you will know how to operate your Multiswitch
properly. Always keep this owner’s manual in a safe place
for future reference.
This wideband 6x16 Multiswitch is designed to expand the
new Ka/Ku Out-Door Unit (ODU) from 4 outputs to 16
outputs, supporting up to 16 independently operating
receivers. The Ka/Ku ODU is designed to support the latest
DIRECTV A3/MPEG 4 capable HD receivers but is also
compatible with all previous generations of DIRECTV
receivers such as the Terk TRK-S2 (18 inch round ODU)
with 2 outputs and the Terk TRK-S26 (18x20 inch oval
Phase 3 triple LNB ODU) with 4 outputs.
The Terk MS-WB616 has 6 inputs. Four inputs are for the
traditional 101°/110°/119°W LNBs and two additional Ka
LNBs for 99°W and 103°W. The MS-WB616 also has 2
FlexPort inputs. The FlexPorts are used to interface with
the dish antennas of two additional DIRECTV satellites at
locations such as 72.5°W and 95°W.
M
S
-W
B
6
1
6
1
MS-WB616
132-7377
Made in China
6X16 Wide Band MULTISWITCH
Ka/Ku LNB (99
o
/101
o
/103
o
W.L. LNB)
110
o
/119
o
W.L. Ku LNBs
72.5
o
W.L.
95
o
W.L.
All outputs are identical
RG-6 cables
max. 100 ft total each
Each of these 4 cables
can go into any one of
the 4 LNB connectors
DISH
NOT
SHOWN
R

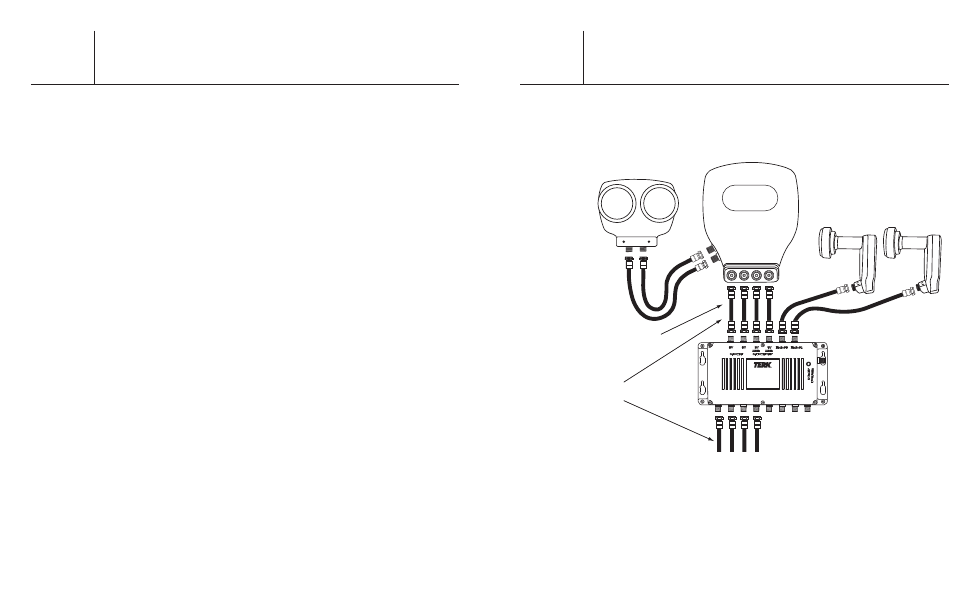

Connecting to the new Ka/Ku Dish
