Operating Your TERK TV4
Low-Profile Indoor Antenna
Holding the top of the center control arm, simply rotate
the antenna to seek the best quality picture.
Please Note:
1. Do not force the center control arm past its
normal rotation positions.
2. Do not place your TV4 near large metal objects or
appliances that would create interference.
2. Do not lift your TV4 by its receiving elements or place
objects on them.
4. Late model televisions have on-screen menu controls
for viewing VHF/UHF “Off-Air” or cable broadcasts.
Please ensure that this menu control is at the proper
“Off-Air” position.
TV4
4
Installing Your TV4
Connecting your TV4

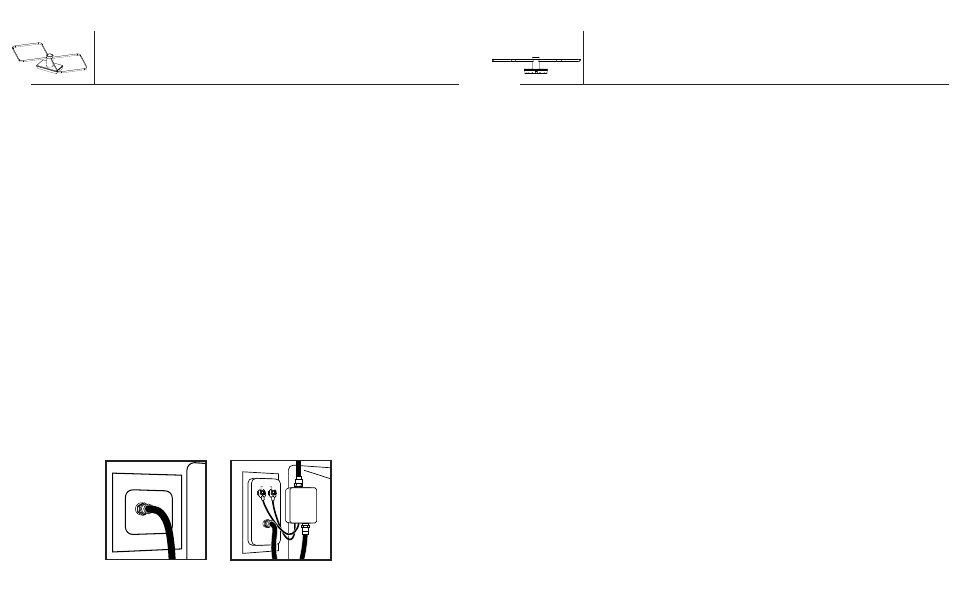

There are two ways to connect your TV4. This will depend
on your model of television.
For Televisions with One 75 Ohm Input for VHF and UHF:
1. Connect the coaxial cable from your TV4 to the
“F” connector input marked VHF/UHF on your TV.
See Fig.1.
For Televisions with Separate 75 Ohm
VHF and UHF Inputs:
1. Attach the band separator (not included) to the coaxial
cable attached to your TV4.
2. Screw in the VHF connector from the band separator to
the VHF input on your TV or VCR.
3. Attach the 300 ohm twin wire from the band separator
to the two screws marked UHF. See Fig.2.
TV4
3 VHF/UHF
Fig. 1
VHF
UHF
Fig. 2
Band
Separator
