HARDWARE INSTALLATION
This chapter describes how to install the CardBus
10/100M dual-speed PC Card in your notebook
computer and connect it to network. It’s referred to “the
PC Card” in this manual.
The PC Card could be connected to either 100Mbps
Fast Ethernet or 10Mbps Ethernet over unshielded
twisted pair (UTP) calbe. The PC Card has the ability
of automatic sensing and operating on either speed
without manual reconfiguration.
Inserting the CardBus Dual-Speed PC Card
1. Hold the CardBus PC Card with wide
connector toward the slot and the brand lable
facing upward.

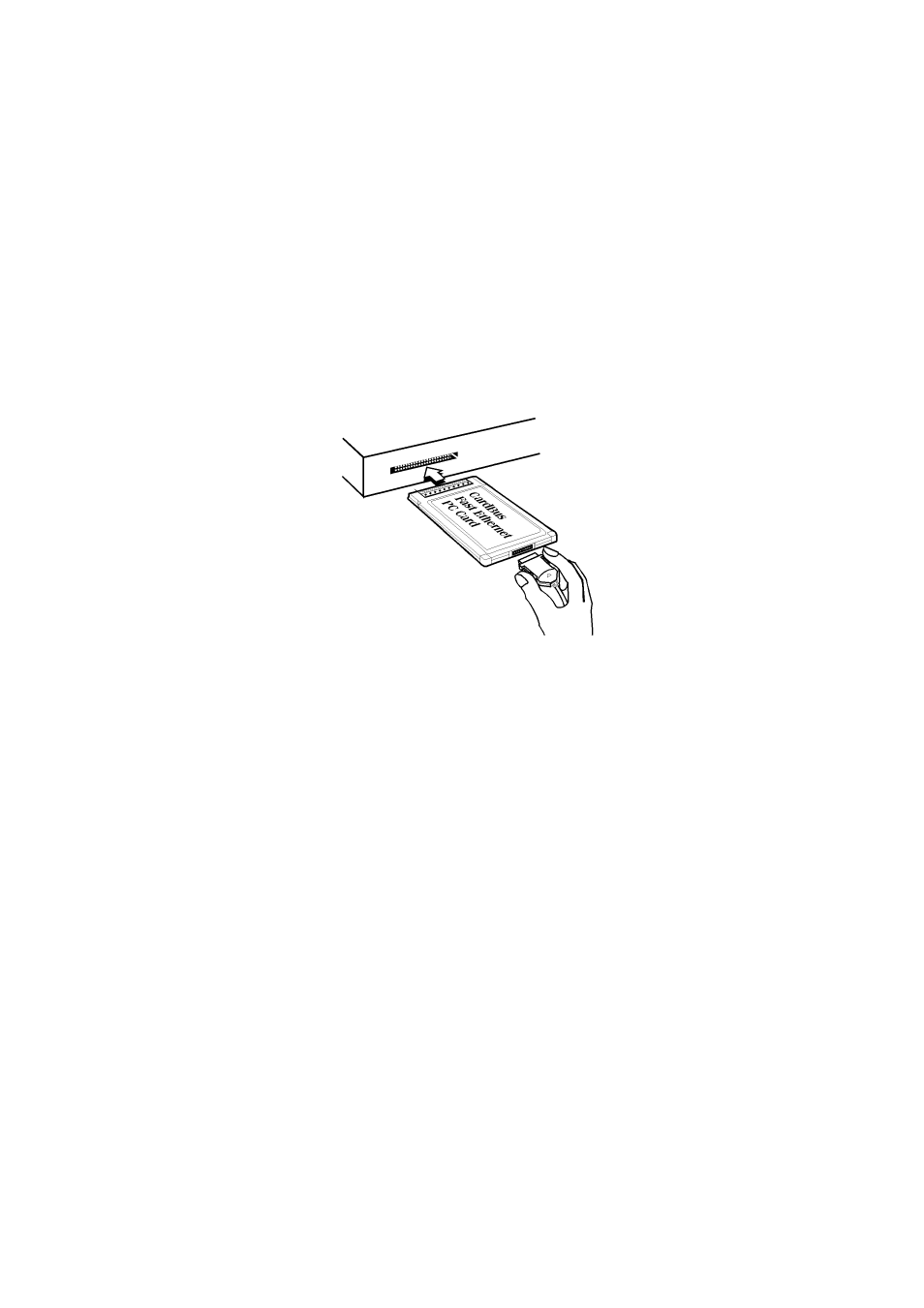

2. Insert the CardBus PC Card and push it
firmly into the bottom. (Please see the figuer
on the next page for reference)
- 1 -
