44
-EN

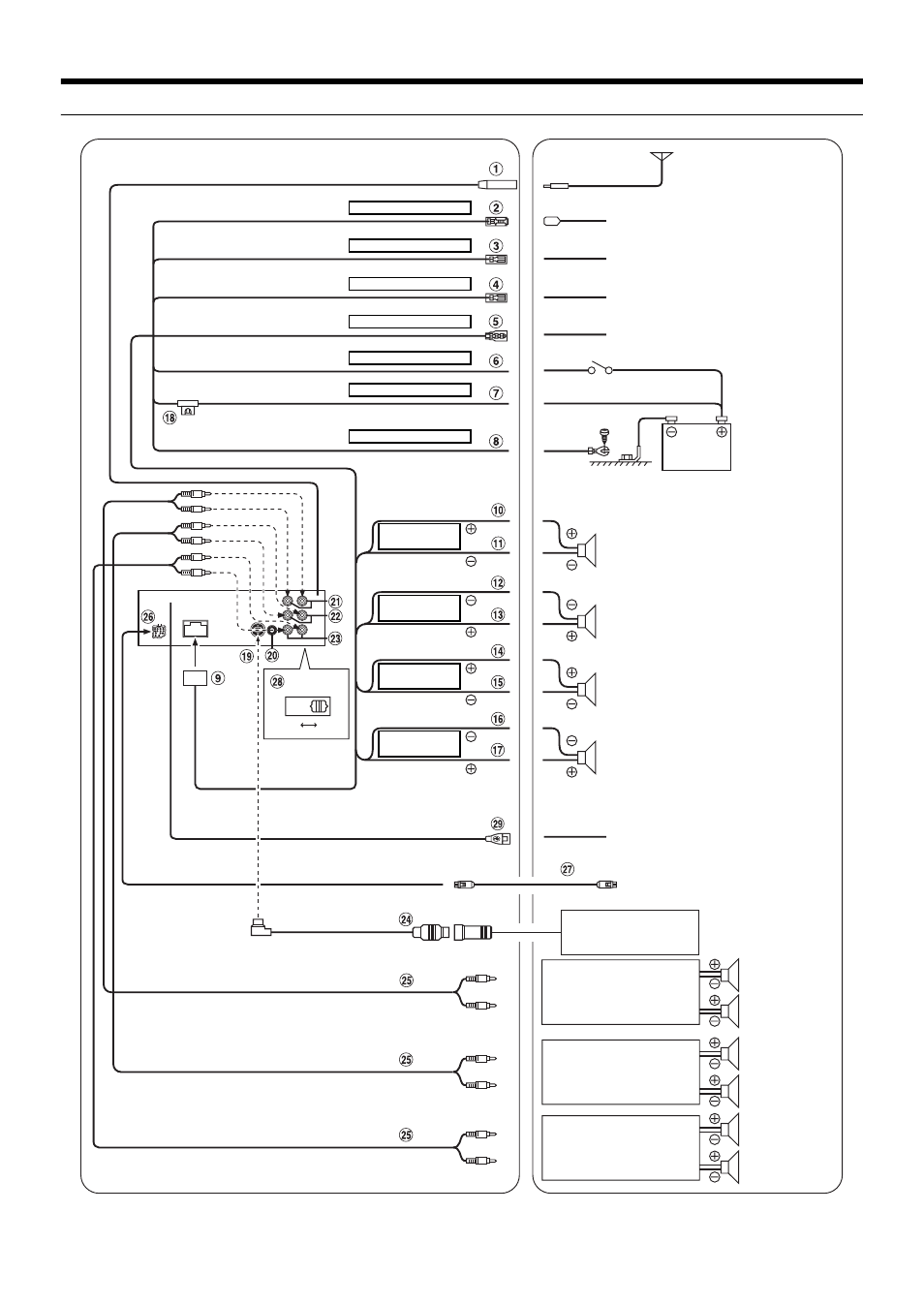

Connections
EXT AP NORM
* 1
Speakers
Front right
Rear right
Rear left
Front left
Gray
SPEAKER
RIGHT FRONT
White
Gray/Black
Violet/Black
Violet
Green
Green/Black
White/Black
SPEAKER
RIGHT REAR
SPEAKER
LEFT REAR
SPEAKER
LEFT FRONT
Antenna
To power antenna
To amplifier or equalizer
To vehicle phone
Ignition Key
Battery
To the instrument cluster illumination
lead
Blue POWER ANT
Blue/White
Orange ILLUMINATION
Red IGNITION
Yellow BATTERY
Black GND
REMOTE TURN-ON
Pink/Black AUDIO INTERRUPT IN
CD Changer
(Sold Separately)
Speakers
Amplifier
(Sold Separately)
Rear left
Rear right
Front left
Front right
Subwoofers
Amplifier
(Sold Separately)
Amplifier
(Sold Separately)
To USB memory or iPhone/iPod or
portable audio player
To Bluetooth INTERFACE
(KCE-400BT) (sold separately)
*
1
The system switch is located on the bottom of the unit.
