Page 8: Tip: signal sleeve: ground (gnd)

pg. 8
ECA-70MIXAMP-1-60 Installation Manual
COM
4-16
70V
100V
EMC INPUT
MUTE
+
OUTPUT
AUX2
INPUT
MIX
OUT
AUX1
INPUT
MIC2
MIC3
LINE INPUT
COM
COM
MIC2
MIC3
1
2
3
1
2
3
MIC 2
+48V
PHANTOM
MIC 3
+48V
PHANTOM
MIC 2
XLR
GAIN
MIC 3
XLR
GAIN
INPUT~120V 60Hz 120W
Fuse:T3.15A L 250V
ECA-70MIXAMP-1-60
PLAY
Blu-ray / DVD Player
PC Audio
Standard Connections
Advanced Connections

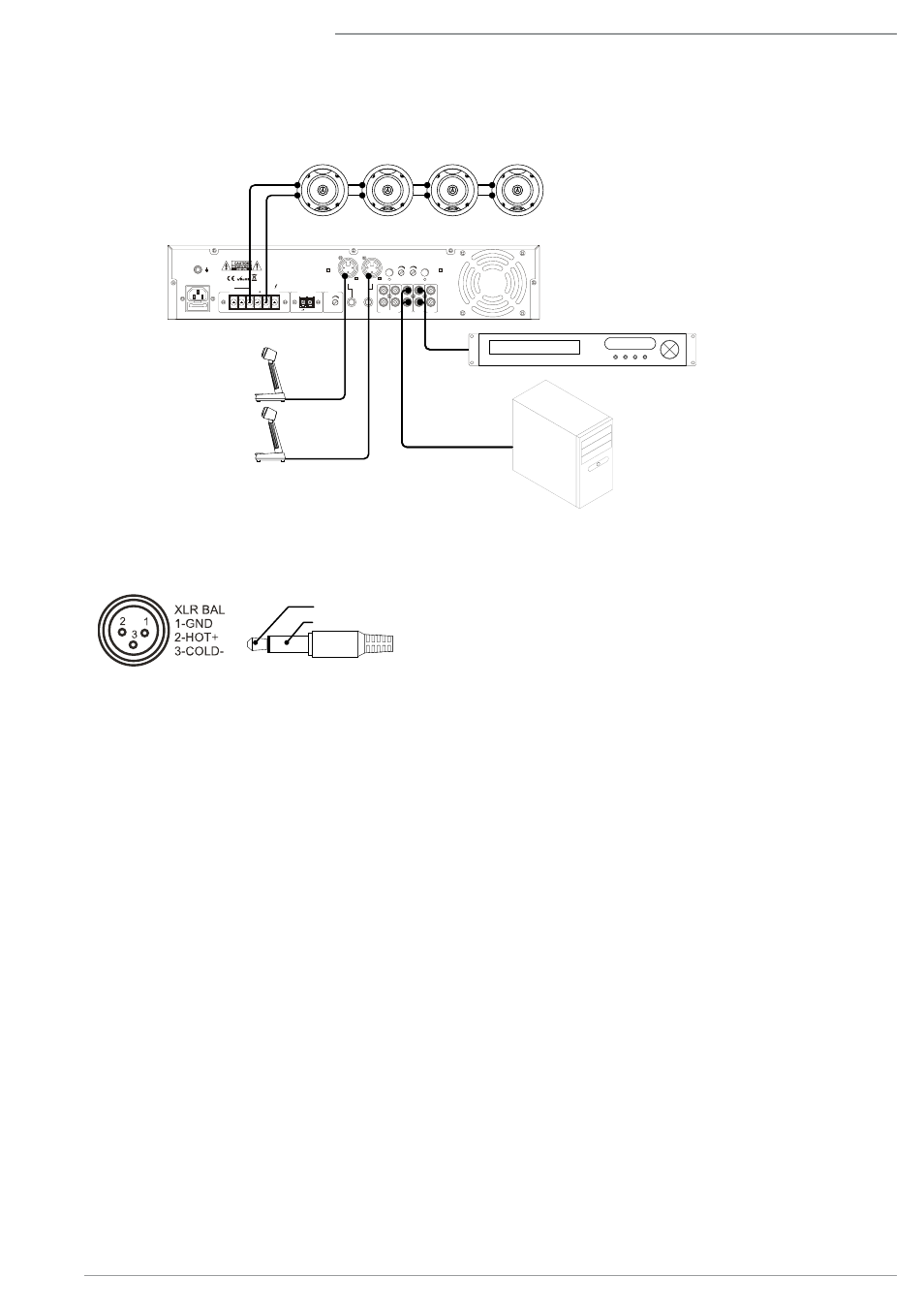

While the ECA-70MIXAMP-1-60 can be used in a variety of configurations, the diagram below shows the basic application.
Multiple ECA-70MIXAMP-1-60 can be used in a system where more audio distribution is needed. This is achieved by using the Unbalanced
Mix Outto the additional amplifiers.
1. Connect the Mix Out to the Aux 1 input of the second amplifier.
2. Repeat for additional amplifiers.
3. Adjust the tone of Amp 1 and then adjust the additional amps in order (Amp 1, Amp 2, and etc.).
XLR Pinouts
Cascading Amplifiers
Tip: Signal
Sleeve: Ground (GND)
