WATTBOX™ 600 SERIES Installation and Users Manual
13
15
16
6
7
8
9
10 11
2
3
4
5
1
14
12
PACKAGE CONTENTS
(1) WB-600-VCE-10 or WB-600-SVCE-12
(1) 6ft Power Cord
(1) Small Rack Mounting Bracket
(1) Large Rack Mounting Bracket
(8) Mounting Bracket Screws

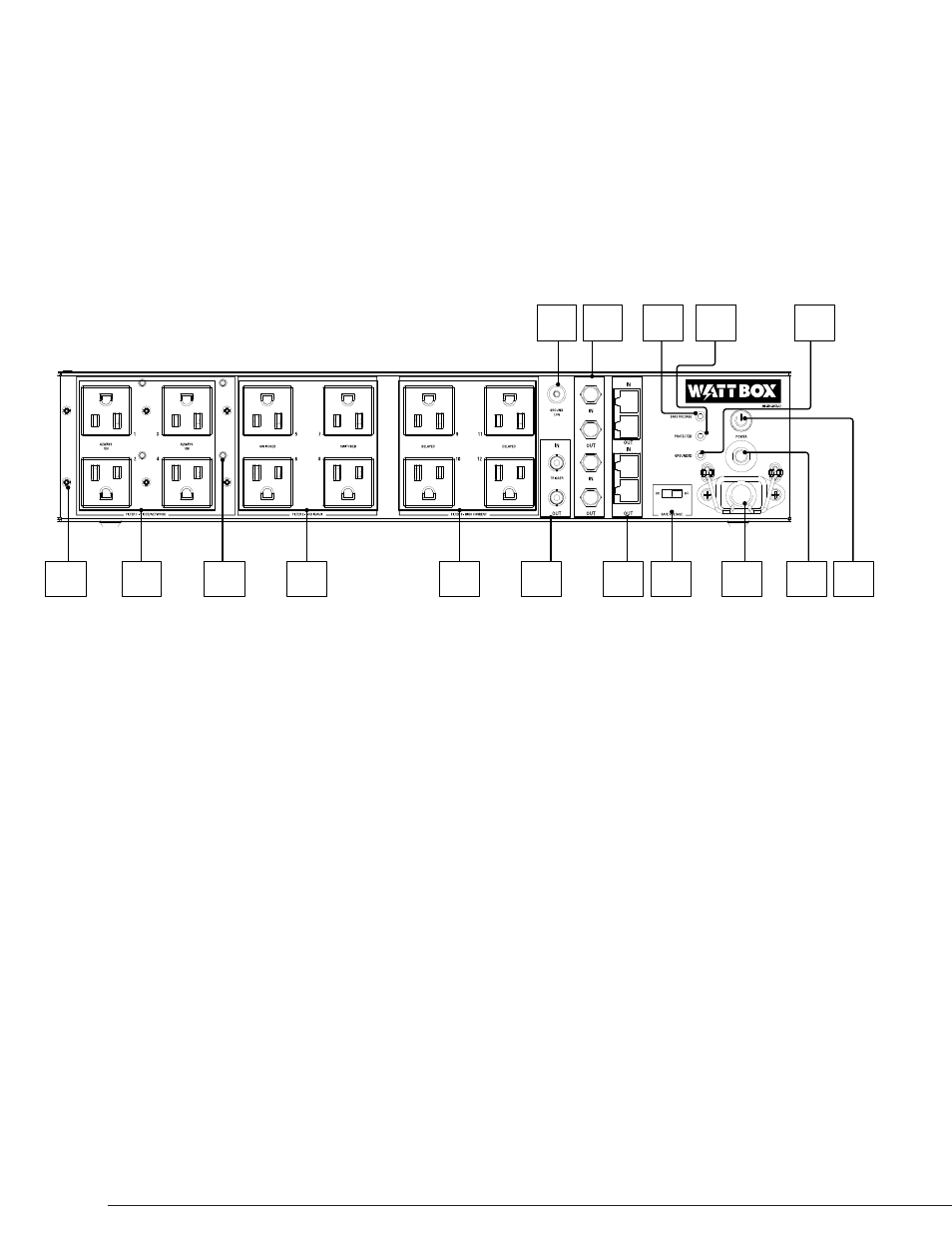

REAR PANEL
1. Ground Lug
2. Protected 3GHz coax connections for cable/satellite
3. Safe Voltage LED indicator light
4. Surge Protection LED indicator light
5. Ground LED indicator light
6. 12V DC Trigger In/Out
7. Protected connections for Ethernet / Telephone
8. Safe voltage switch – Disables Safe Voltage Feature
9. Detachable power cord outlet with locking clip
10. 15 Amp resettable circuit breaker
11. AC Power switch
12. Hook & Loop Strap Lockdown – See Securing Power Adapters on Pg. 5
13. Outlets 1 – 4 – Unswitched (Always On) Isolated Filter for video/network components
14. Power Indicators for Outlets 1-4 – Illuminates when power is ON (x4 – 1 for each outlet)
15. Outlets 5 -8 – Switched Isolated filter for audio/auxiliary
16. Outlets 9 – 12 Delayed/Isolated Filter for high current components
(4) Rubber Feet
(2) Sheets of Power Cord Labels (16 total labels)
(1) Owner’s Manual
(4) Screws, Washers, and Anchors
(6) Power Adapter Hook & Loop Tie Down Straps
WB-600-SVCE-12
