P.O. BOX 2021 • SAN ANTONIO, TX • 78297 • 210-533-1231 • FAX: 210-533-2211 Revised /12
STANDARD FEATURES:
• Bottom door guide
• Door hanger
• Pneumatic emergency release
• Sloped-front cover box
• Hinged cover panel for maintenance access
• Vertical lock bar assembly
• ASTM F1643 Certified
Horizontal and Vertical
Impact Test-Grade 1
• Prime paint finish
OPTIONAL FEATURES:
PILASTER RELEASE – (In lieu of
pneumatic release system.) Hip-high
paracentric keyed mechanical release
mounted in a full-height pilaster adjacent to
the receiving jamb.
Specify “8050LP-1” keyed one side.
ELECTRIC KEYSWITCH – Paracentric or mogul
keyed local electric control switch mounted below
mechanical release mechanism in pilaster.
Specify “8050LPK-1” for paracentric keyed
one side.
Specify “8050LPKM-1” for mogul keyed one side.
HOT DIP GALVANIZED FINISH - Available for exter-
nal applications with lift-off cover panel only. Not
available with standard hinged cover panel. Specify
“G” when ordering. Example: 8050LP-1G
FACTORY-WIRED CONTROL CABLE
Specify “8050LWC.”
NOTE: Cover box minimum length =
(7" overtravel) + (2 x clear opening) + 9".
For doors exceeding 300 lbs. and/or greater
than
’-” clear opening, contact factory.
THREE HOUR FIRE DOOR RATING AVAILABLE.
Standard cover box calculation does not apply to
fire rated doors.
8050L PNEUMATIC
LOCKING SYSTEM
C10

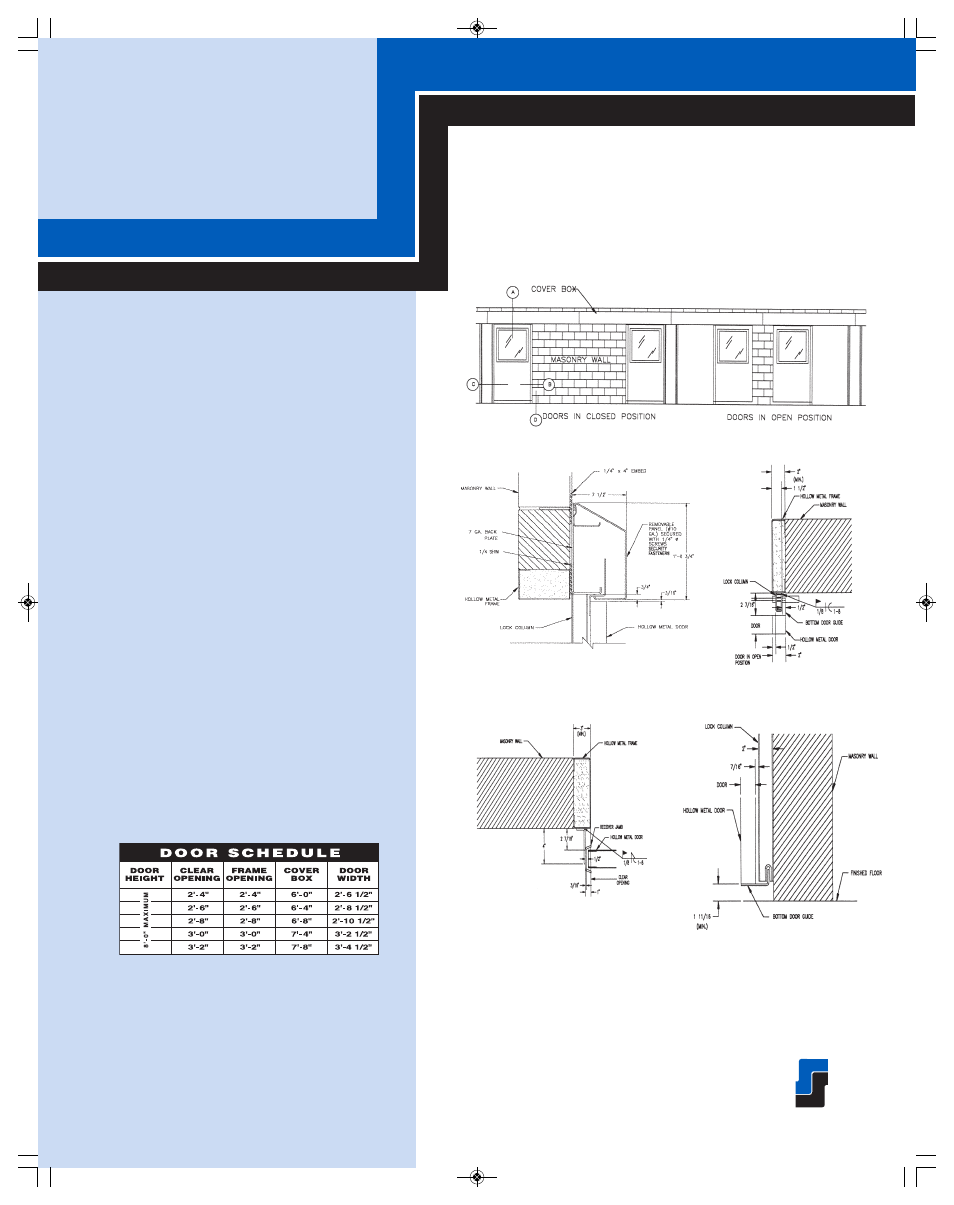

DETAIL A – SLOPED BOX
8050L Shown
Note: Other system configurations and details are available.
Call Customer Service for more information.
DETAIL B – VERTICAL LOCK JAMB BAR
DETAIL D – BOTTOM DOOR GUIDE SECTION DETAIL C – RECEIVER
RECEIVER JAMB SECTION
Flush receiver jamb allows frame
opening and clear opening to
be the same.
8050L PNEUMATIC SLIDING DOOR SYSTEM
COVER BOX SECTION
7-1/2” deep x 1’-0-3/4” tall cover box
field welded 1” on 6” top and bottom
L O C K I N G S Y S T E M S
FOR GROUPS OF
SLIDING CELL DOORS
Maximum security.
