s Emergency manual operation –
In event of power failure, hand crank
operation opens or closes the gate.
s Interlocking – When two or more
operators are used, interlocking
feature allows electrical opening of
only one gate at a time.
s Attachment points – Standard pipe
flanges atop the mechanism track
permit attachment of barbed wire.
Optional Features________
s Operating voltage – 120 VAC, 60 HZ,
1 phase
s Gate width – Operators may be
specified for gate sizes up to 16' high
and 30' wide.
s Control station – Three push buttons
(OPEN-CLOSE-STOP) provide remote
operation. Red and green indicator
lights show open and closed
condition (respectively) of gates.
s Custom graphic consoles – In many
cases, operators are merely one part
of a complete security system. For
these larger installations, or those with
particular needs, custom-built
consoles or touchscreen controls may
be easily provided with floor plan and
special feature graphics.

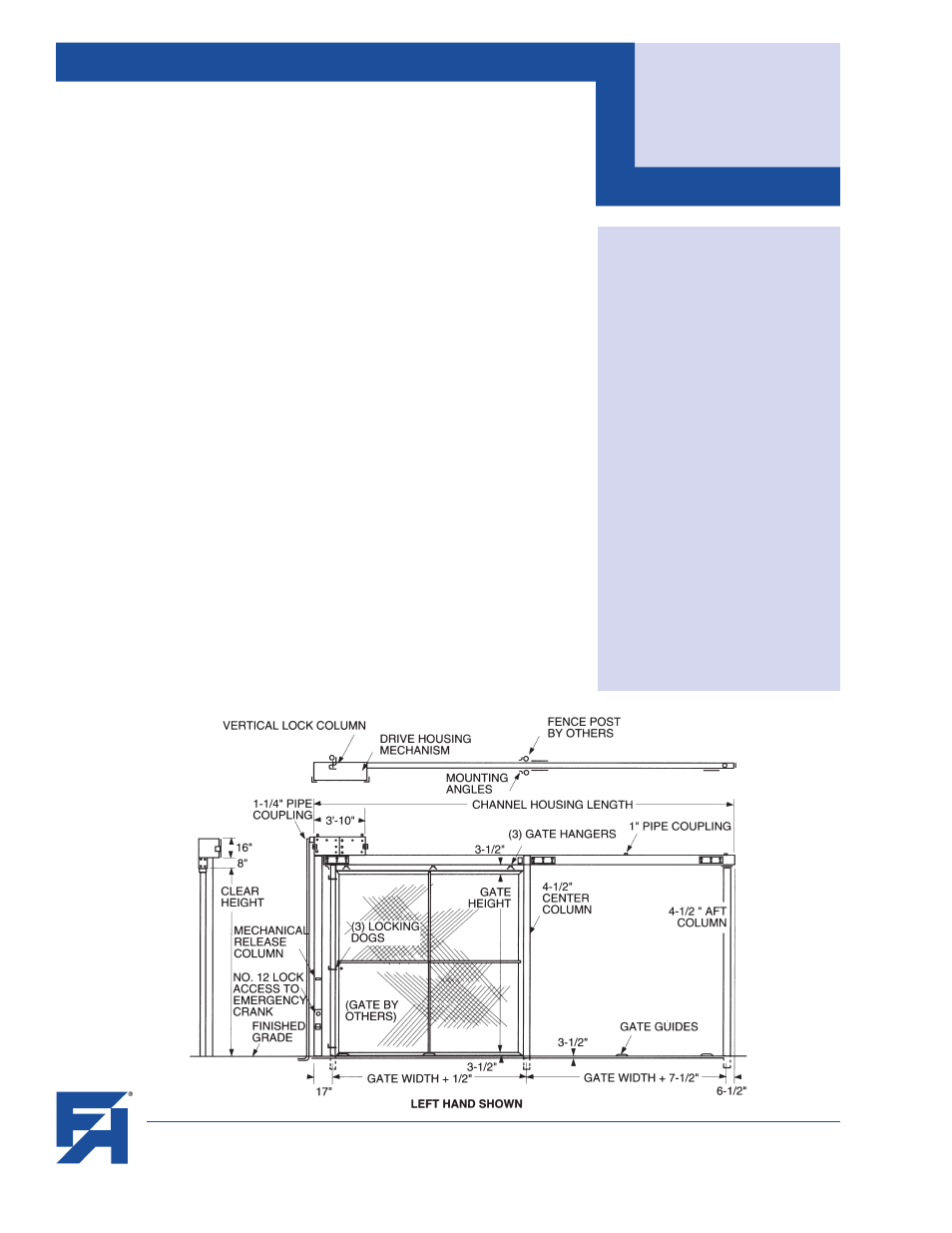

Dimensional Data_______
Note: Dimensions are for information
and planning purposes only, and should
not be used as templates.
The illustration shown is intended for general
information and planning purposes only. Folger
Adam locking devices are fabricated to the
design of the facility.
Specifications_________
s Drive system –
Type: Roller chain.
Roller chain: #40 size.
Motor: 208 VAC, 60 HZ,
3 phase 1/3 HP.
Motor housing: 7-gauge steel.
Cover: 10-gauge steel.
Support structure: Two 8" x 13.75"
steel channels.
Center and aft support columns:
4-1/2" OD x 4" ID.
Locking column: 4" x 4" x 13"
H-beam.
Emergency release column:
7-gauge steel, hinged access door
equipped with No. 12 Deadlock.
Finish: USP.
FOLGER ADAM LOCKING DEVICES Drive: Roller Chain
Release: Remote Electric &
Local Mechanical
Security
Level:
Medium
J OPERATORS
SLIDING FENCE GATE
