LevelOne KVM-9005 - Manual

KVM-9005
KVM Cat5 Extender
Model No:
KVM-9005 -----
1) KVM-9005T: Transmitter
2) KVM-9005R: Receiver
Introduction:
KVM Cat5 Extender is designed to control the PC, Server or KVM Switch
up to 500 feet away from your Keyboard, Mouse and VGA monitor.
KVM-9005T transmitter is to synthesize the signals of PS/2 keyboard,
PS/2 mouse, and VGA monitor for being easily transmitted to a long
distance over popular Ethernet CAT5 cable. KVM-9005R receiver is to
take the synthetic signal and return it back to the signal s of PS/2 keyboard,
PS/2 mouse and VGA monitor respectively.
KVM-Cat5 is a good solution for those noisy server room environment
where is unsuitable for people to work for a long time, besides, it
facilitates effective management on dispersive computers through one
dedicated central control room, demonstration room, meeting room, or at
your desk. CAT5 STP cable (Shielded Twisted Pair)/ UTP cable
(Unshielded Twisted Pair) or enhanced cable like CAT5E/CAT6 cable is
applied to LAN network popularly. KVM-9005 uses the same existing
network construction to transfer local console signal to remote side.
KVM-9005 allows you to move your console, i.e. Keyboard, Mouse and
VGA monitor, to a suitable place for centralized control conveniently over
LAN network. You just need to install a pair of extender, the transmitter
and receiver, into local side and remote side respectively. It also saves
your cable layout and installation cost.
Features:
Compact desktop size
Work with single PC, as well as the console port and PC port of KVM
Switch
Work with CAT5, CAT5e, or CAT6 Ethernet cable
Distance up to 500 feet
Support standard 3-in-one KVM switch cable
Easy to install and friendly to set up the video signal via adjustable
knobs.
Compatible with DOS, MS Windows, Linux, Unix, and Netware
No software required
High VGA resolution up to 1280 X 1024 (CAT5 cable up to 500 feet
approximately)
LED indications for Power on/off and data transmission
Technical specifications
Package contents
Model no.: KVM-9005
KVM-9005T transmitter 1 pc
KVM-9005R receiver 1 pc
KVM 3-in-one cable 1 pc
Power adapter DC9V,500mA 1 pc

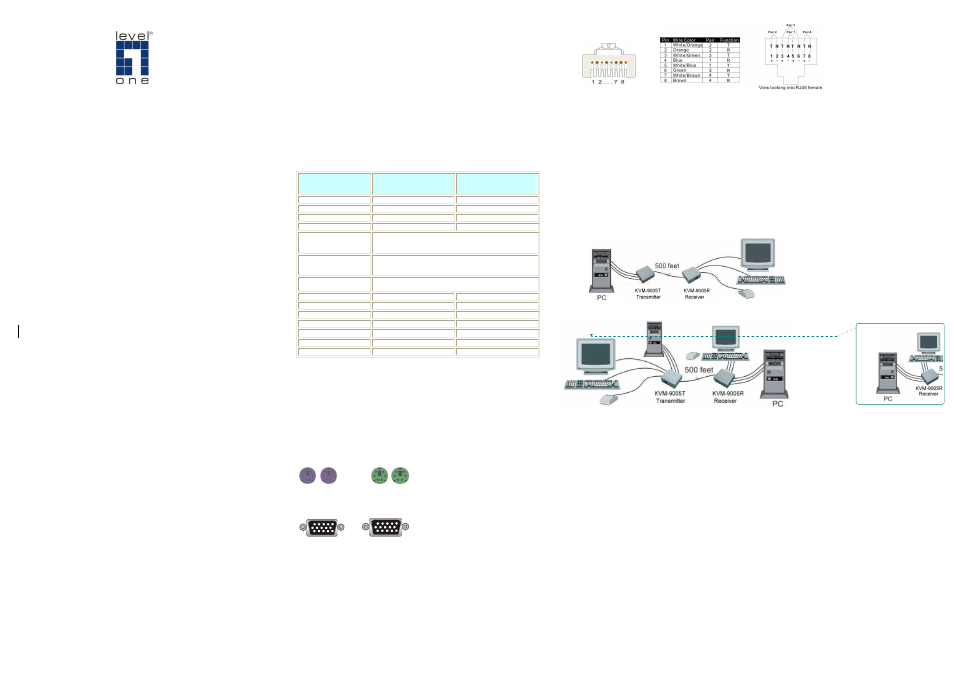

Cable Diagram
PS/2 Cable:
Mini Din 6 pin Male to Male
VGA Cable:
HDDB15 pin Male to Male
CAT5/5E/6 Straight Through STP (Shielded Twisted Pair) or UTP
(Unshielded Twisted Pair) Cable:
8P8C
Installation:
Before installation, please make sure to turn off all of peripherals and
computers have; and follow the procedures to install your conditions
correctly:
Adjust the “KNOB“ on the top of KVM-9005R receiver for optimal VGA
display quality, which is various because of cable characteristic, such as
the length, category, shielded, and unshielded. Turn on “DIP SWITCH 1
and 2” on the side of KVM-9005T, if the CAT5 cable is longer than 300
feet. The factory default value of “DIP SWITCH 1 and 2” is OFF.
1. Extending your PC console up to 500 feet away:
1.1. Connect PC console port with KVM–9005T transmitter “PC port” by
using standard 3-in-one KVM switch cable (male to male). Normally,
all of connectors are PC99 standard --- PS/2 purple mini-din 6 pin
for keyboard, PS/2 green mini-din 6 pin for mouse and blue HDDB
15 pin for VGA.
1.2. Connect another PC console port with KVM-9005R receiver “PC
port” by using standard 3-in-one KVM switch cable (male to male).
1.3. Connect CAT5 cable plug to RJ-45 connector of KVM-9005T
transmitter.
1.4. Connect CAT5 cable plug to RJ-45 connector of KVM-9005R
receiver.
1.5. Connect Keyboard, Mouse, and Monitor to KVM-9005T transmitter
“console port.”
1.6. Connect Keyboard, Mouse, and Monitor to KVM-9005R receiver
“console port.”
Functions KVM-9005T
Transmitter KVM-9005R
Receiver
PS/2 Keyboard port 2 2
PS/2 Mouse port 2 2
VGA monitor port 2 2
RJ-45 port 1 1
Console port connector
(all female type) PS/2 purple mini-din 6 pin for keyboard
PS/2 green mini-din 6 pin for mouse
VGA blue HDDB 15 pin
PC port connector or KVM
switch console port connector
(all female type) PS/2 purple mini-din 6 pin for keyboard port
PS/2 green mini-din 6 pin for mouse port
VGA blue HDDB 15 pin
RJ-45 port connector
8P8C ( same as Ethernet 100BaseT port)
LED Power, Data PC1,PC2
Knobs ( for VGA tuning ) No 1
300 feet segment DIP switch 1 No
Size Desktop Desktop
Power adapter No need DC9V, 500mA
Weight (g) 134g 150g
Dimension (mm) 111.5(L) x 75(W) x 35.5 (H) mm 117(L) x 80(W) x 39.5 (H) mm
