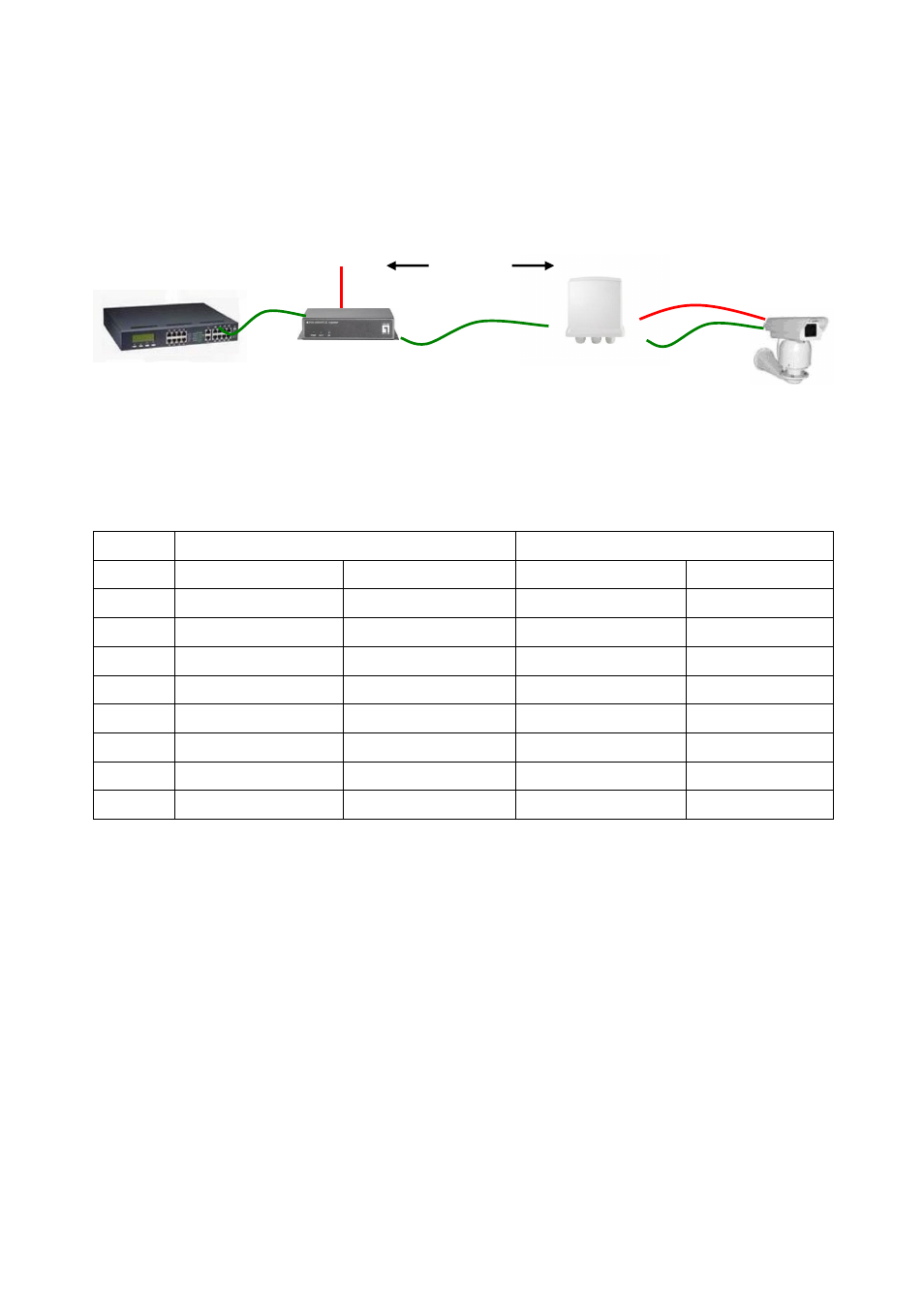

Application Diagram:
RJ-45 CONNECTOR & PINOUT
RJ-45 Input (Data + Power) RJ-45 Output (Data Only)
Pin Symbol Description Symbol Description
1 Rx+ Data Receive Rx+ Data Receive
2 Rx- Data Receive Rx- Data Receive
3 Tx+ DataTransmit Tx+ Data Transmit
4 -Vdc_return(+) Feeding power(+) NC Not Connected
5 -Vdc_return(+) Feeding power(+) NC Not Connected
6 Tx- Data Transmit Tx- Data Transmit
7 -Vdc Feeding power(-) NC Not Connected
8 -Vdc Feeding power(-) NC Not Connected
V1.0
POI-4000 PoE Injector & POS-4001 Outdoor PoE Splitter
Ethernet Switch
POI-400 POS-4001
100 m
DC
Power
12VDC 2A
(Maximum)
