LevelOne FVT-0103TXFC User Manual
Page 5
3.
Checklist
10/100
Switch
LFP
TP
Before you start installing the FVT-0103TXFC Converter,
verify that the package contains the following:
ۛ 100TX to 100FX SC multi-mode POE Converter
ۛ This User's Manual
Please notify your local dealer if any of the item is missing.
B
LFP
Fiber
●
Cable
A
TP
10/100
Switch
Remote
Station
C
●
●●
●
●
●
4.
Installing the Converter

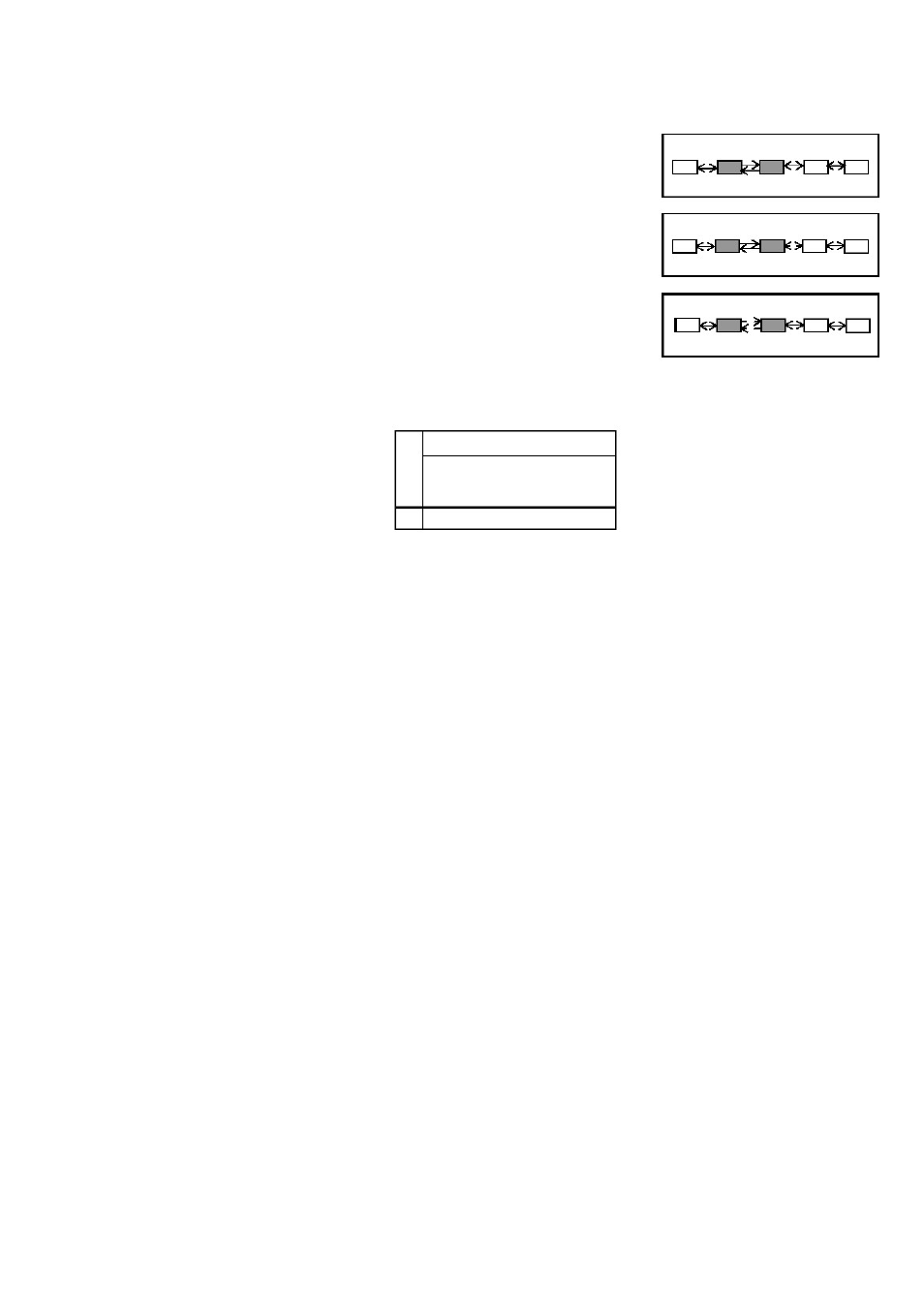

Fig. 7 Normal status via a pair of LFPs
10/100
Switch
LFP
○
TP
TP-Fiber Converter with Power Source Equipment
(PSE) ：
֜ Install the TP media cable to the IEEE 802.3af PSE
device or PoE injector (See Fig. 2)
֜ Install the media cable for network connection
Warning:
ۛ Please make sure that the power of PSE device is turned
on, or else the converter will not work.
ۛ In case that no 802.3af PSE is available or PSE with PoE
power fails, you may install an AC-DC adapter for a
backup solution. Do not connect PSE TP port and AC-DC
adapter at a time. The power adapter is optional, not
included in the standard package. Please contact your
local dealer for purchasing.
֜ Verify that the AC-DC adapter conforms to your
country AC power requirement and then insert the
power plug
֜ Install the media cable for network connection
B
○○
Fiber
Cable
A
LFP
●○
TP
10/100
Switch
Remote
Station
C
○
●
Fig. 8 The status as TP Cable A is broken
10/100
Switch
LFP
TP
B
LFP
Fiber
Cable
A
○○
TP
10/100
Switch
○
Remote
Station
○
○○
C
●
Fig. 9 The status as Fiber Cable B or C is broken
Note : ●
○
Warning:
indicates LNK/ACT LED Lit
indicates LNK/ACT LED Off
Default: AUTO
AUTO or FORCE setting, see Fig. 11 S1—Bit 1
Attach TP Cat. 5 cable to TP port, and the distance
TP
Port can be up to 100m.
Use the straight-through cable to connect the switch
or workstation, the 10/100 TP port can support
AUTO MDI-X sensing.
Fiber Default: 100FDX
Port "100FDX"/"100HDX" setting, see Fig. 11 S1—Bit 5
2
The LFP ( Link Fault Pass Through) function works only
when both two converters own this capability in pairs.
Furthermore, both LFP converters should be supplied only
by the same manufacturer/vender. The connection coming
from LFP converters with odd models or non-LFP
converters will cease the LFP function.
7
