Page 60: 2 stp summary

4. If the TxHold Count parameter is too large, the number of MSTP packets being sent in each

hello time may be increased with occupying too much network resources. The default value is
recommended.

7.1.2 STP Summary

On this page you can view the related parameters for Spanning Tree function.

Choose the menu Spanning Tree

→STP Config→STP Summary to load the following page.

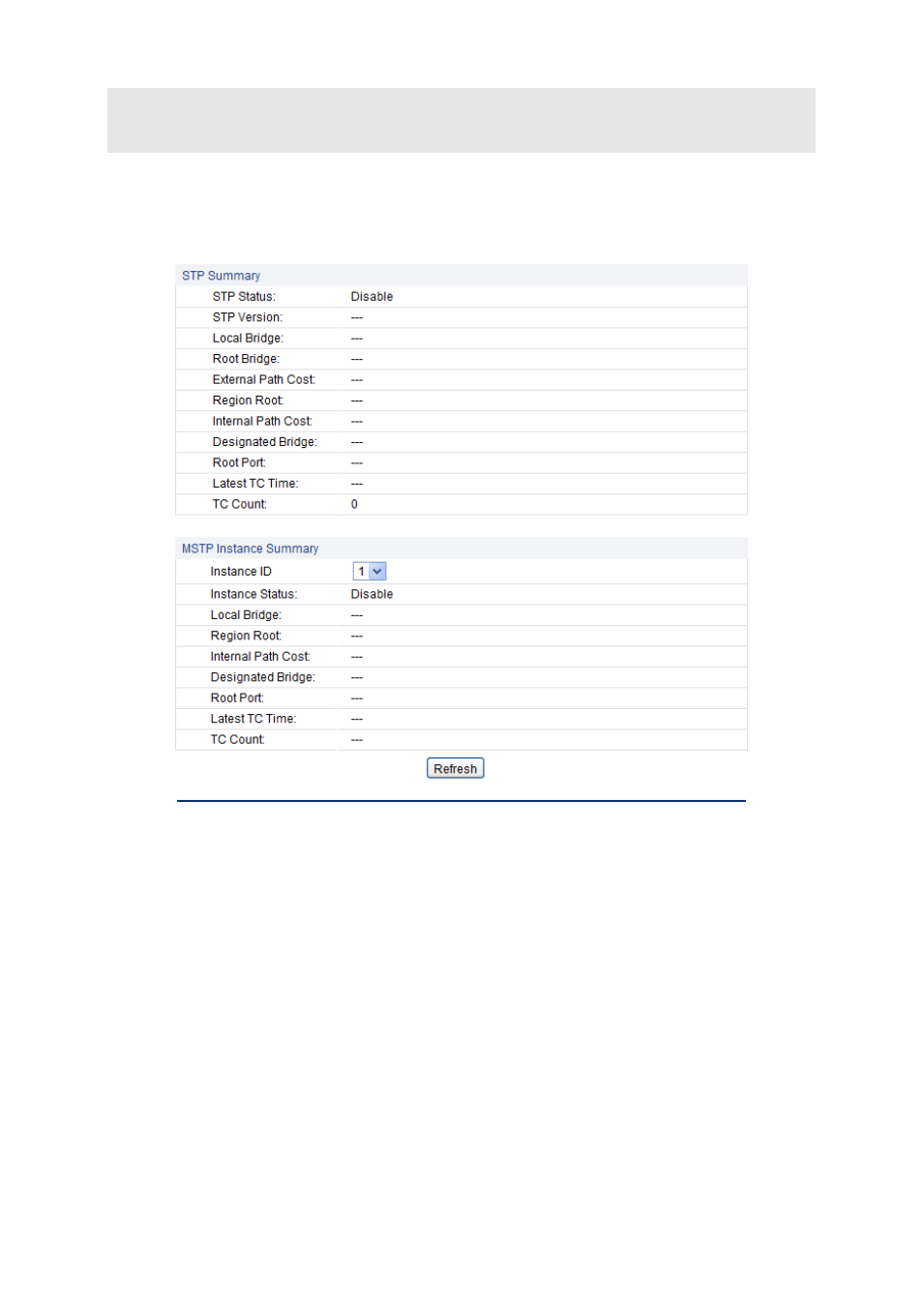

Figure 7-5 STP Summary

7.2 Port Config

On this page you can configure the parameters of the ports for CIST

Choose the menu Spanning Tree

→Port Config to load the following page.
