Port – LevelOne GES-0852 User Manual
Page 14

14
Port

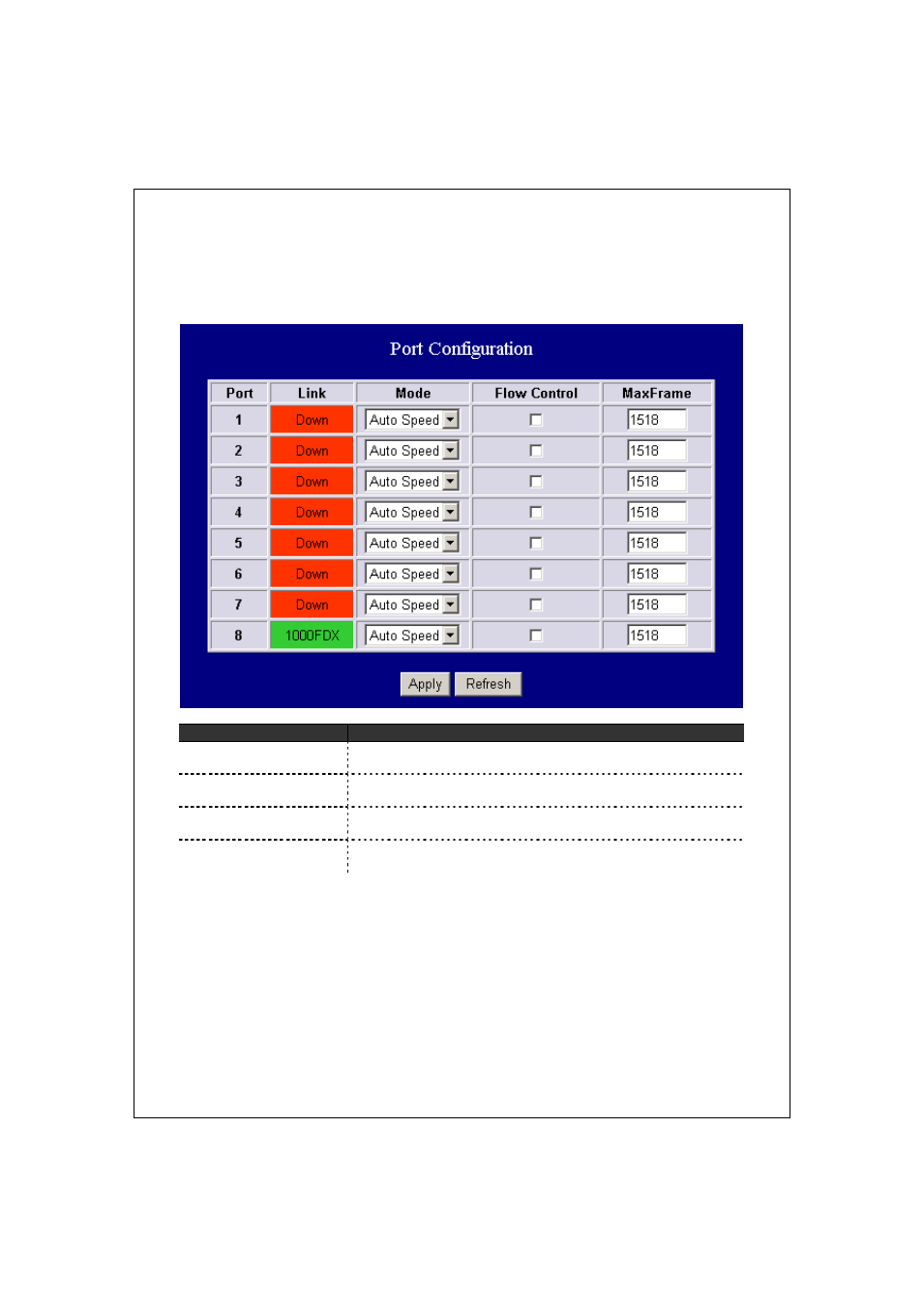

This “Port Configuration” page shows the link status of each port and allows users
to configure speed, flow control and Max frame size for each port.
Items
Functions
Link
Shows the link status of each port. The column lights green with
the link speed while there is valid connection on this port.
Mode
Select a speed for this port. “Auto Speed” enables
auto-negotiation. “Disable” stop the port from functioning.
Flow Control
Mark the checkbox to enable the FDX Flow control, or unmark
to disable.
Max Frame length
To adjust the size of Jumbo Frame. The length is 1518 bytes.
The Maximum value can be up to 9600 bytes.
To save the configuration of the system, click “Apply” to save. You can also click the
“Refresh” button to see the latest status of each port.
