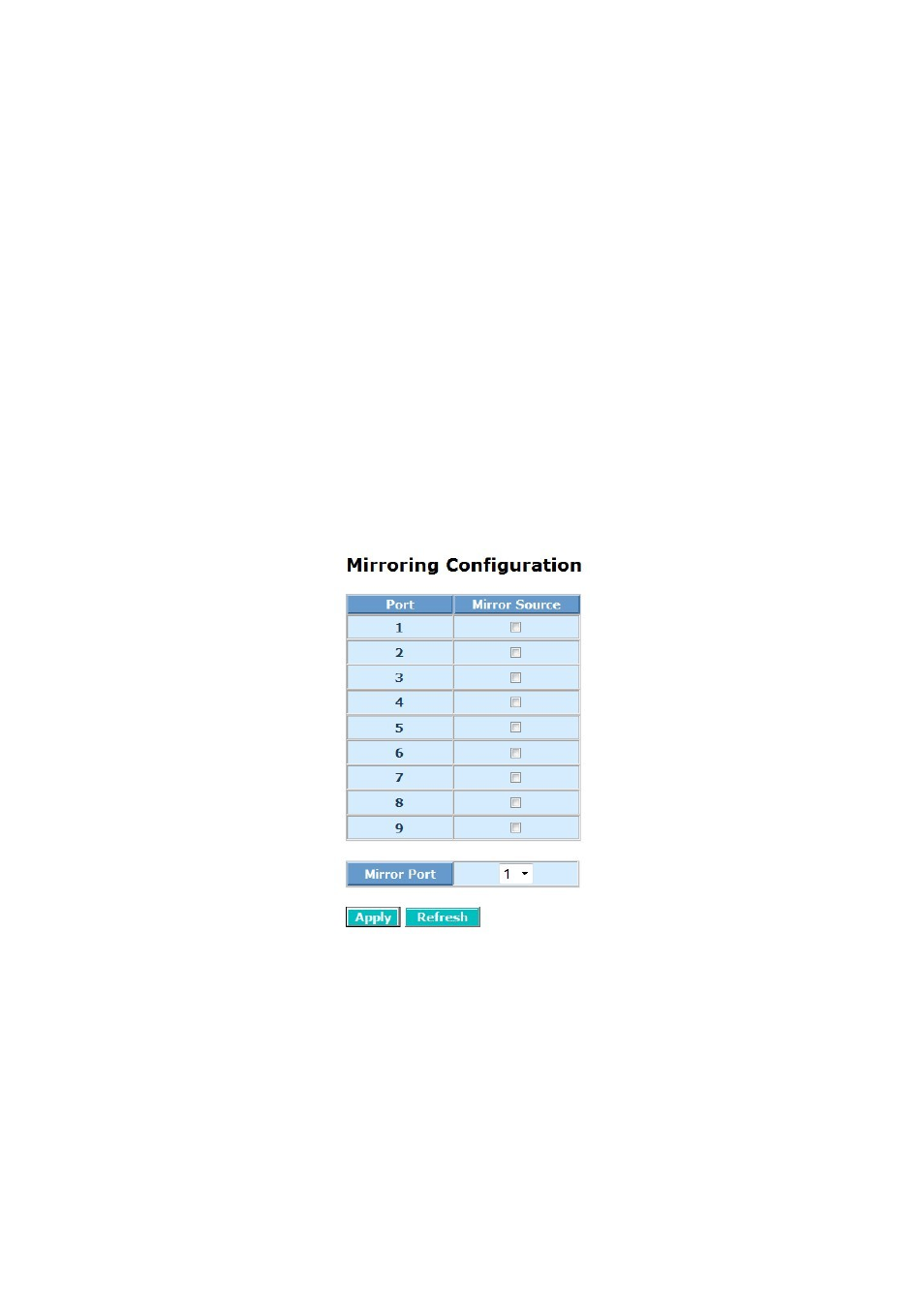

4-2-13. Mirroring Configuration
Function name:
Mirror Configuration
Function description:
Mirror Configuration is provided to monitor the traffic in the network. This
switch supports one-port mirror multi-ports. For example, we assume that Port
A and Port B are Source Ports, and Port C is Mirror Port respectively, thus, the
traffic passing through Port A and Port B will be copied to Port C for monitor
purpose.
Parameter description:
Source Port:
Set up the port for being monitored. Just tick the check box ( ) beside the
port x and valid port is Port 1~9.
Mirror Port:
Use the drop-down menu to select a mirror port.
