125
Function name:
802.1x State Setting
Function description:
This function is used to configure the global parameters for RADIUS
authentication in 802.1x port security application.

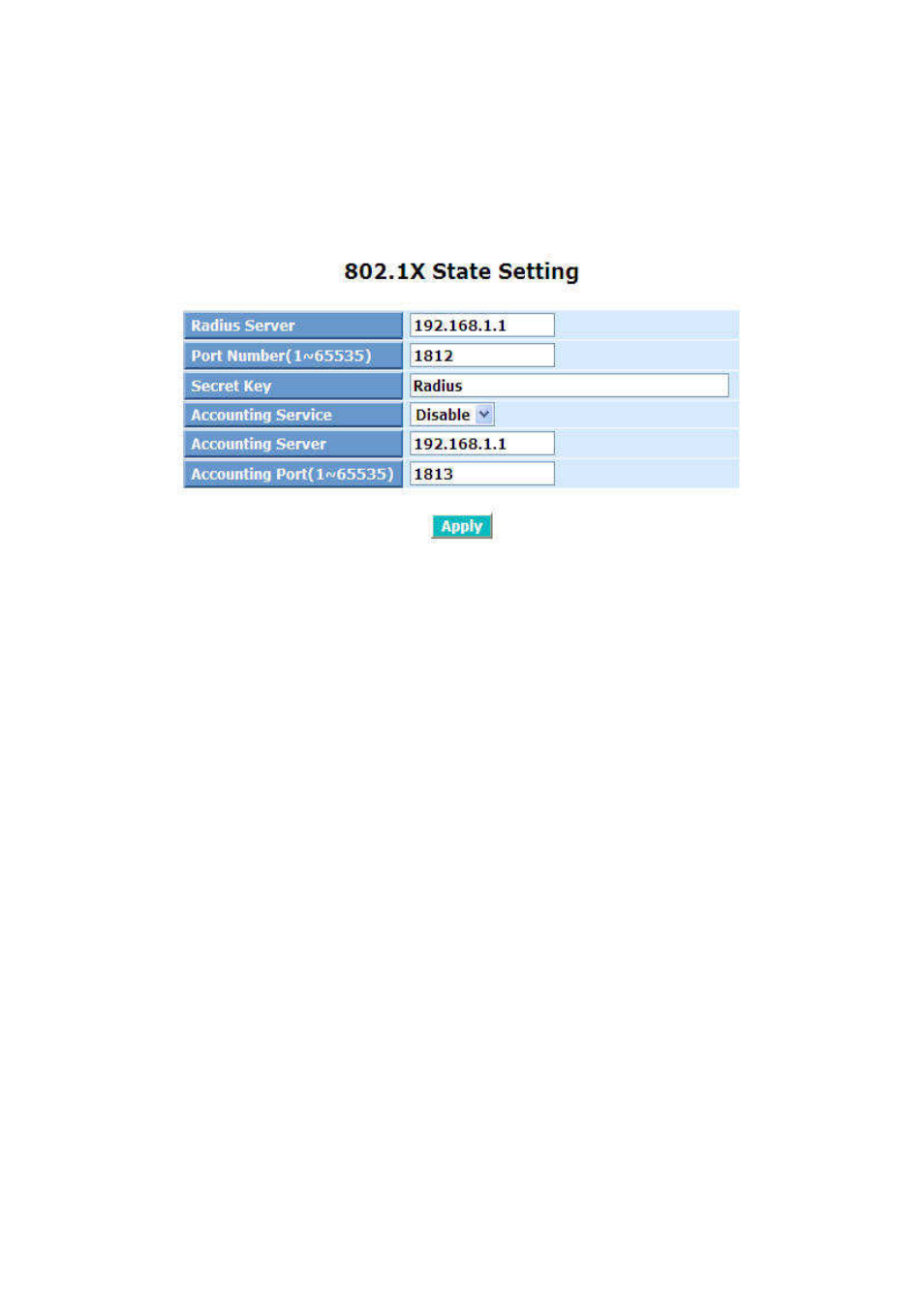

Fig. 3-46
Parameter description:
Radius Server:
RADIUS server IP address for authentication.
Default: 192.168.1.1
Port Number:
The port number to communicate with RADIUS server for the
authentication service. The valid value ranges 1-65535.
Default port number is 1812.
Secret Key:
The secret key between authentication server and authenticator. It is a
string with the length 1 – 31 characters. The character string may contain
upper case, lower case and 0-9. It is character sense. It is not allowed for
putting a blank between any two characters.
Default: Radius
Accounting Service: To enable or disable the accounting function.
Accounting Server
Server IP Server:
Server IP address for authentication.
Default: 192.168.1.1
UDP Port:
Default port number is 1813.
