Page 34

FCS-0071 User’s Manual

6. Once everything is done, click on [Save] to save the configuration made.

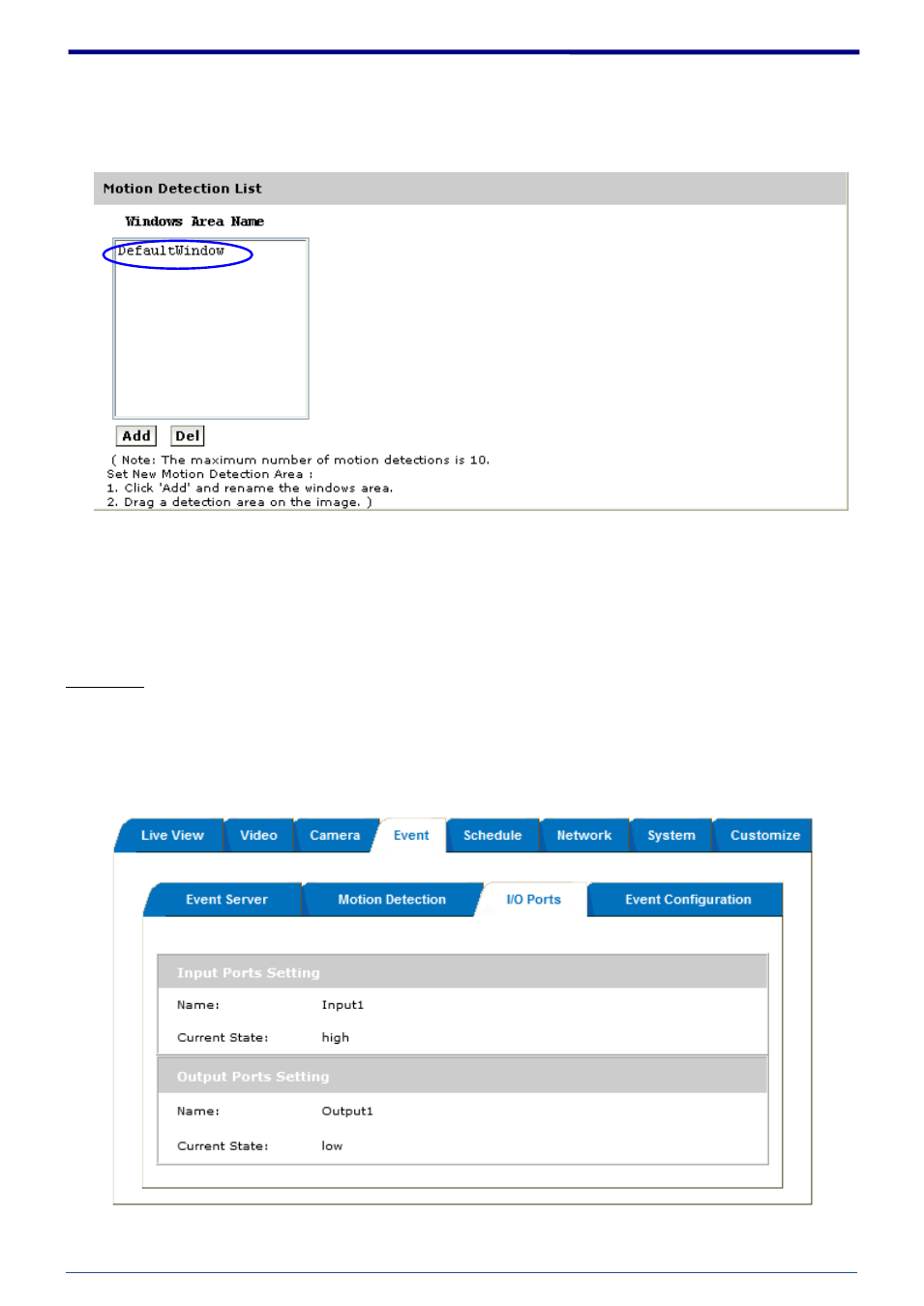

Configured detection window will be displayed in motion detection list. (Circled in blue)

Note:

1. Maximum number of detection window is 10.
2. Motion Detection windows need to be modified if users changed video layout.

I/O Ports

This model supports 1 photo-coupled relay inputs and 1 relay outputs,

see “I/O Terminal Connectors” for detail pin

description and application. The tab shows the status of them; with external trigger/alarm devices.
