LEESON Chassis Mount SCR Control - Manual (Page 13)

7 Dimensions SPEEDMASTER™ OPERATION MANUAL
10.20 [259]
6.90 [175]
6.30 [160]
1.37 [35]
9.76 [248]
7.00 [178]
4.78 [121]
2.37 [60]
5.49 [139]
0.13
[3]
2.50
TWO 0.88 [22] KNOCKOUTS
ALL DIMENSIONS IN INCHES [MILLIMETERS]
[64]
0.19
[5]

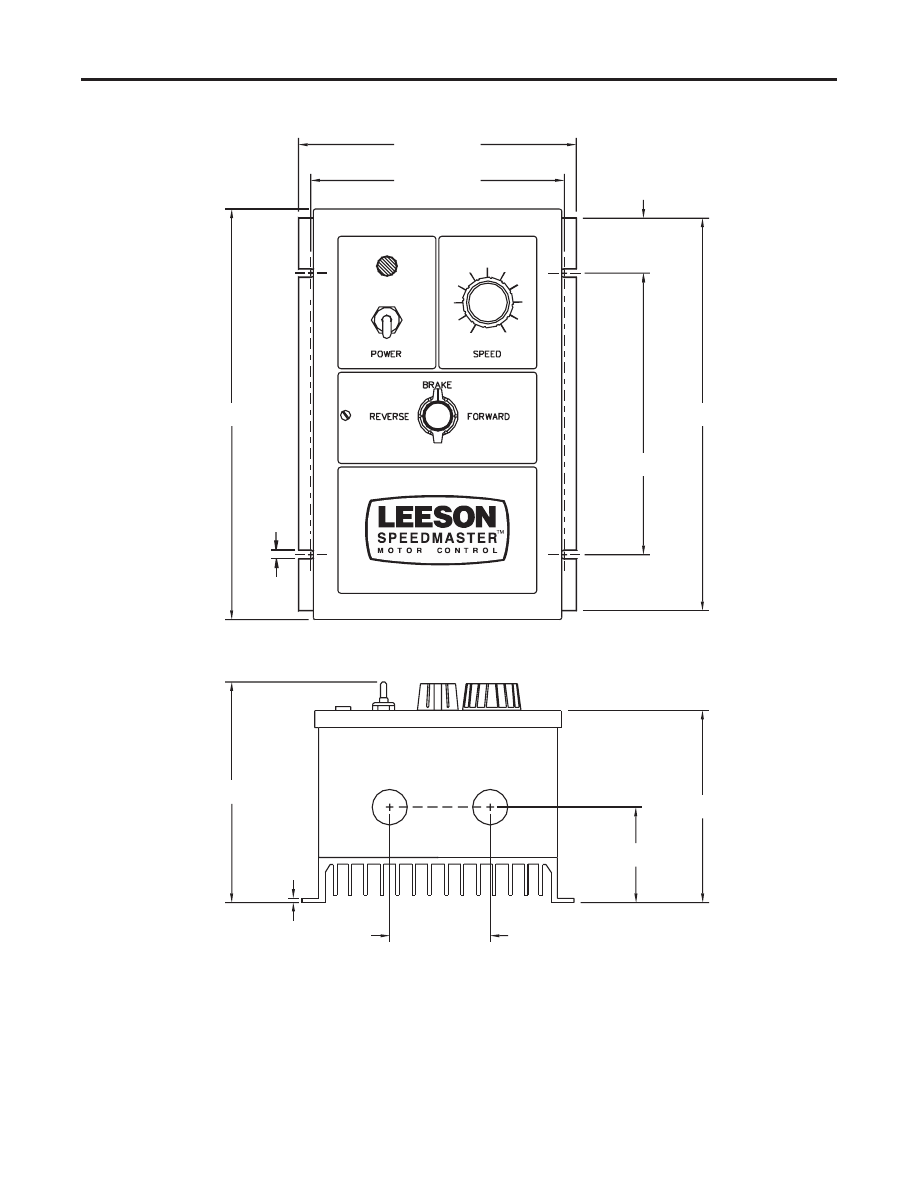

Figure 5. 174105 Dimensions
