Operation, Before applying power, Warning – LEESON Chassis Mount SCR Control User Manual
Page 31: Figure 14. voltage switches, Speedmaster™ operation manual
Text mode
Original mode

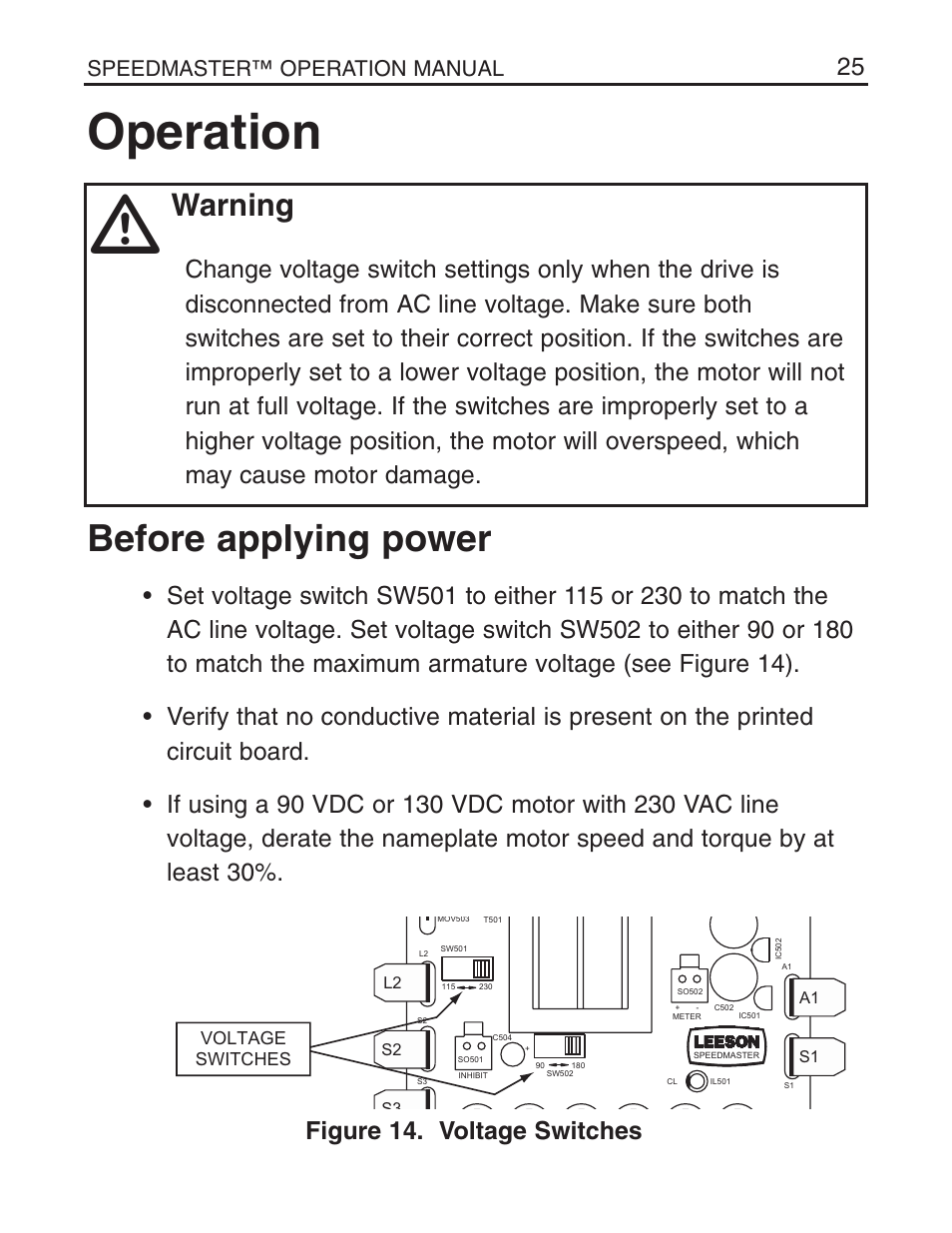

Operation, Before applying power, Warning | Figure 14. voltage switches, Speedmaster™ operation manual | LEESON Chassis Mount SCR Control User Manual | Page 31 / 60
