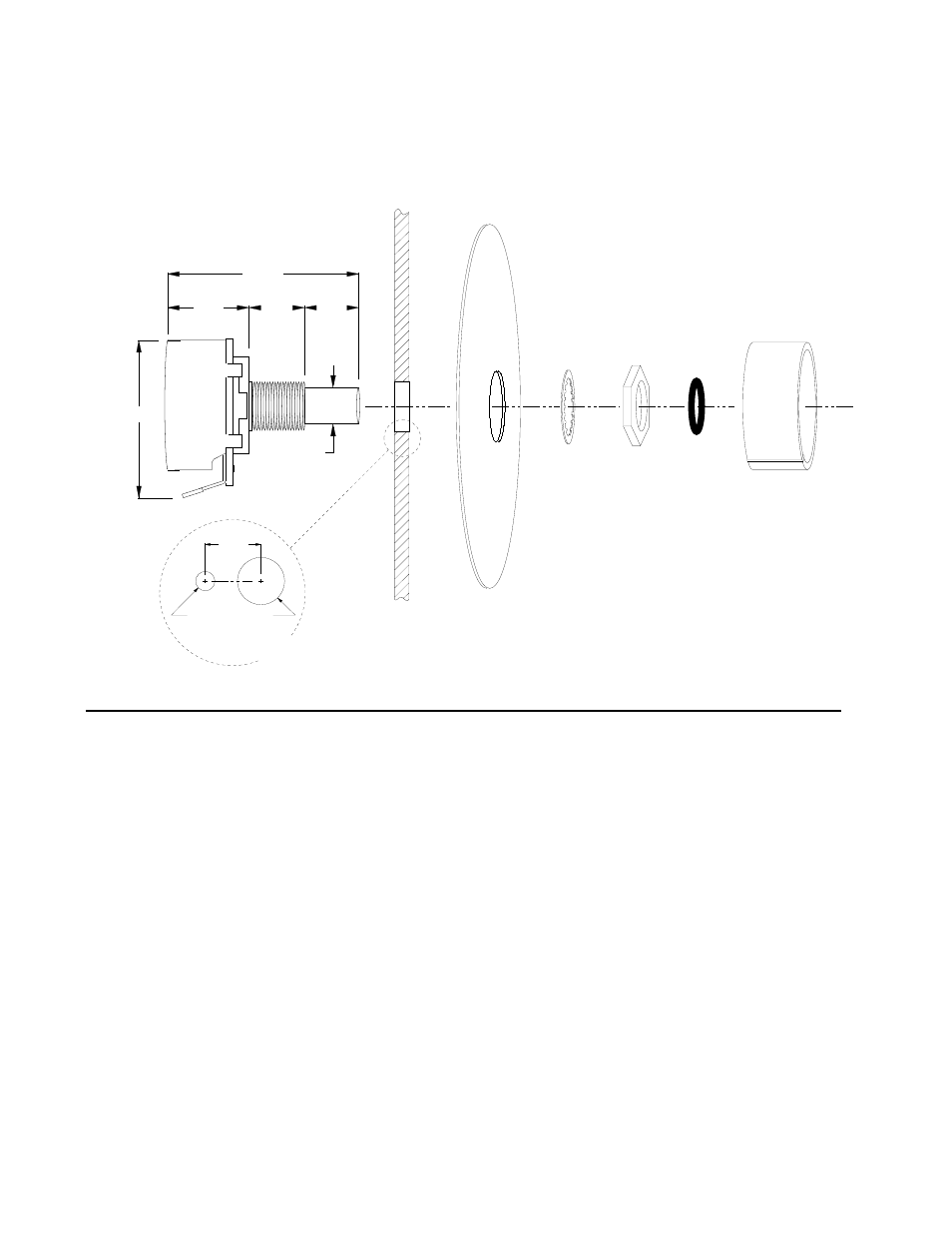

SPEEDPOT

(5K 2W)

CUSTOMER'S

MOUNTING BRACKET

DIALPLATE

2.00" dia.

LOCK

WASHER

O-RING

HEX NUT

SPEEDPOT

KNOB

.437

3/8

DIA.

5/32
DIA.

SPEEDPOT LOCATOR HOLE DIMENSIONS

.500

.370

1.240

1.250

.250 Dia.

SPEEDPOT DIMENSION INFORMATION

In normal operation this control needs no routine maintenance. The cover may be cleaned with
a mild detergent. Solvent type of cleaners should not be used.

MAINTENANCE PROCEDURE
