LEESON Micro Series Quick Reference Guide - Manual (Page 2)

STOP 20.00 HZ
PROG
RUN
AUTO
MAN
START
ENTER
FWD
REV
STOP
Press the START key to start the drive. The START key
is only active in LOCAL mode.
PROGRAMMING THE MICRO SERIES
1. Press the PROG/RUN key. This will cause the PASSWORD
prompt to appear (unless the password protection has been dis-
abled), as shown below:
PASSWORD 0000
CURSOR
2. Use the ARROW keys to scroll to the correct password value
(the factory default password is 0019) and press ENTER. The
PROGRAM mode will be entered at the start of the parameter
menu. A cursor will highlight the parameter name.
3. Use the ARROW keys to scroll to the desired parameter and
press ENTER. The cursor will shift from the parameter name
to the parameter value, as the example below illustrates:
ACCEL 30.0 SEC
CURSOR
ENTER
4. Use the ARROW keys to scroll to the desired parameter value,
and press ENTER to store the new value.
5. Press PROG/RUN to exit the PROGRAM mode.
START

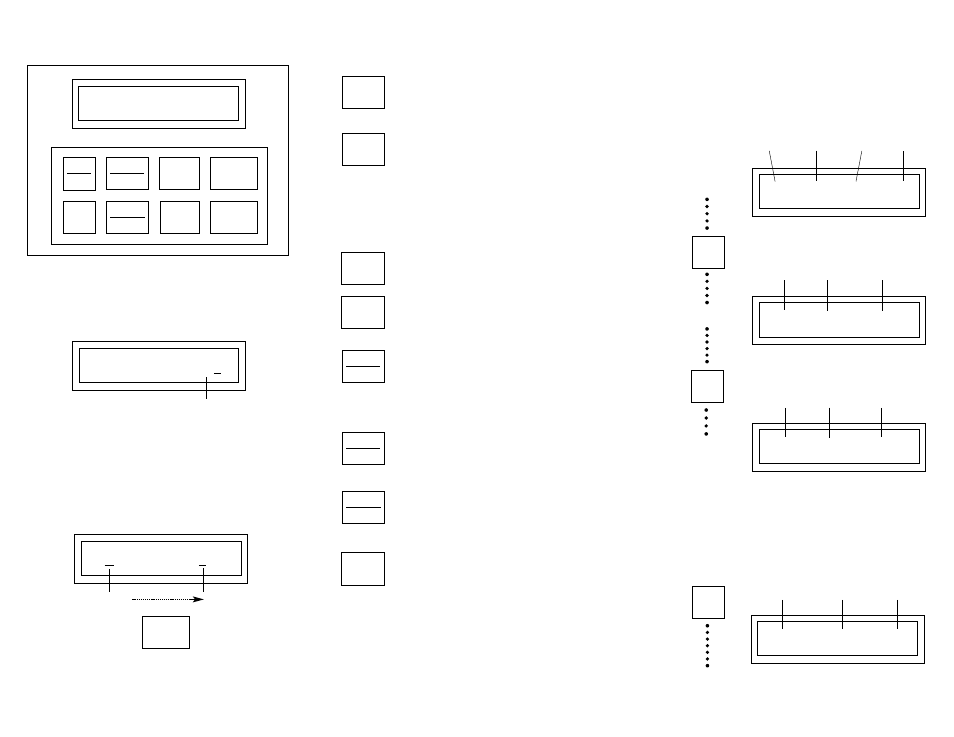

MICRO SERIES KEYPAD FUNCTIONS
Press the STOP key to stop the drive.
NOTE: The STOP key is active in both LOCAL and
REMOTE mode.
The STOP key is also used to reset faults. If the fault
condition has passed, pressing the STOP key will clear
the fault and return the drive to a STOP condition.
STOP
UP and DOWN ARROWS — Used to change the speed
setpoint in MANUAL mode, scroll through the para-
meter menu, and change parameter values.
Toggles between AUTOMATIC (terminal strip) and
MANUAL (keypad) speed control.
NOTE: Parameter 28 — AUTO/MAN must be set to
BOTH for this key to be active.
AUTO
MAN
Toggles between forward and reverse directions.
ENTER key must pressed.
FWD
REV
Used to enter and exit the PROGRAM mode to set the
parameters. PROG
RUN
ENTER
Used for: toggling the display between SPEED, LOAD,
and MOTOR VOLTAGE; confirming new parameter
values; confirming AUTO and MANUAL speed control
selections.
MICRO SERIES DISPLAYS
Shown below are examples of MICRO SERIES displays. To scroll
through the SPEED, LOAD, and MOTOR VOLTAGE displays,
press and release the ENTER key.
RUN  60.00 HZ
DRIVE
STATUS
SPEED
SETPOINT
SPEED
UNITS
RUN  85% LOAD
DRIVE
STATUS
PERCENT
LOAD
RUN  460 VAC
DRIVE
STATUS
MOTOR
VOLTAGE
MOTOR VOLTAGE
DISLAY
ENTER
ENTER
SPEED DISPLAY
LOAD DISPLAY
Press and hold the ENTER key to activate the AUXILIARY
MODE, which will toggle to a CONTROL DISPLAY. An example
is shown below:
ENTER
PRESS
& HOLD
LOCAL -- AUTO -- IDC
DRIVE
STATUS
MOTOR
VOLTAGE
SPEED
REFERENCE
SOURCE
AUXILIARY MODE
CONTROL DISPLAY
MICRO SERIES KEYPAD
ROTATION
DIRECTION
ROTATION
DIRECTION
ROTATION
DIRECTION
