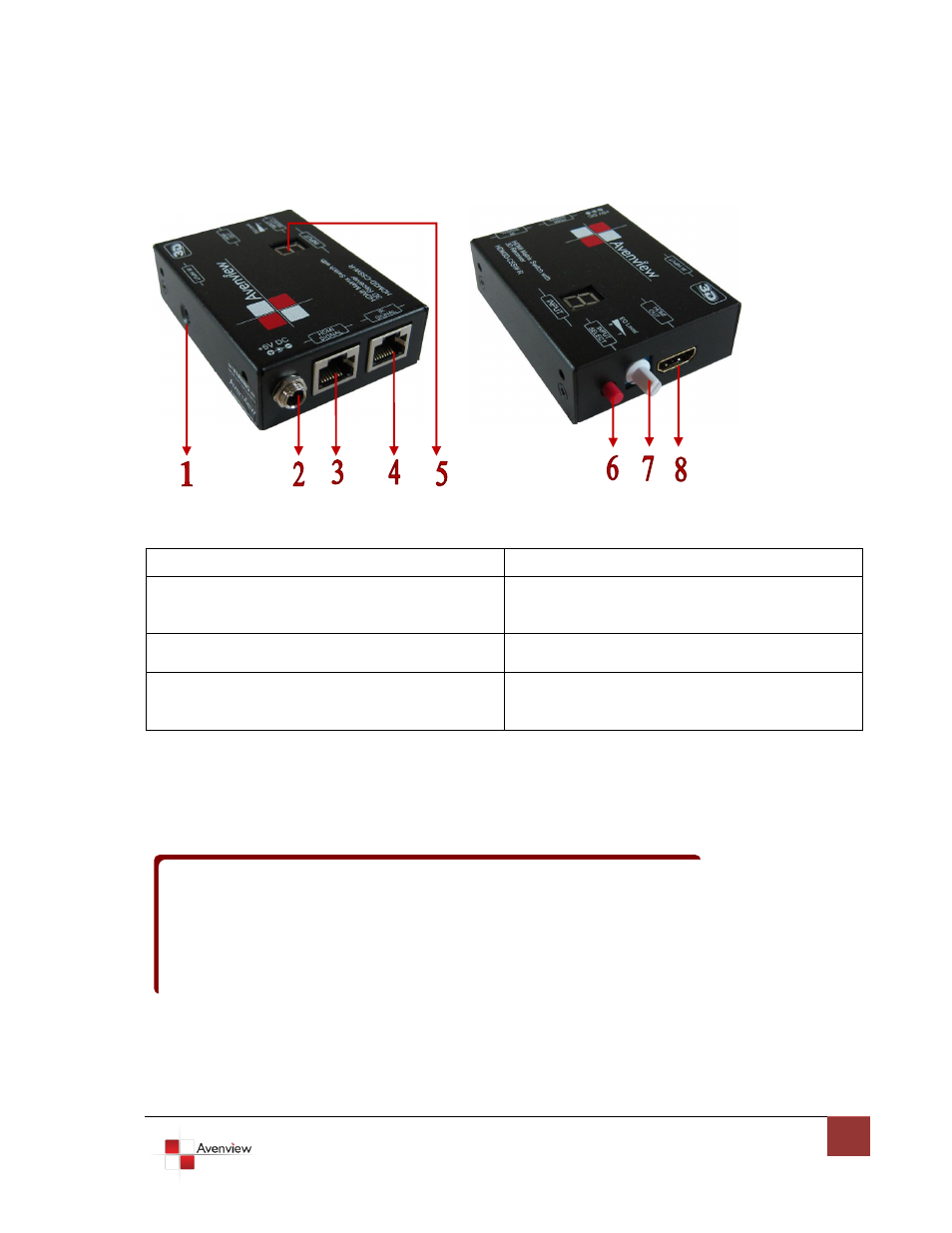

1.7.3 HDM3D-C5SW-R
1. IR Receiver: Plug in IR receiver 2. 5V DC Power jack
3. HDMI Signal Input: Plug in CAT 5/6
4. IR signal: Plug in the CAT5/6 connected
from the respective IR signal port on the
SW-HDM3D-C5-8X8.
5. IN Put Channel: Displays the current
HDMI Source
6. Input Select: Push button for switch
Input source channel in sequential order
7. Signal Level 0 – 7: Adjust the 8-level
equalization control to the received
HDMI signals.
8. HDMI Output: Connect HDMI cable to
HDMI Display
EQ Level (Signal Level 0 – 7)
Adjust the 8-level equalization control to the received HDMI signals. The HDMI signal level varies from 0
(strongest) to 7 (weakest) for respective transmission length from longest possible range to short distance.
Please adjust the signal level from 7 to 0 and stop turning the rotary switch whenever the audio/video is
playing normally. Inappropriate signal level setting may cause overpowering issue that would shorten the
product life significantly!
