www.avenview.com 7

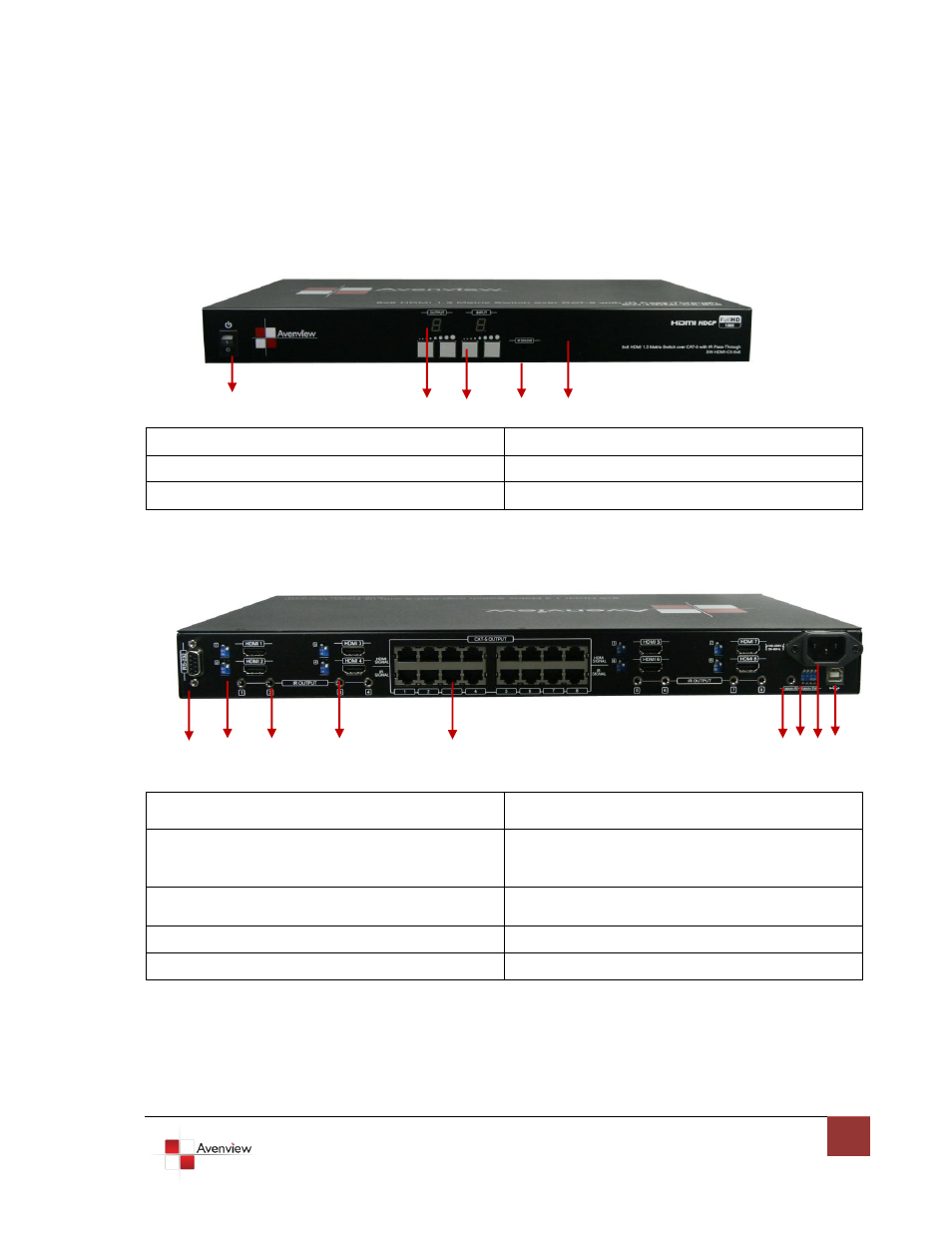

1.7 Panel Description
1.7.1 SW-HDM3D-C5-8X8 Front Panel
1 2 3 4 5
1. Power: Power Control 2. 7 Segment LED Indicators
3. Front Panel Push Buttons 4. IR Sensor
5. Ext. IR: IR Receiver
1.7.2 SW-HDM3D-C5-8X8 Rear Panel
1 2 3 4 5 6 7 8 9
1. RS232
2. SW 1-8: DIP Switches
(See Dip switch Section)
3. IR Pass Through 1 – 8: 3.5mm IR blaster
socket for individual HDMI Source
Control 4. Input 1 – 8: HDMI Inputs
5. Output Ports: 8 RJ-45 TMDS/DDC outputs
for each output channel
6. IR Main: 3.5mm IR Blaster socket for
HDMI Source Control on all 8 Inputs
7. SW Main: DIP Switches 8. AC Power
9. USB: USB Control Port
