Joyce/Dayton Corp
.

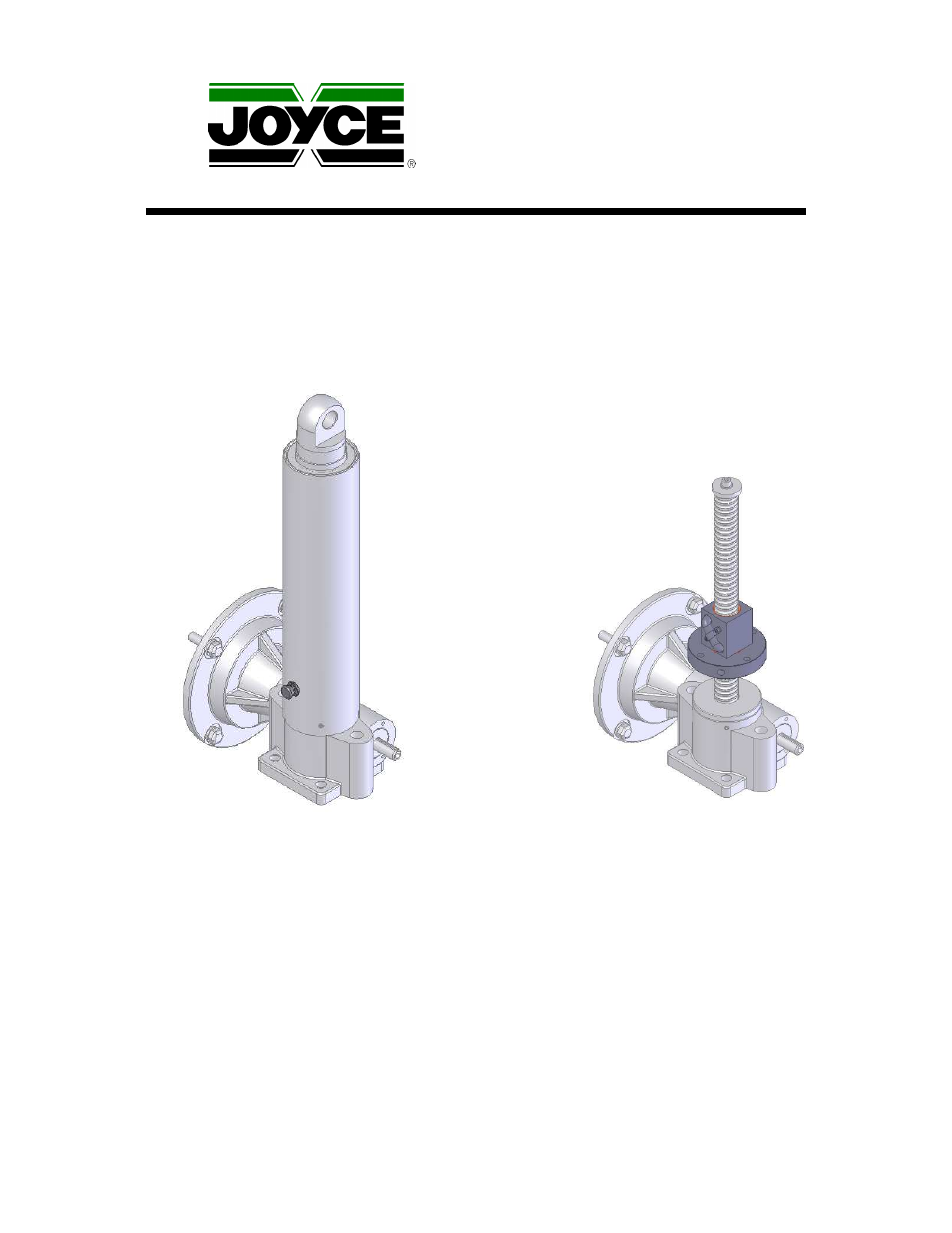

Operation and Maintenance Manual for
Joyce/Dayton Integrated Actuator- Ball Screw
2000 pounds maximum capacity
BIATT/HBIATT BIATN/HBIATN
The recommendations in this manual for installation, operation and maintenance must be followed to
ensure safe use. All persons responsible for the installation and use of Joyce/Dayton Integrated
Actuators must be familiar with the contents of this manual.
Customer is responsible for guards and other protective devices and ensuring that Integrated Actuator
usage conforms with local and national operating and safety codes appropriate to the class of
equipment into which the Integrated Actuator is installed.
©2009 Joyce/Dayton Corp. All rights reserved FB0191-9/09
