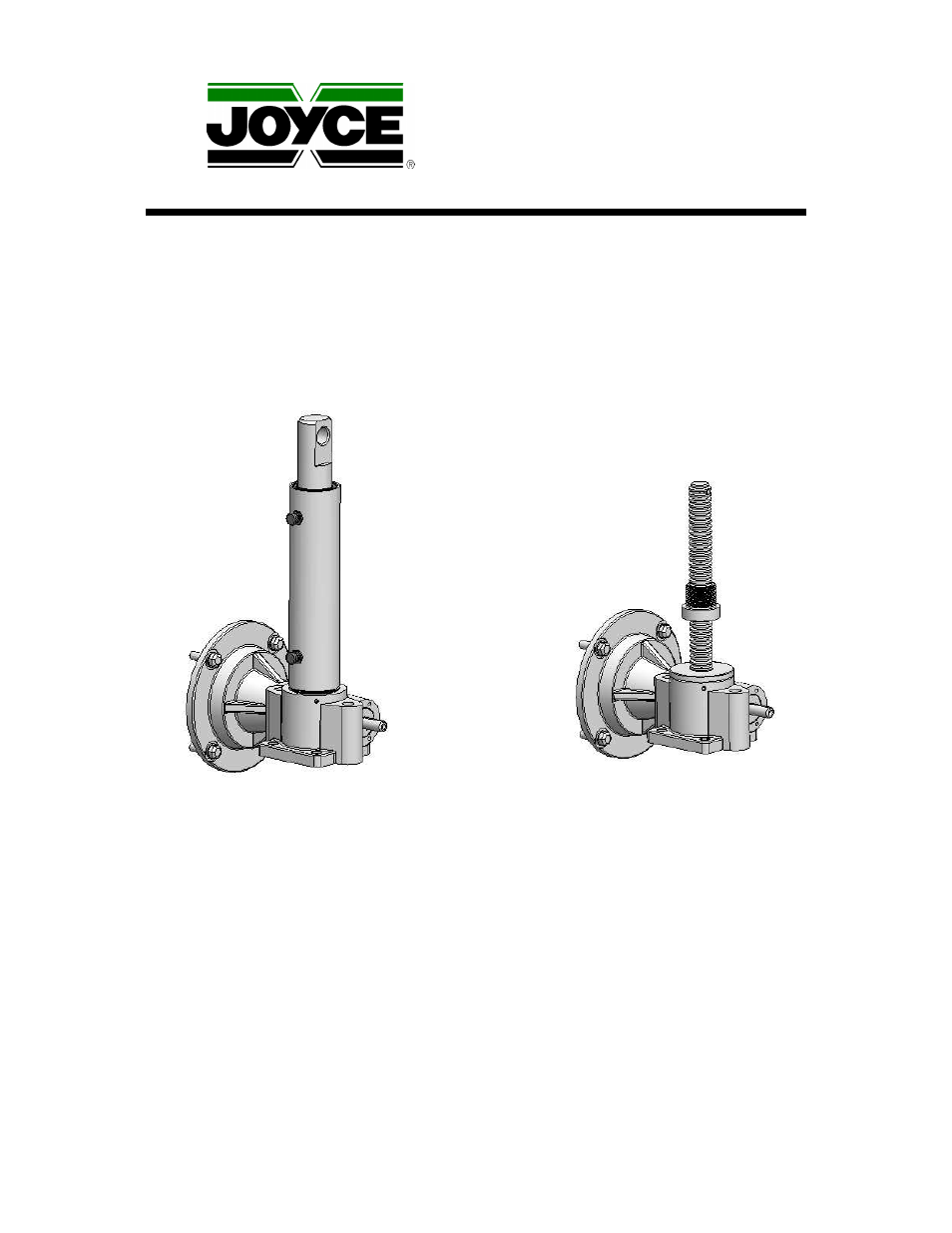

Operation and Maintenance Manual for Joyce Dayton
Integrated Actuator- Acme Screw
Maximum capacity: 2000-pounds
IATT/DIATT
IATN/DIATN
WARNING!
The recommendations in this manual for installation, operation and maintenance must be followed to
ensure safe use. All persons responsible for the installation and use of Joyce Dayton Integrated
actuators must be familiar with the contents of this manual.
Customer is responsible for guards and other protective devices and ensuring that integrated actuator
usage conforms with local and national operating and safety codes appropriate to the class of
equipment into which the integrated actuator is installed.
©2010 Joyce Dayton Corp. All rights reserved FB0190 2/10
