MULTI CHANNEL POWER AMPLIFIER
7 DPA-4300M

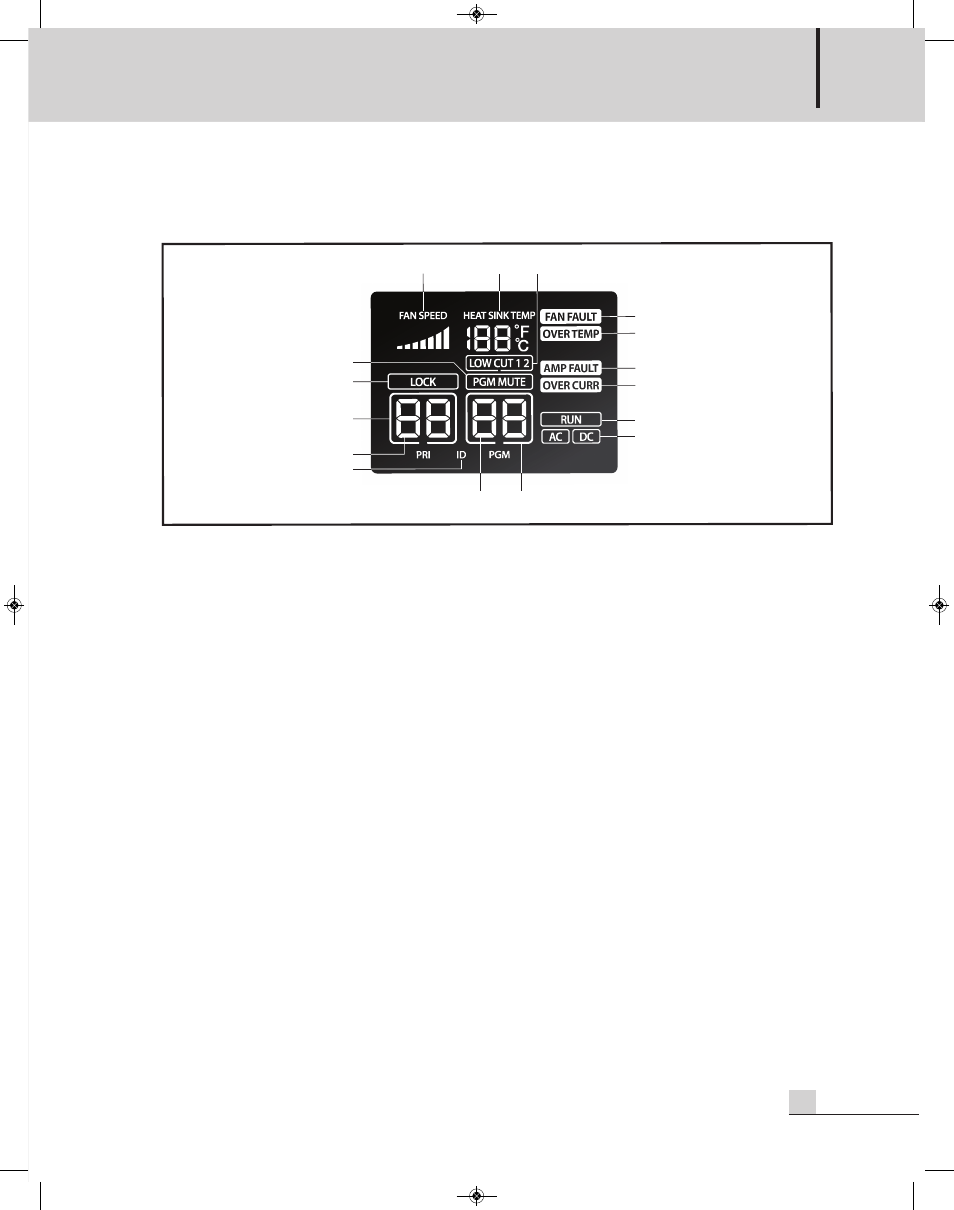

LCD Panel LCD Panel
1. FAN SPEED
It displays the fan speed installed in the rear of each module. Speed will be adjusted automatically
depending on temperatures of amp heat sink.
2. HEAT SINK TEMP
It displays the temperature of amplifier heat sink.
3. LOW CUT (HPF)
It Indicates the HPF switch selections of rear panel. (OFF : OFF, LOW CUT 1 : 200Hz, LOW CUT 2 : 400 Hz)
4. PGM MUTE
It indicates if the PGM volume is in mute.
5. VOLUME LOCK
It indicates the lock status of volume.
6. PRI STATUS BOX
It indicates if PRI, Priority program is selected.
7. PRI VOLUME LEVEL
It indicates the volume value of the PRI, Priority input.
It displays CC when amplifiers are in CASCADE mode.
8. ID
It will be on when checking out the set IP in the front panel.
9. PGM VOLUME LEVEL
It indicates the volume value of PGM input.
It displays BR when amplifiers are in BRIDGE mode.
