Inter-M A-120 - Manual (Page 7)

5 A-60/120
PUBLIC ADDRESS AMPLIFIER

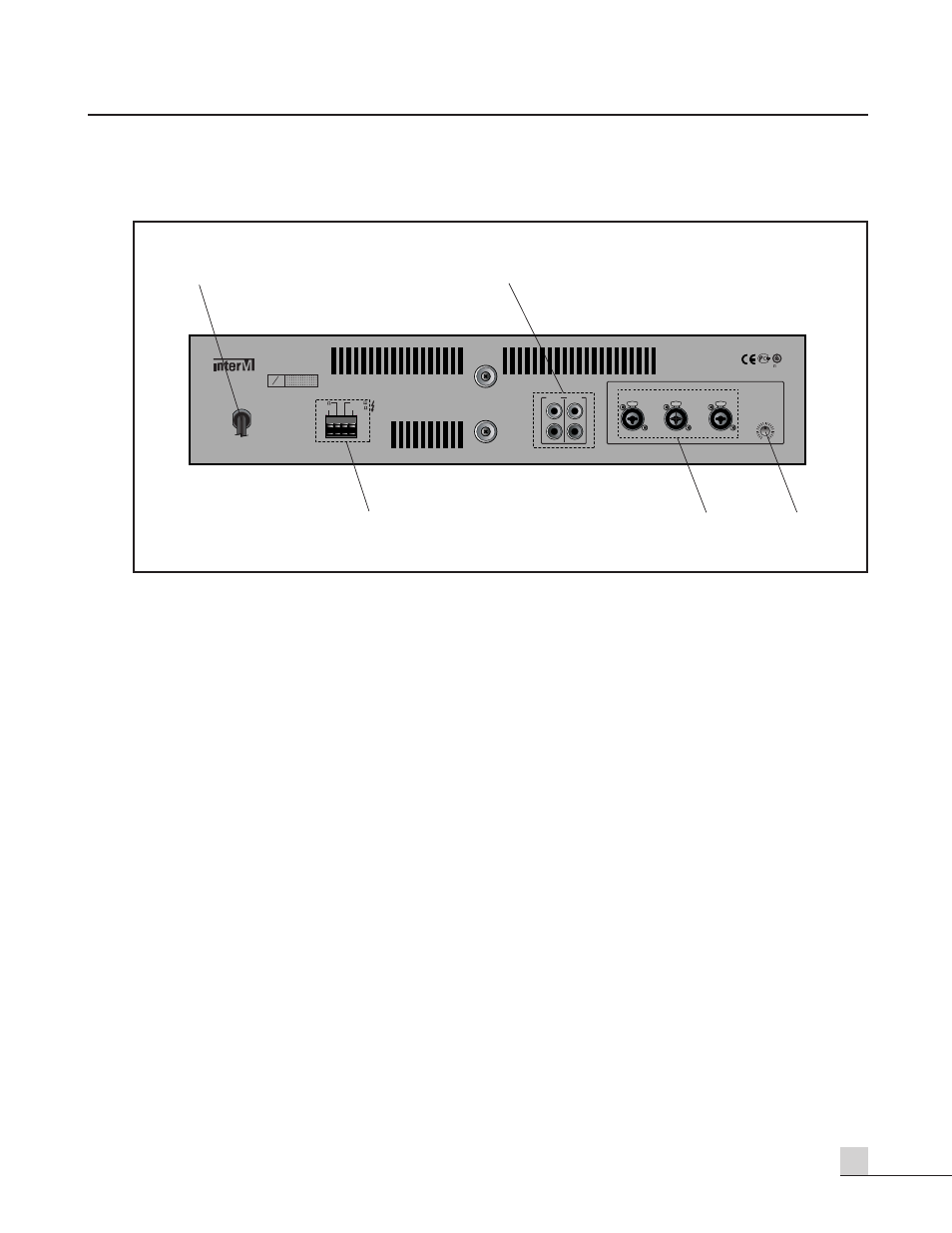

Rear Panel Rear Panel
1. AC POWER
Connect this cable to your AC outlet.
2. AUX INPUTS 1-2
These inputs are used for connecting line-level sources, such as CD, tuner or cassette deck.
3. SPEAKER OUTPUT TERMINALS
These terminals are used to connect speakers to the unit. You may select either 4Ω conventional operation, or
High Impedance operation at either 70V or 100V.
4. MIC 1,2,3 INPUTS
These 1/4” phone jacks accept a standard mic-level input. Input impedance is 600W, and input sensitivity is
0.6mV.
5. PRIORITY MUTE LEVEL
When Mic Input 1 is active, it mutes all other input signals (priority muting). When priority muting is in effect,
this control is used to set the amount of attenuation (how much muting) is applied to the other inputs when a
signal is present on Mic Input 1. The amount of attenuation can range from very little to complete muting.
PUSH PUSH PUSH
1 2
3 4 5
AUX 1 AUX 2
L
R
L
R
MIC 2 MIC 3 MIC 1
MIC 1 MUTE
MIN MAX
WARNING;
~ AC INPUT
230V 50Hz, 75 W
MODEL NO. A-60
PUBLIC ADDRESS AMPLIFIER
TO REDUCE THE RISK OF ELECTRIC SHOCK ,
DO N OT EXPOSE THIS EQUIPMENT TO RAIN OR MOISTURE.
C
70V(83 )
100V(165 ) OM AVIS; RISQUE DE CHOC ELECTRIQUE NE PAS OUVRIR.
CAUTION; TO REDUCE THE RISK OF ELECTRIC SHOCK ,
DO N OT REMOVE COVER. NO USER SERVICEABLE PARTS INSIDE.
OC03 OC03 0 2 1 0
S
N
www.inter-m.com
REFER SERVICING TO Q UALIFIED SERVICE PERSONNEL.
MADE IN KOREA
