SYSTEM REMOTE MIC STATION/12KEY MIC STATION KEYPAD
4 RM-6024/RM-6012KP
Equipment Setting and Checking Equipment Setting and Checking

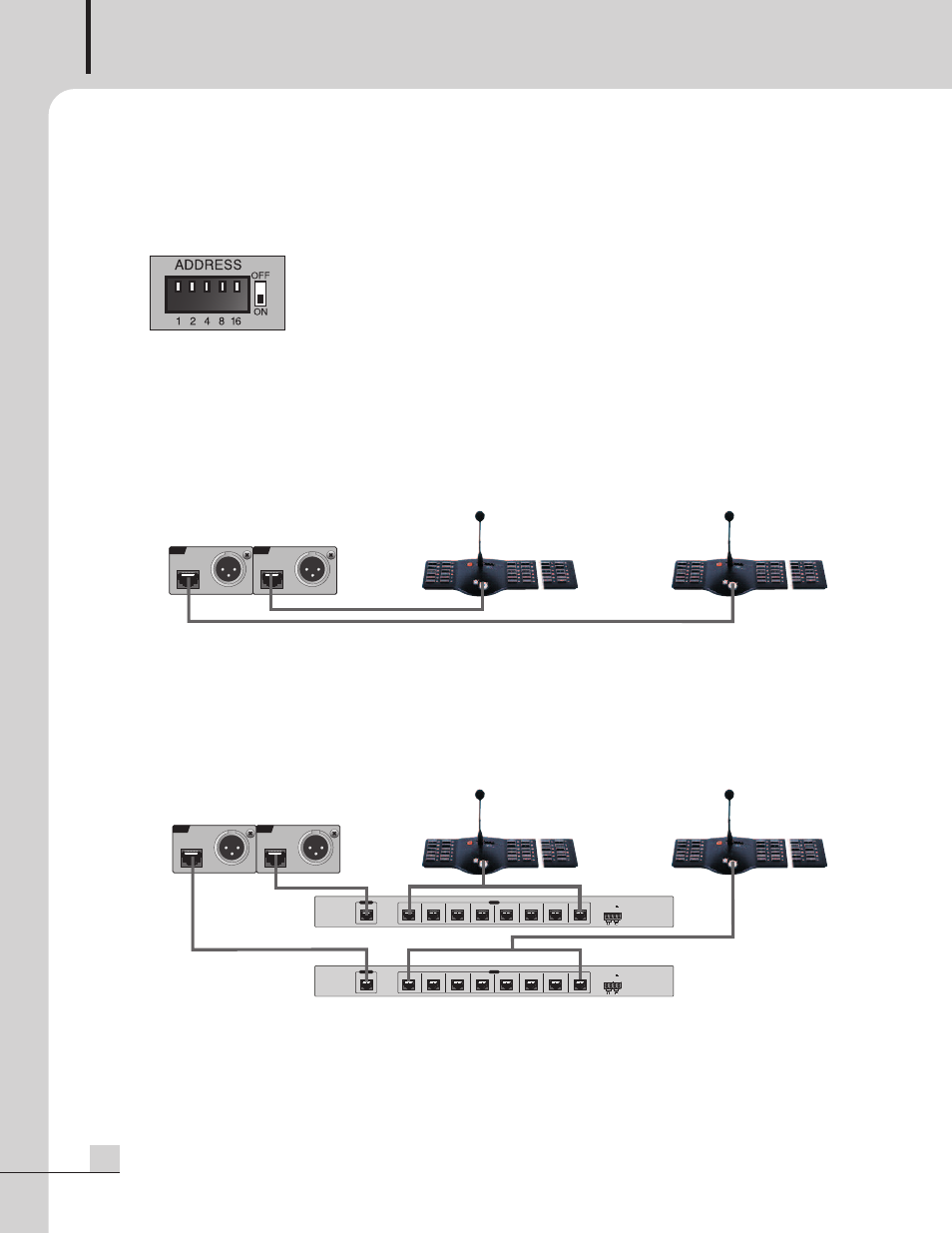

1. Address Switch Setting
1) Set the equipment number utilizing the rear panel DIP switch.
- If the equipment number is not set-up or is incorrect, all Zone Indicator LEDs will blink.
- If the number is already in-use, the FAULT LED will blink.
Please check the equipment number set-up status.
2) When connecting an RM-6024 directly to an ECS-6216P:
- The equipment number for the RM-6024 which is connected to RM1 terminal is labeled as “1”.
- The equipment number for the RM-6024 which is connected to RM2 terminal is labeled as “9”.
3) When connecting remote mics through an RME-6108 to an ECS-6216P:
- Choose numbers 1~8 for those remote mics which are connected to an RME-6108 using the RM1
terminal.
- Choose numbers 9~16 for those remote mics which are connected to an RME-6108 using the RM2
terminal.
If the above conditions are not followed or any number is used more than once, warning LEDs will blink.
RM1
INPUT
AUDIO
OUT
AUDIO
OUT
RM2
INPUT
ECS-6216P
RM-1 RM-2
RM-6024 RM-6024
Set-up to No.9 for
equipment number
Set-up to No.1 for
equipment number
RM1
INPUT
AUDIO
OUT
AUDIO
OUT
RM2
INPUT
ECS-6216P
RME-6108
RME-6108
RM-1 RM-2
RM-6024 RM-6024
Select equipment
number among 9~16.
Select equipment
number among 1~8.
ϊۑ@Ţ۩م@ێԟێ@ۘڽ@Ĉڐ@Ê۾@̝ɜট۩ۉ@کॼێ@ۘںɩ@ ࠭ҿșڽ@ّçǦ@ǷҜθ@ϊݖݖ@ψֲ֫٤N
܆ॄϿࠤ@Z @REMOTE MIC EXTENDER ЂʠϿ@Z RME 6108
܄ÿۖͶ@Z DC 24V, 150mA
܆ܖۜϿ@
Z ďÖݖڜࣶ TEL : 1588 7074
RM 1 RM 2 RM 3 RM 4 RM 5 RM 6 RM 7 RM 8
INPUT OUTPUT
DC 24V
ϊۑ@Ţ۩م@ێԟێ@ۘڽ@Ĉڐ@Ê۾@̝ɜট۩ۉ@کॼێ@ۘںɩ@ ࠭ҿșڽ@ّçǦ@ǷҜθ@ϊݖݖ@ψֲ֫٤N
܆ॄϿࠤ@Z @REMOTE MIC EXTENDER ЂʠϿ@Z RME 6108
܄ÿۖͶ@Z DC 24V, 150mA
܆ܖۜϿ@
Z ďÖݖڜࣶ TEL : 1588 7074
RM 1 RM 2 RM 3 RM 4 RM 5 RM 6 RM 7 RM 8
INPUT OUTPUT DC 24V
