SYSTEM REMOTE MIC STATION/12KEY MIC STATION KEYPAD
9 RM-6024/RM-6012KP

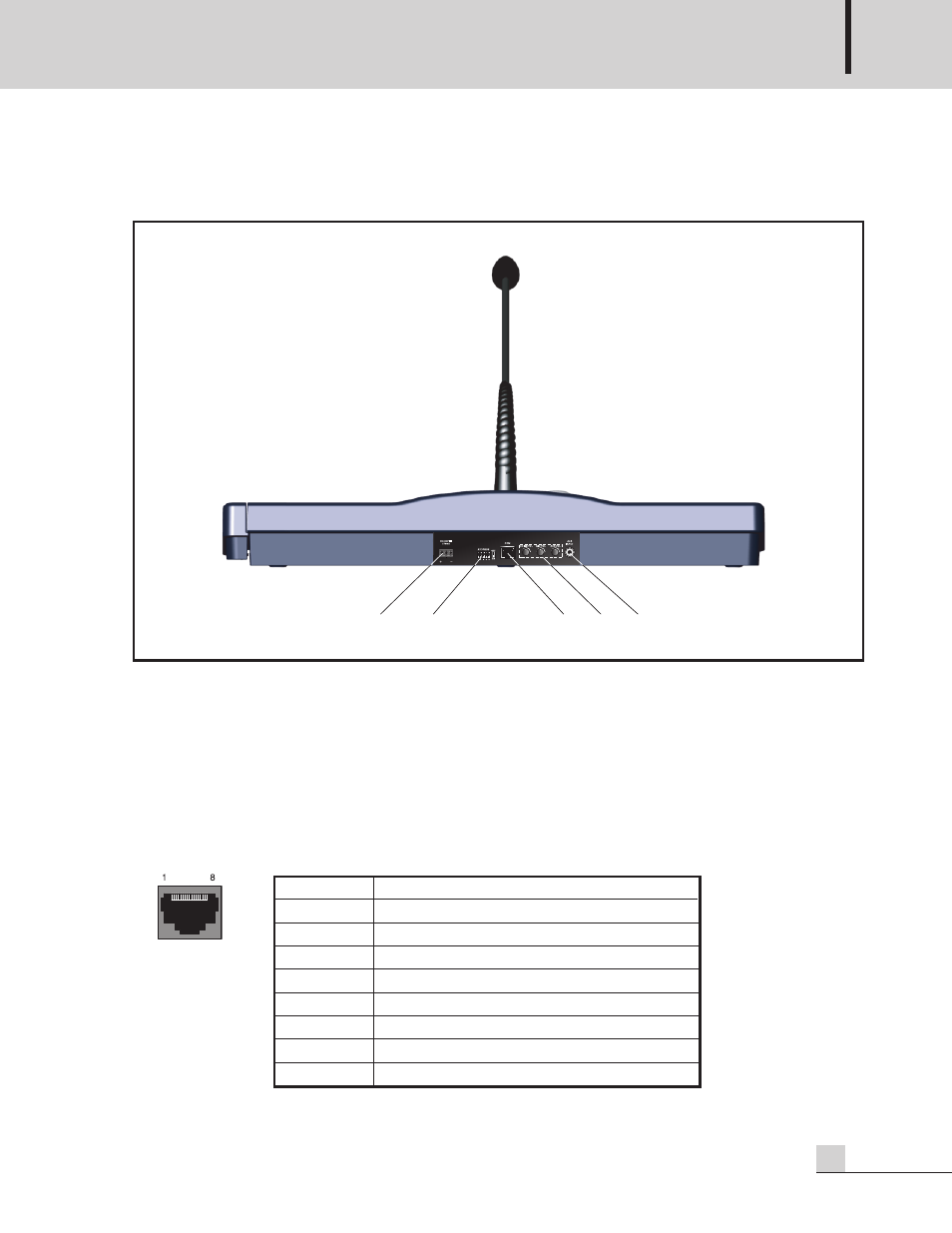

Rear Panel Rear Panel
1. DC INPUT TERMINAL
- Power input terminal. Check polarity before connecting DC 24V.
- When connecting to PD (Power Distributor), connect to unswitched terminal.
2. ADDRESS SWITCH
Sets up the equipment number.
3. DATA & AUDIO TERMINAL (RJ-45)
Transmits the communication DATA and AUDIO signal.
4 5 1 2 3
PIN NO. Functions
1 RS-422 Data - TX+
2 RS-422 Data - TX-
3 RS-422 Data - RX-
4 Live Date
5 GND
6 RS-422 Data - RX+
7 Balanced Audio Output - HOT
8 Balanced Audio Output - COLD
